Piper Cherokee Six - Page 291

I. SPRING
CLIP
2.
TOE BRAKE
PEDAL
3. ARM,
TRIM
CONTROL
ATTACHMENT
4.
CLEVIS
PIN,
WASHER
& COTTER
PIN
5.
CLEVIS
ASSEMBLY
6. CLEVIS PIN
7.
ARM,
IDLER
8.
JAM
NUT
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
1609

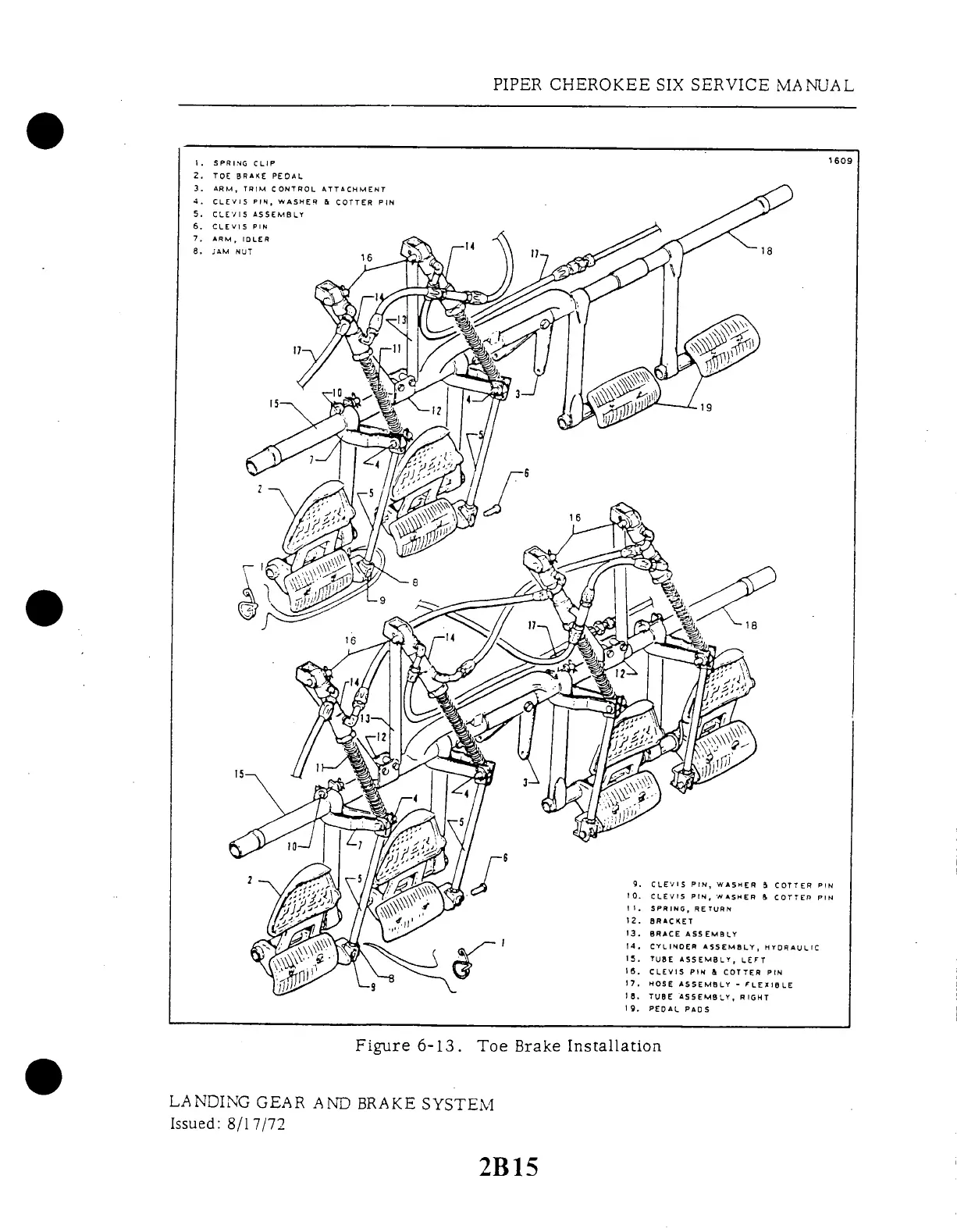

Figure
6-13.
Toe Brake
Installation
LANDING
GEAR
AND
BRAKE
SYSTEM
Issued:
8/17/72
2B15
