PIPER CHEROKEE SIX SERVICE MANUAL
4
I. CAP BOLTS
AND WASHERS
2. SAFETY WIRE
3.
SUPPORT
FITTING
4. BUSHING, SUPPORT FITTING
5. BUSHING
5
6. BOLT, WASHERS, NUT AND COTTER PIN
7.
BOLT, WASHERS, NUT AND COTTER
PIN
8.
AXLE
9. CAP BOLT
10. BUSHING, ROLLER
11. ARM, STEERING
12. BRACKET ALIGNER
13. CAP.
AIR VALVE
14. CORE AIR VALVE
15. BODY, AIR VALVE
16. NUT,
ORIFICE
TUBE
17. SNAP RING
18.
ROLL PIN
19. WASHER, STOP
20.
BUSHING,
UPPER
21. HOUSING, STRUT
22. BUSHING, LOWER
23. OLEO
CYLINDER
24.
LINK. UPPER
TORQUE
25. BOLT, WASHER, BUSHINGS,
NUT AND COTTER PIN
26. LINK, LOWER TORQUE
27.
PIN, BEARING
RETAINING
28. "O" RING
29. BEARING, UPPER TUBE
30. TUBE, ORIFICE
31. PLATE, ORIFICE
32. SNAP
RING
33. "O" RING
34.
BEARING,
LOWER TUBE
35. "O" RING
36. WIPER STRIP
37. WASHER
38. SNAP RING
39. TUBE, PISTON
40.
PISTON
TUBE PLUG
41.
"O"
RING
42.
FORK
43. WASHER --

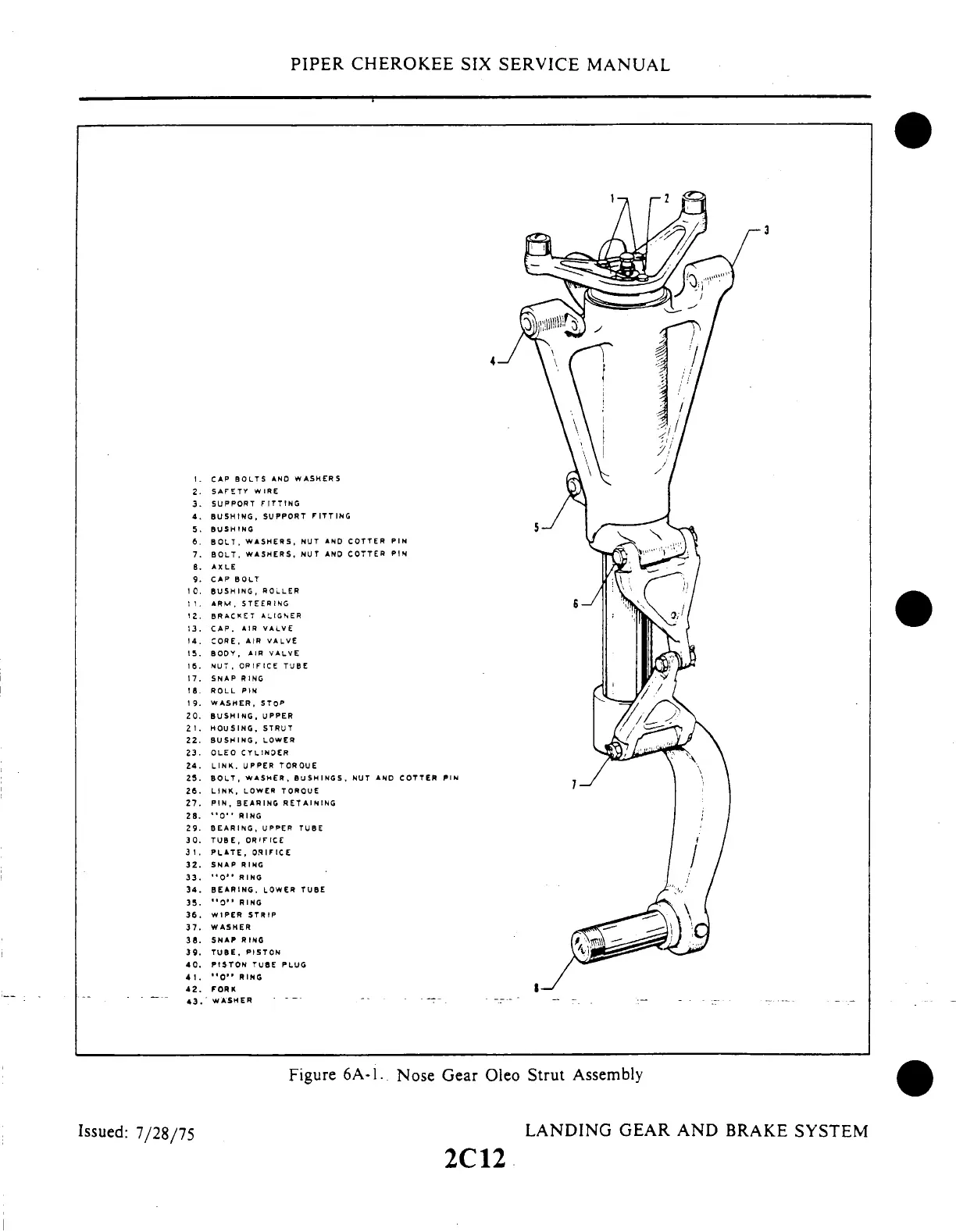

Figure
6A-1. Nose Gear
Oleo Strut Assembly
Issued: 7/28/75 LANDING GEAR AND BRAKE SYSTEM
2C12
