Piper Cherokee Six - Page 316

Fig.
No.
Part No.
1
65003-45
2
87319-03
3
87319-04
4 95061-133
5
95061-134
6 87319-02
7
61402-93
8 67026-07
9
67026-07
10 452-366
11 21831-4
12
82732-99
13 95061-144
14 63900-168
15
82732-95
PIPER
CHEROKEE
SIX SERVICE
MANUAL

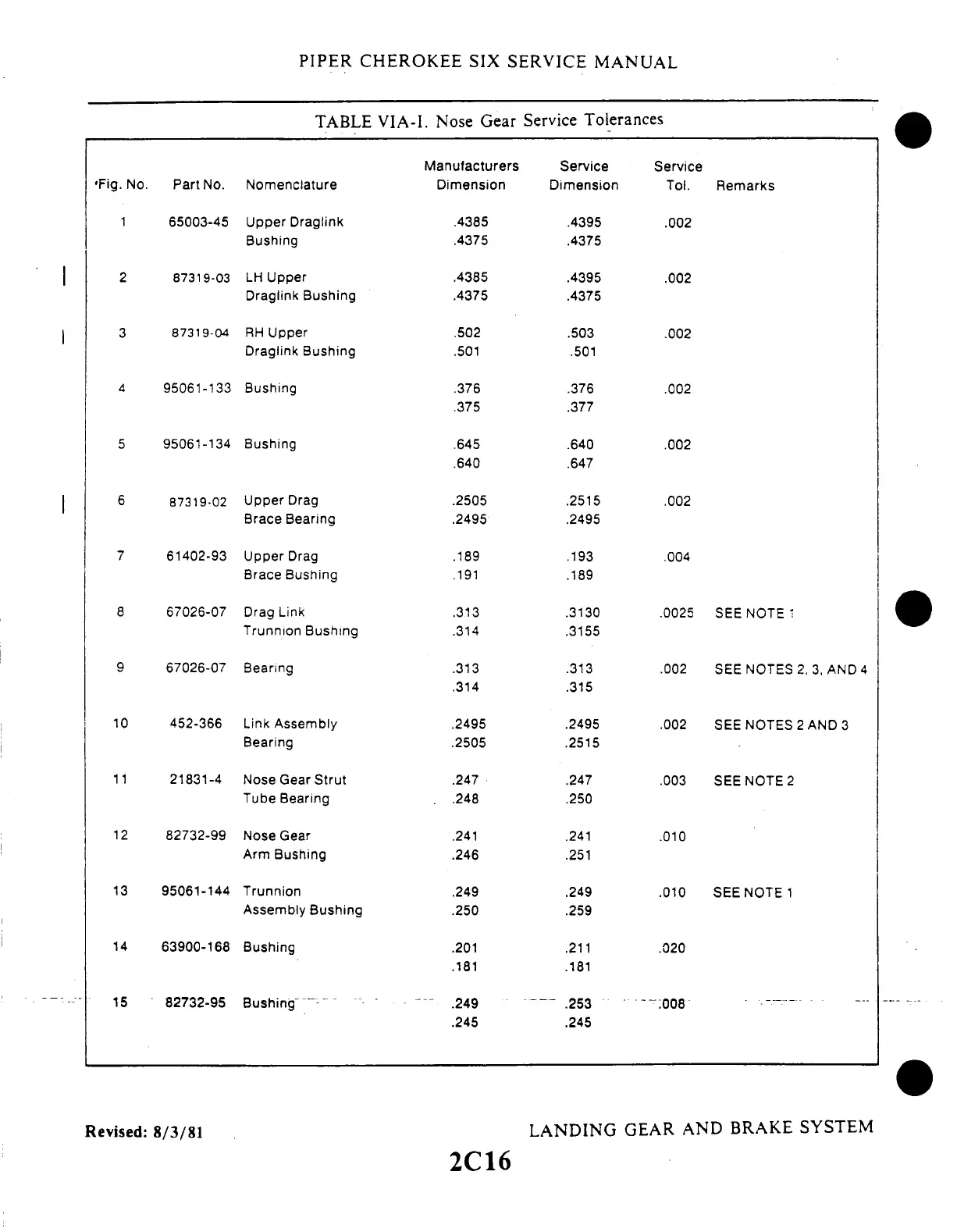

TABLE VIA-I.
Nose Gear Service
Tolerances
Manufacturers
Service
Service
Nomenclature
Dimension
Dimension
Tol.
Upper
Draglink
.4385
.4395
.002
Bushing
.4375
.4375
LH Upper
.4385
.4395
.002
Draglink
Bushing
.4375
.4375
RH
Upper
.502
.503
.002
Draglink
Bushing
.501
.501
Bushing
.376
.376
.002
.375 .377
Bushing
.645
.640
.002
.640 .647
Upper Drag
.2505
.2515
.002
Brace Bearing
.2495
.2495
Upper Drag
.189
.193 .004
Brace Bushing
.191
.189
Drag Link
.313
.3130
.0025
Trunnion
Bushing
.314
.3155
Bearing
.313
.313
.002
.314 .315
Link Assembly
.2495
.2495
.002
Bearing
.2505
.2515
Nose Gear Strut
.247 .247
.003
Tube Bearing
.248 .250
Nose Gear
.241
.241 .010
Arm Bushing
.246
.251
Trunnion
.249
.249
.010
Assembly
Bushing
.250
.259
Bushing
.201
.211
.020
.181 .181
Bushing
-
.249
.253
.008
.245 .245
Remarks
SEE NOTE 1
SEE NOTES 2, 3, AND 4
SEE NOTES 2 AND 3
SEE
NOTE
2
SEE NOTE 1
Revised:
8/3/81
LANDING
GEAR AND BRAKE
SYSTEM
2C16
