PIPER
CHEROKEE SIX
SERVICE MANUAL

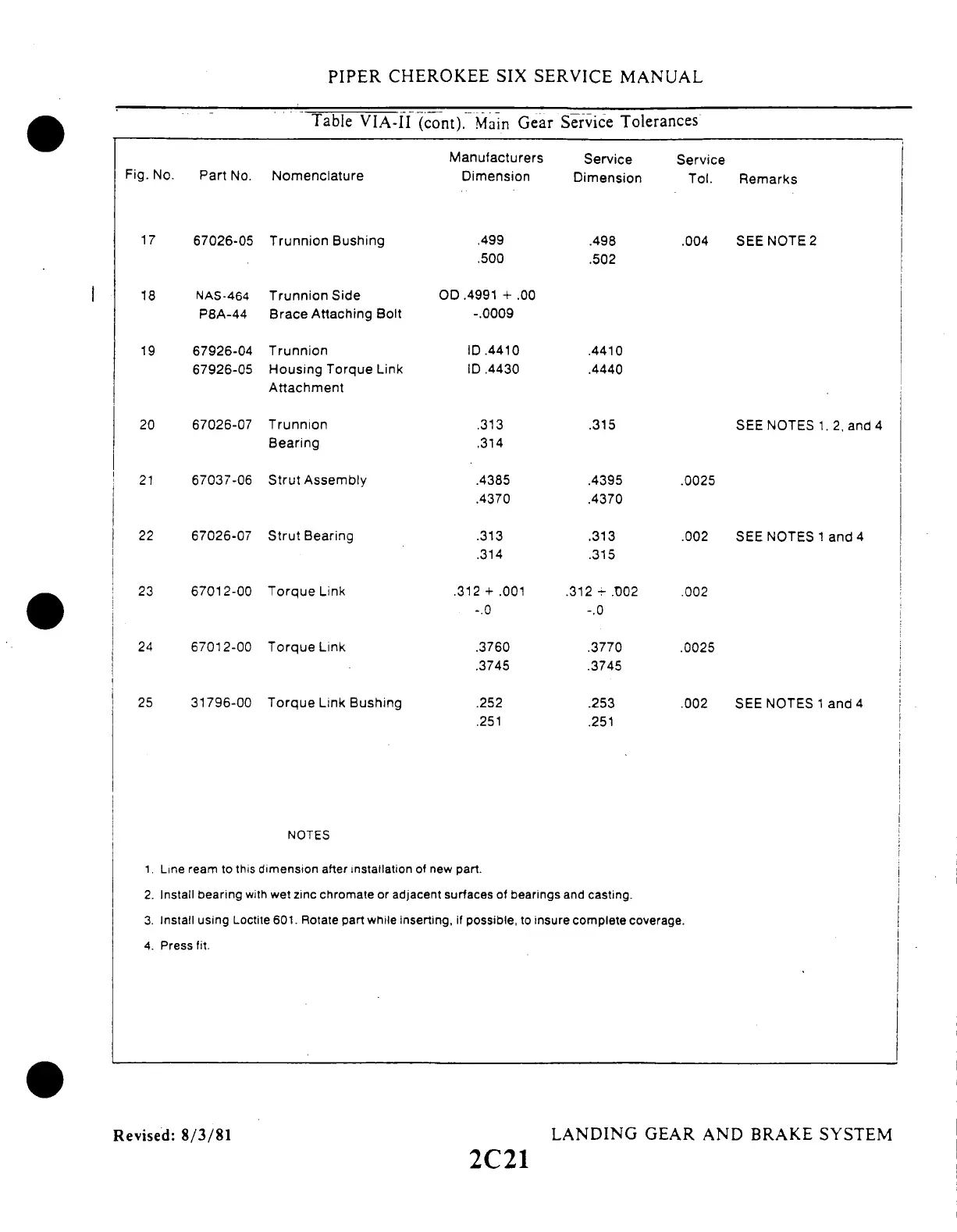

Table
VIA-II (cont). Main
Gear Service Tolerances
Manufacturers
Service
Service
Fig.
No.
Part
No.
Nomenclature
Dimension
Dimension
Tol.
NOTES
1. Line ream to this dimension after installation of new part.
2. Install bearing with wet zinc chromate or adjacent surfaces of bearings and casting.
3. Install
using Loctite 601. Rotate part while
inserting, if possible, to insure complete
coverage.
4. Press fit.
Remarks
17
67026-05
18
NAS-464
P8A-44
19 67926-04
67926-05
20 67026-07
21
67037-06
22 67026-07
23 67012-00
24 67012-00
25 31796-00
Trunnion
Bushing
Trunnion Side
Brace
Attaching
Bolt
Trunnion
Housing Torque Link
Attachment
Trunnion
Bearing
Strut Assembly
Strut Bearing
Torque Link
Torque Link
Torque Link Bushing
.499
.500
OD.4991 + .00
-.0009
ID.4410
ID.4430
.313
.314
.4385
.4370
.313
.314
.312 + .001
-. 0
.3760
.3745
.252
.251
.498
.502
.4410
.4440
.315
.4395
.4370
.313
.315
.312 - .002
-.0
.3770
.3745
.253
.251
.004 SEE NOTE 2
SEE
NOTES 1.2,
and 4
.0025
.002
SEE NOTES
1 and 4
.002
.0025
.002 SEE NOTES 1 and 4
Revised: 8/3/81
LANDING GEAR
AND BRAKE
SYSTEM
2C21
