PIPER
CHEROKEE
SIX
SERVICE
MANUAL
1614
1.
DOOR.
GEAR
2. SPRING
3. ARM
4. LINK
ASSEMBLY
5.
STRIKER
9.
ADJUSTMENT
BOLT
6. CHANNEL
ASSEMBLY
10. JAM
NUT
7.
SUPPORT
ASSEMBLY
8.
PIN, HINGE

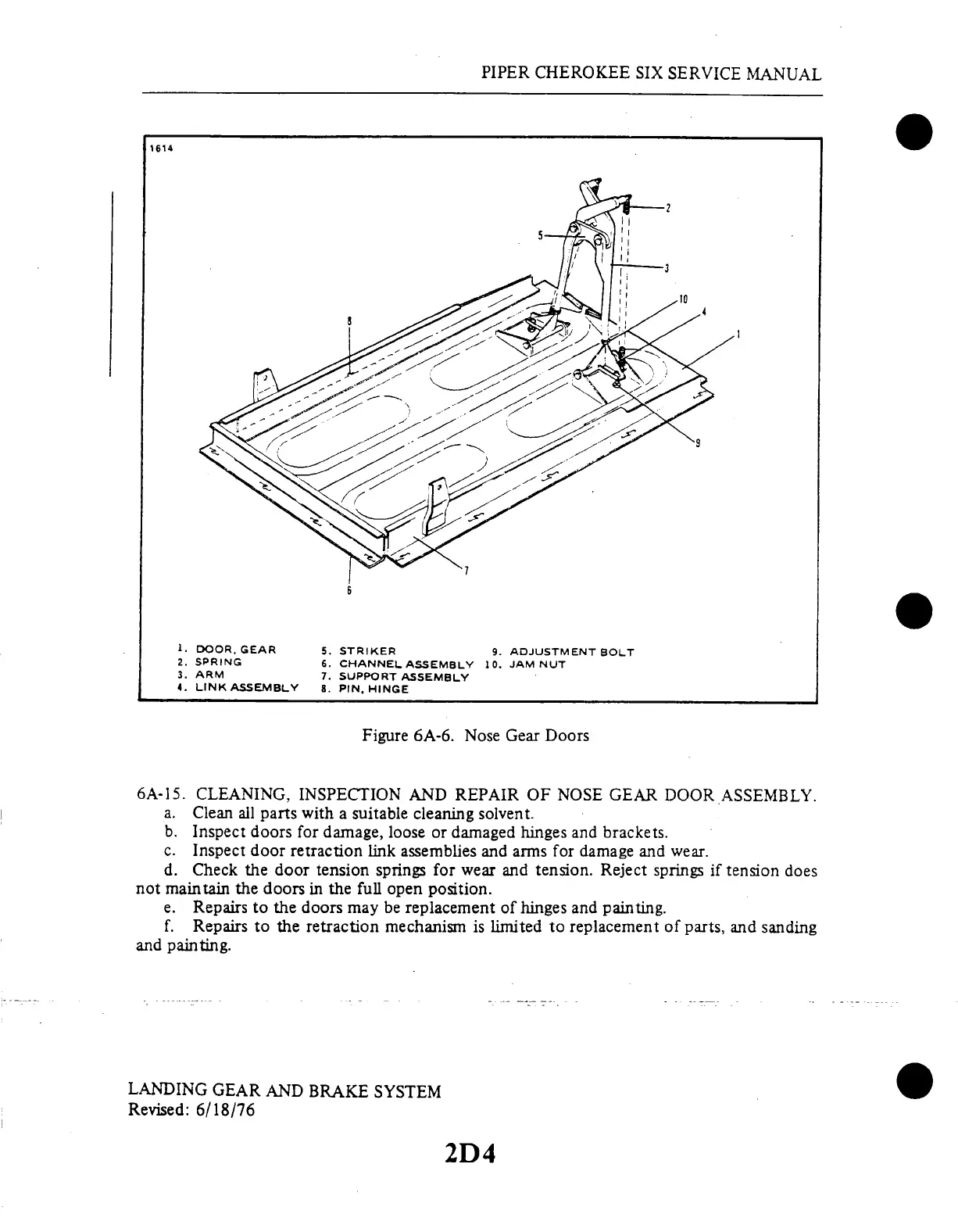

Figure
6A-6.
Nose
Gear
Doors
6A-15.
CLEANING.
INSPECTION
AND
REPAIR
OF
NOSE
GEAR
DOOR
ASSEMBLY.
a.
Clean all
parts
with a
suitable
cleaning
solvent.
b. Inspect
doors
for damage,
loose
or damaged
hinges
and brackets.
c. Inspect
door
retraction
link assemblies
and
arms for
damage and
wear.
d.
Check
the door
tension
springs for
wear and
tension.
Reject
springs if
tension
does
not
maintain
the
doors
in the
full open
position.
e.
Repairs
to
the doors
may
be replacement
of hinges
and
painting.
f.
Repairs
to the retraction
mechanism
is limited
to replacement
of parts,
and sanding
and
painting.
LANDING
GEAR
AND
BRAKE
SYSTEM
Revised:
6/18/76
2D4
