ON McCAULEY
NOSE
WHEEL
ASSEMBLIES
ONLY,
BUSHING
(19)
IS
REQUIRED
TO
PREVENT
TUBE
MOVEMENT.
19
17
PIPER
CHEROKEE SIX
SERVICE MANUAL
NOTE
1. SNAP
RING
2. RING,
GREASE RETAINER
3. FELT RING
4, RING. GREASE SEAL
5. BEARING CUP
6.
BEARING
CONE
7. WHEEL HALF
8.
NUT
9. WASHER
10. WHEEL HALF
II. BEARING
CUP
12.
BEARING
CONE
13. RING,
GREASE
SEAL
14. FELT RING
15. RING.
GREASE RETAINER
16. SNAP
RING
17. WASHER
18.
BOLT
19. RUBBER BUSHING
II
12
13
16
14

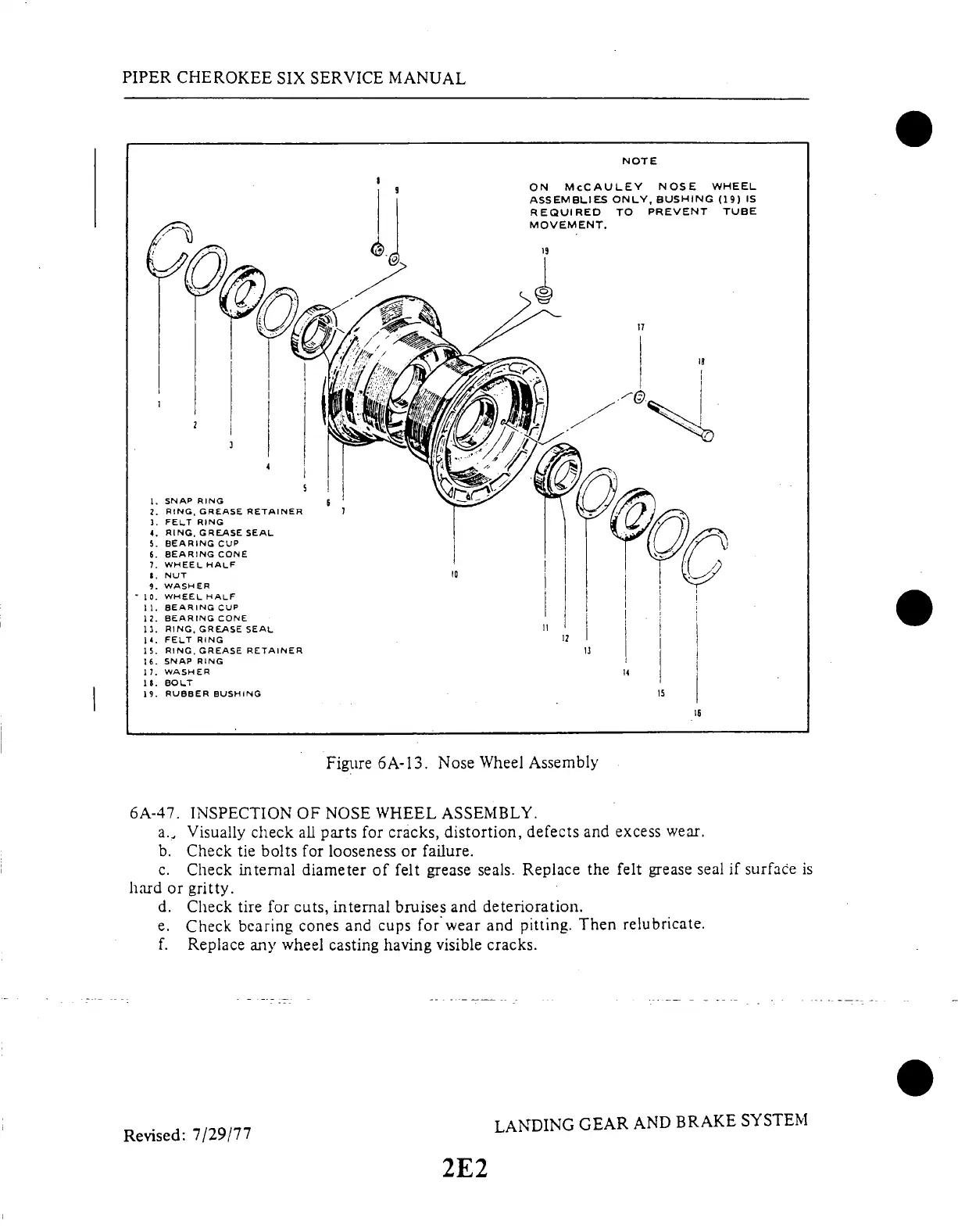

Figure
6A-13.
Nose
Wheel
Assembly
6A-47.
a.,
b.
c.
hard or
d.
e.
f.
INSPECTION
OF NOSE WHEEL
ASSEMBLY.
Visually
check
all parts
for cracks,
distortion,
defects
and excess
wear.
Check
tie bolts
for looseness
or
failure.
Check
internal
diameter of
felt grease
seals. Replace
the felt
grease seal if
surface is
gritty.
Check tire
for cuts, internal
bruises
and deterioration.
Check
bearing
cones
and
cups
for
wear
and
pitting.
Then
relubricate.
Replace
any wheel casting
having visible cracks.
LANDING
GEAR
AND
BRAKE
SYSTEM
Revised:
7/29/77
2E2
