PIPER
CHEROKEE
SIX
SERVICE
MANUAL
Indicator
light
ground
incomplete.
Indicator
light
circuit
wire broken.
Indicator
light circuit
breaker
open.

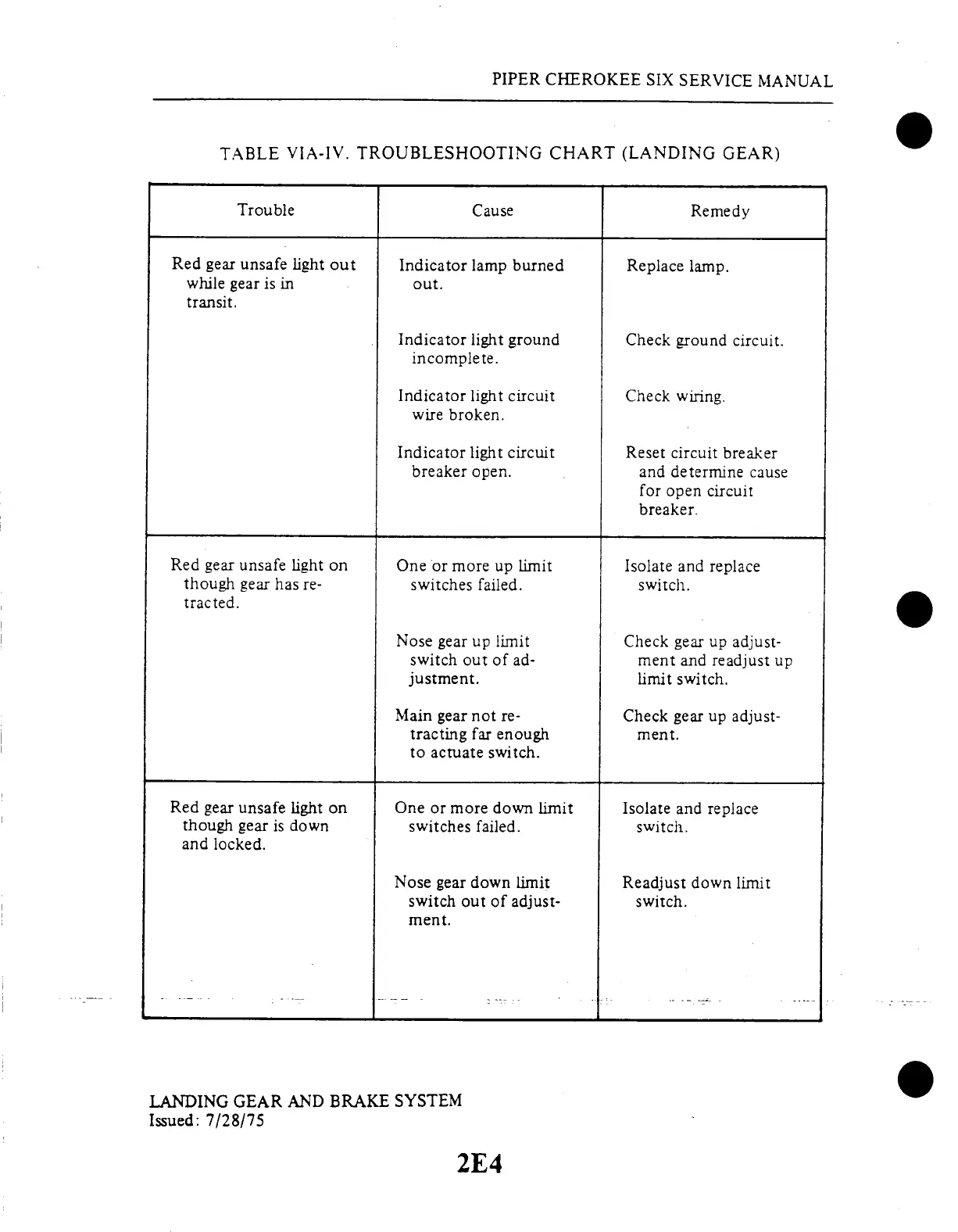

TABLE
VIA-IV.
TROUBLESHOOTING
CHART
(LANDING
GEAR)
Trouble
Cause Remedy
Red gear unsafe
light
out
while
gear
is in
transit.
Indicator
lamp
burned
out.
Replace lamp.
Check
ground circuit.
Check
wiring.
Reset
circuit
breaker
and determine
cause
for
open
circuit
breaker.
Red gear
unsafe
light on
though
gear
has re-
tracted.
One or
more up
limit
switches
failed.
Isolate
and
replace
switch.
Nose
gear
up limit
switch out of ad-
justment.
Main
gear
not re-
tracting
far
enough
to actuate
switch.
Check gear
up adjust-
ment and
readjust
up
limit
switch.
Check
gear
up adjust-
ment.
Red
gear unsafe
light
on
though
gear is down
and locked.
One or
more down
limit
switches
failed.
Isolate
and replace
switch.
Nose
gear down
limit
switch
out of
adjust-
ment.
Readjust
down
limit
switch.
LANDING GEAR AND BRAKE SYSTEM
Issued: 7/28/75
2E4
