PIPER
CHEROKEE
SIX
SERVICE
MANUAL

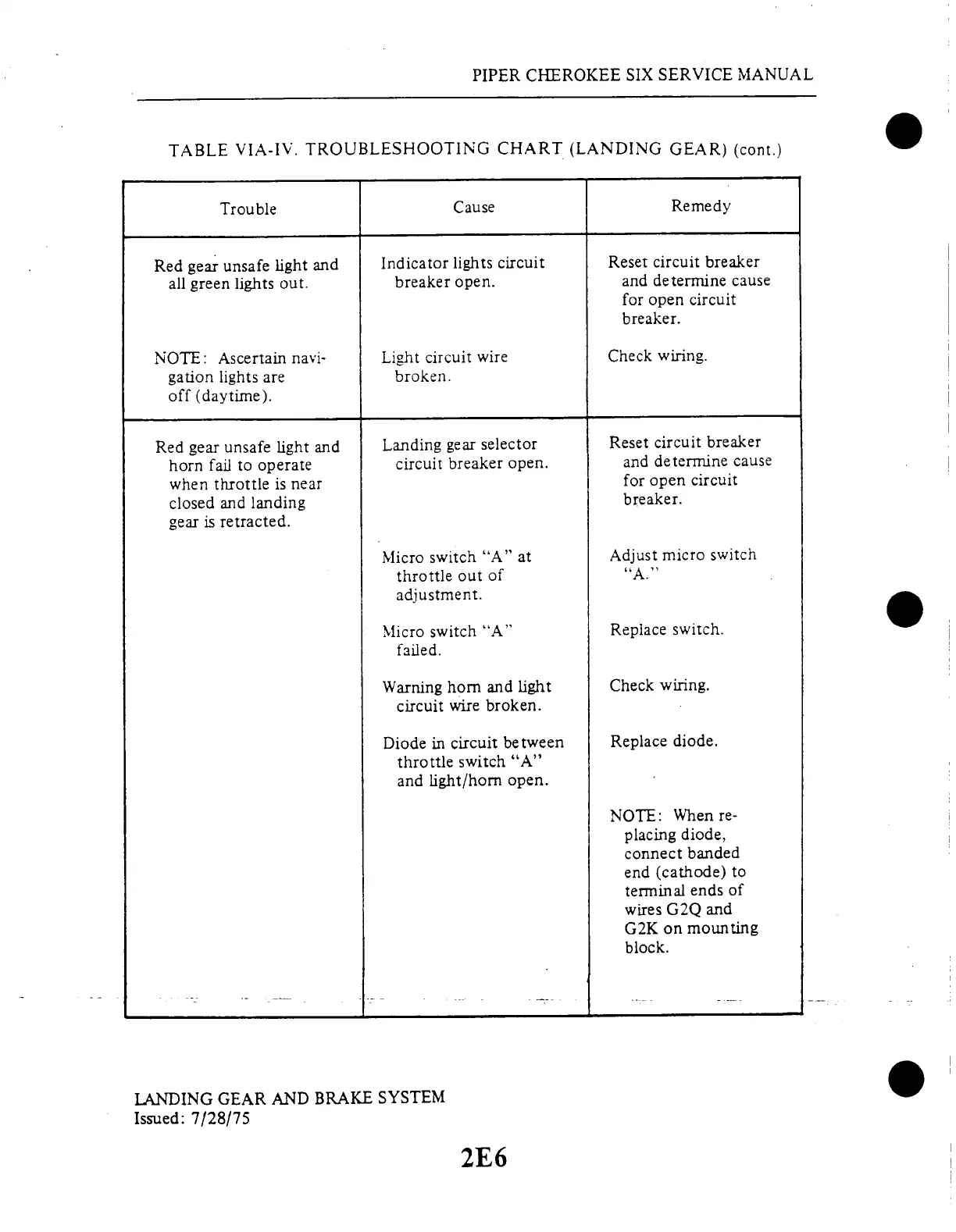

TABLE
VIA-IV.
TROUBLESHOOTING
CHART
(LANDING
GEAR)
(cont.)
Trouble
Cause
Remedy
Red
gear
unsafe
light
and
all
green
lights out.
NOTE:
Ascertain
navi-
gation
lights
are
off (daytime).
Red gear
unsafe
light
and
horn
fail
to operate
when
throttle is
near
closed
and
landing
gear
is retracted.
Indicator
lights
circuit
breaker
open.
Light
circuit
wire
broken.
Landing
gear
selector
circuit
breaker
open.
Reset circuit
breaker
and
determine
cause
for
open
circuit
breaker.
Check
wiring.
Reset
circuit
breaker
and
determine
cause
for
open
circuit
breaker.
Micro
switch
"A"
at
throttle
out of
adjustment.
Micro
switch
"A"
failed.
Warning
horn
and
light
circuit
wire
broken.
Diode
in circuit
between
throttle
switch
"A"
and
light/horn
open.
Adjust
micro
switch
"A."
Replace
switch.
Check
wiring.
Replace
diode.
NOTE:
When
re-
placing
diode,
connect
banded
end
(cathode)
to
terminal
ends
of
wires G2Q and
G2K
on
mounting
block.
LANDING
GEAR
AND
BRAKE
SYSTEM
Issued:
7/28/75
2E6
