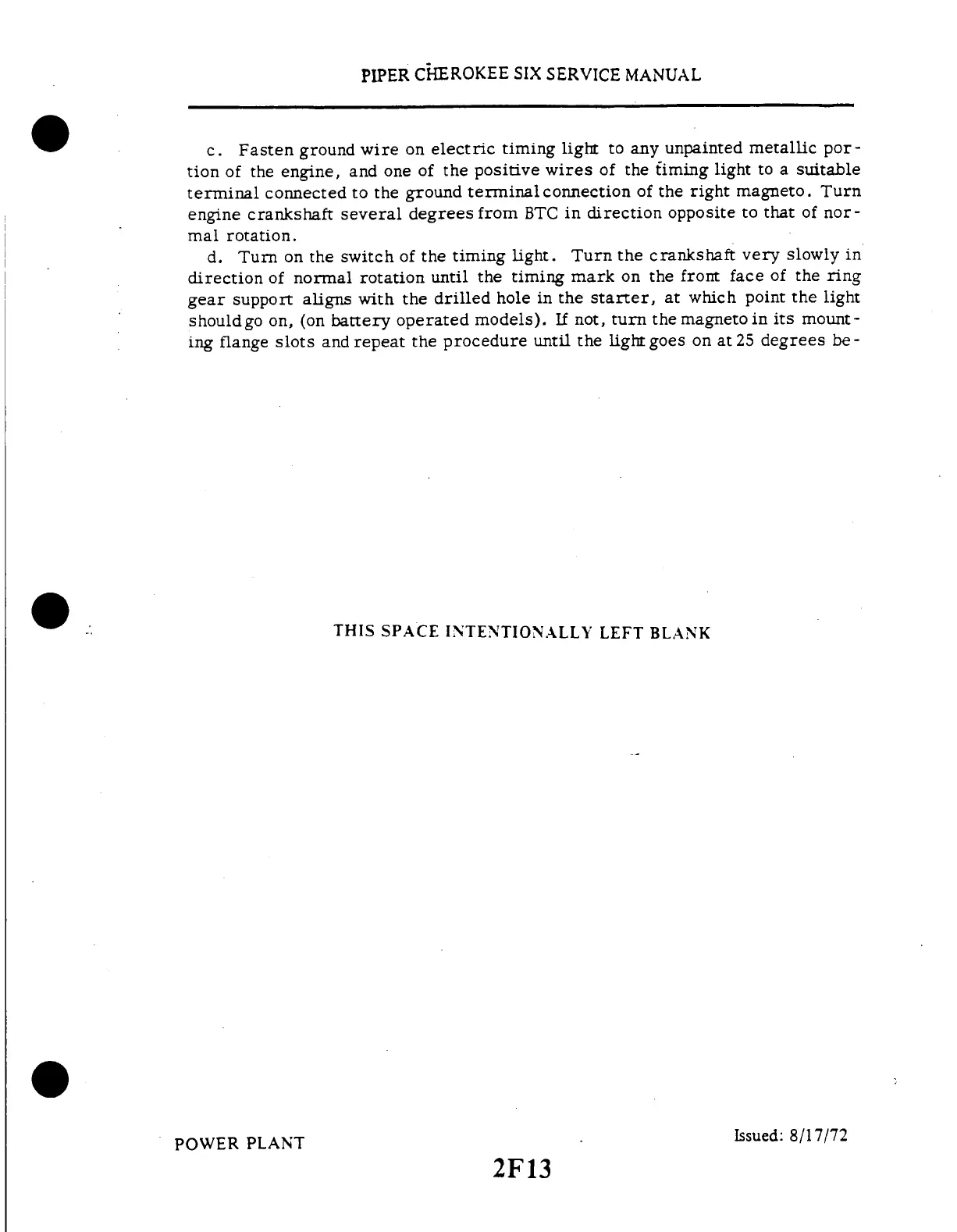

Piper Cherokee Six - Page 385

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
c.
Fasten
ground
wire
on electric
timing
light
to
any
unpainted
metallic
por-
tion of
the engine,
and
one
of the
positive
wires
of the
fiming
light
to a suitable
terminal
connected
to
the ground
terminal
connection
of
the
right
magneto.
Turn
engine
crankshaft
several
degrees
from
BTC
in direction
opposite
to that
of nor-
mal rotation.
d.
Turn
on the
switch
of the
timing
light.
Turn
the
crankshaft
very
slowly
in
direction
of normal
rotation
until
the timing
mark
on
the front
face
of the
ring
gear
support
aligns
with
the drilled
hole
in the
starter,
at
which
point
the
light
shouldgo
on,
(on battery
operated
models).
If
not, turn
the
magneto
in its
mount-
ing
flange
slots
and
repeat
the procedure
until
the
light
goes
on at
25 degrees
be-
