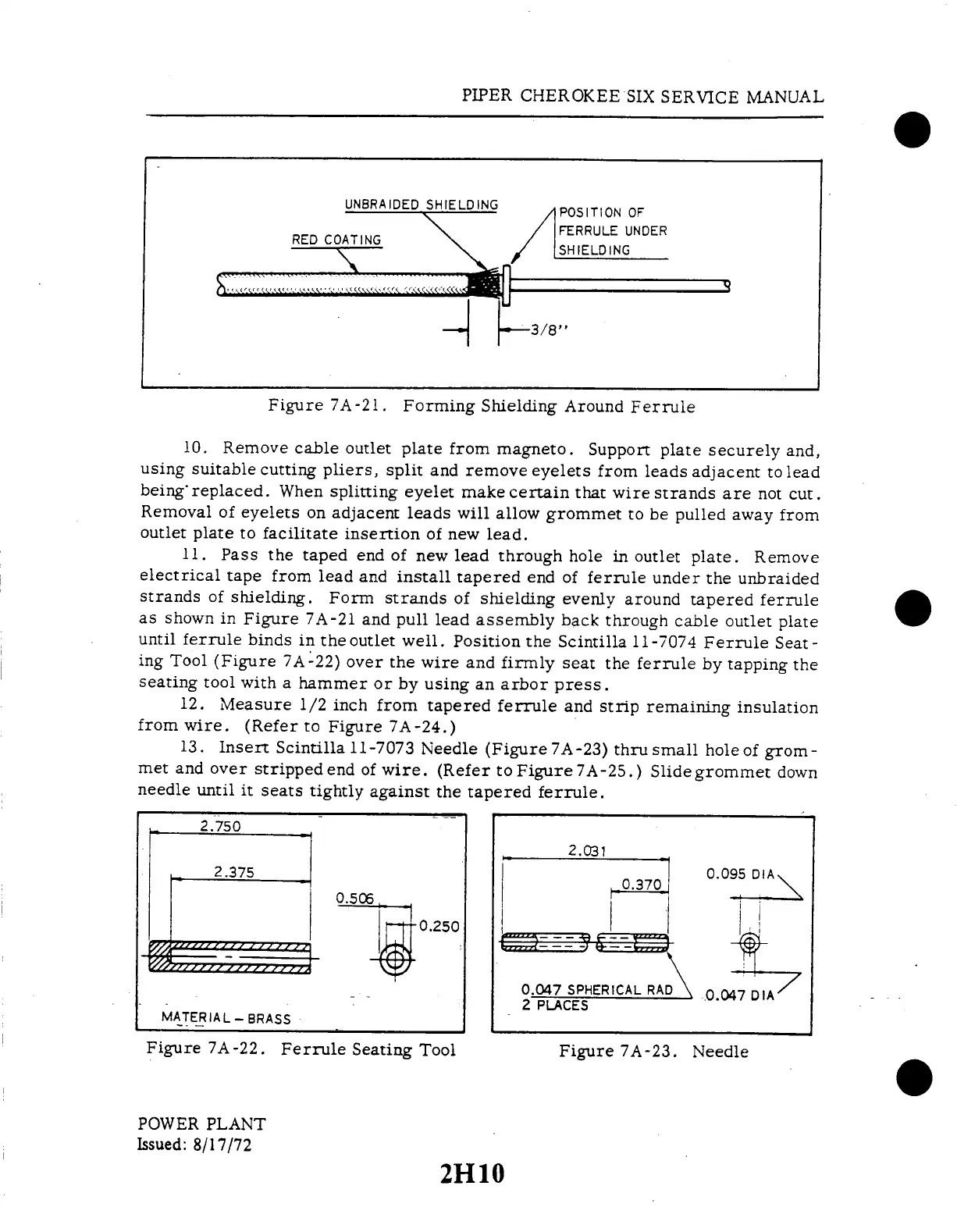

Figure
7A-22.
Ferrule
Seating
Tool
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
POSITION
OF
FERRULE UNDER
RED
COATING
SHIELDING
3/8"
Figure
7A-21.
Forming
Shielding
Around
Ferrule
10.
Remove
cable
outlet
plate
from
magneto.
Support
plate
securely
and,
using
suitable
cutting
pliers,
split
and
remove
eyelets
from
leads
adjacent
to
lead
being
replaced.
When
splitting
eyelet
make
certain
that
wire
strands
are
not
cut.
Removal
of
eyelets
on
adjacent
leads
will
allow
grommet
to be
pulled
away
from
outlet
plate
to facilitate
insertion
of
new
lead.
11.
Pass
the
taped
end
of
new
lead
through
hole
in
outlet
plate.
Remove
electrical
tape
from
lead
and
install
tapered
end
of
ferrule
under
the
unbraided
strands
of
shielding.
Form
strands
of
shielding
evenly
around
tapered
ferrule
as
shown
in
Figure
7A-21
and
pull
lead
assembly
back
through
cable
outlet
plate
until
ferrule
binds
in the
outlet
well.
Position
the
Scintilla
11-7074
Ferrule
Seat-
ing
Tool
(Figure
7A-22)
over
the
wire
and
firmly
seat
the
ferrule
by
tapping
the
seating
tool
with
a
hammer
or
by
using
an
arbor
press.
12.
Measure
1/2
inch
from
tapered
ferrule
and
strip
remaining
insulation
from
wire.
(Refer
to
Figure
7A-24.)
13.
Insert
Scintilla
11-7073
Needle
(Figure
7A-23)
thru
small
hole
of grom-
met
and
over
stripped
end
of
wire.
(Refer
to Figure
7A-25.)
Slidegrommet
down
needle
until
it
seats
tightly
against
the
tapered
ferrule.
2.031
0.370
0.047
SPHERICAL
RAD
2 PLACES
0.095
DIA
0.047 DIA
Figure
7A-23.
Needle
POWER
PLANT
Issued:
8/17/72
2H10
