Piper Cherokee Six - Page 493

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
2607
1.
MASTER
SWITCH
2.
ACCESSORY
SWITCHES
3. RADIO
COMPASS
4. CLOCK
5. TURN
COORDINATOR
6.
AIRSPEED
INDICATOR
7.
DIRECTIONAL
GYRO
8.
ARTIFICIAL
HORIZON
9.
RATE
OF
CLIMB
INDICATOR
10.
ALTIMETER
11.
MARKER
BEACON
LIGHTS
12.
GLIDESLOPE
INDICATOR
13.
OMNI
BEARING
HEAD
14.
RADIO
SELECTOR
PANEL
15.
MAGNETIC
COMPASS
16.
NAV/COMM
TRANSCEIVERS
17.
TRANSPONDER
18.
ADF
RADIO
19. DME
20. LIGHTER
22.
ENGINE
GAUGES
23.
NAV
COUPLER
24.
PITCH
TRIM
SWITCH
25.
MAGNETO
&
STARTER
SWITCH
26.
MANIFOLD
PRESSURE
27.
FUEL
INDICATOR
28.
TACHOMETER
29.
PRIMER
30.
POWER
CONTROL
QUADRANT
31.
CARBURETOR
HEAT
32.
NAV
&
INSTRUMENT
LIGHTS
33.
MIXTURE
INDICATOR
34.
GYRO
SUCTION
GAUGE
35.
CIRCUIT
BREAKERS
36.
HEAT
&
DEFROSTER
CONTROLS

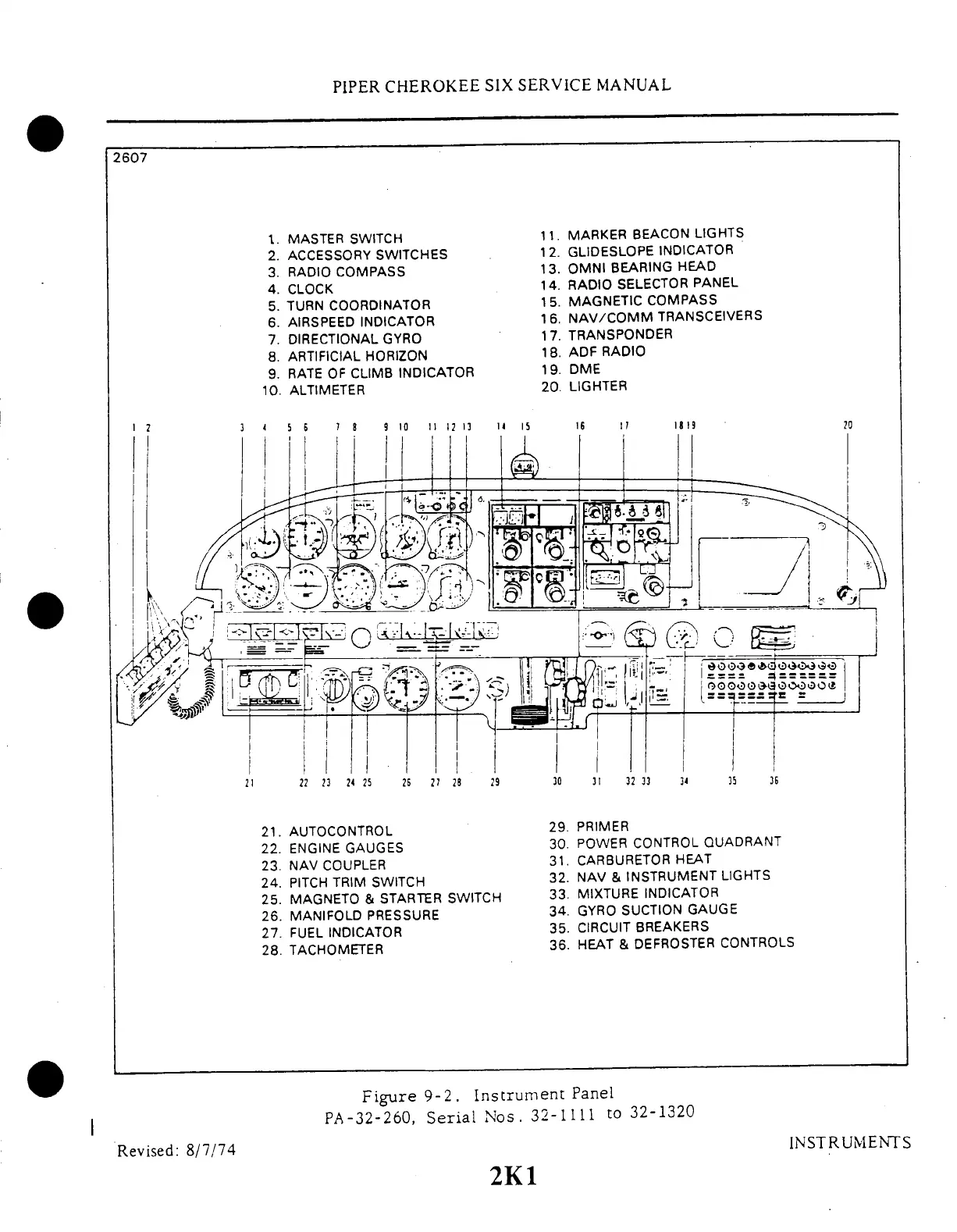

Figure
9-2.
Instrument
Panel
PA-32-260,
Serial
Nos.
32-1111
to
32-1320
Revised:
8/7/74
INSTRUMENTS
2K1
