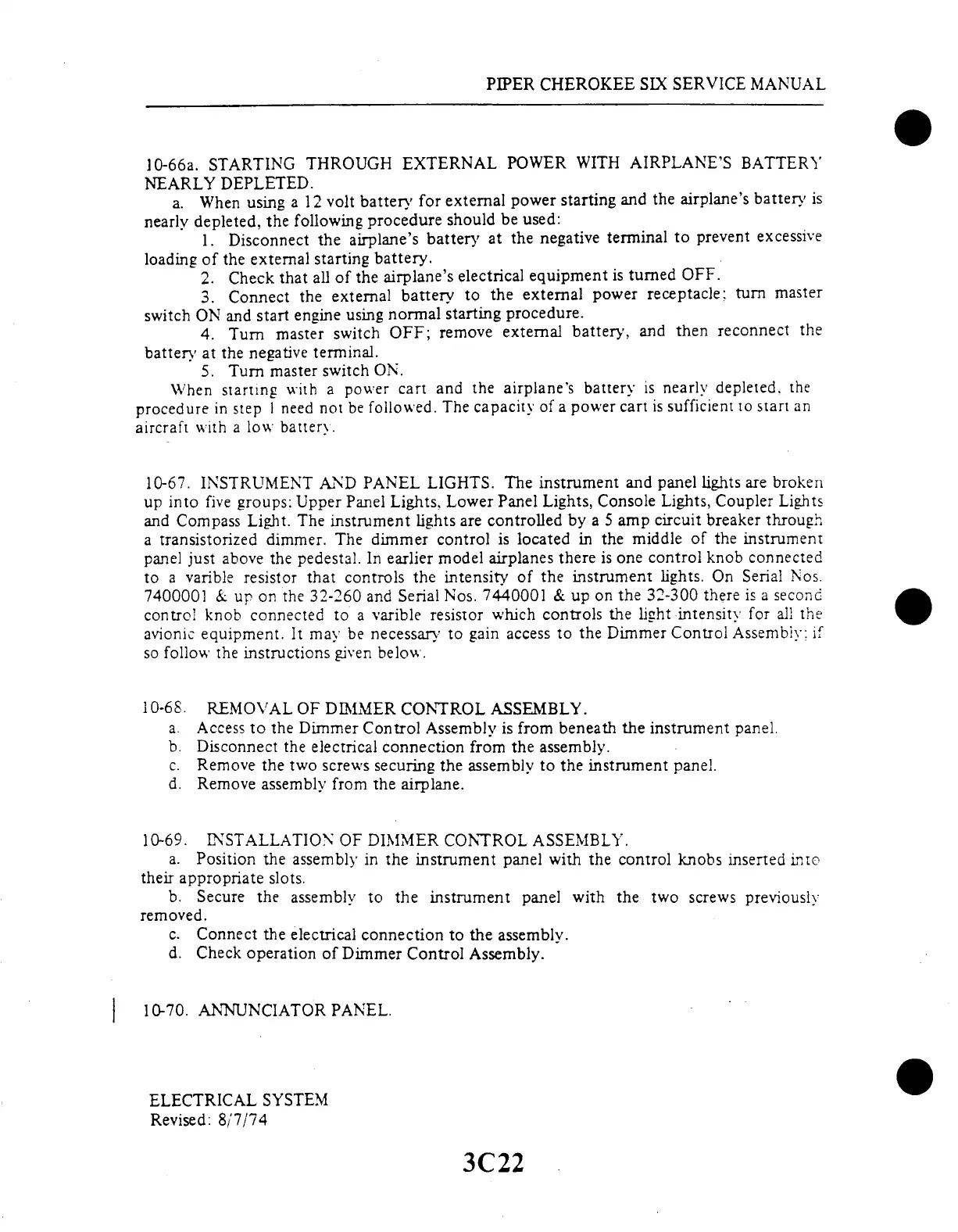

STARTING
THROUGH
EXTERNAL
POWER
WITH
AIRPLANE'S
BATTERY
NEARLY DEPLETED.
a.
When
using a
12 volt
battery
for external
power
starting
and
the
airplane's
battery
is
nearly
depleted,
the following
procedure
should be
used:
1.
Disconnect
the
airplane's
battery
at the
negative
terminal
to
prevent
excessive
loading
of
the external
starting
battery.
2. Check
that all
of the airplane's
electrical
equipment
is turned OFF.
3.
Connect
the external
battery
to
the external
power
receptacle:
turn master
switch
ON
and start
engine
using normal
starting
procedure.
4.
Turn master
switch
OFF;
remove
external
battery,
and
then reconnect
the
battery
at
the negative
terminal.
5.
Turn
master
switch
ON.
When
starting
with a
power
cart and
the
airplane's
battery
is
nearly
depleted.
the
procedure
in step
I need not
be followed.
The capacity
of
a power cart
is sufficient
to start
an
aircraft
with
a low
batter\.
10-67. INSTRUMENT
AND PANEL
LIGHTS. The
instrument and panel
lights are broken
up into five groups:
Upper Panel
Lights. Lower Panel
Lights, Console Lights,
Coupler Lights
and
Compass
Light.
The instrument
lights
are controlled
by
a 5 amp
circuit breaker
through
a transistorized
dimmer. The dimmer
control is located
in the middle
of the instrument
panel
just above
the pedestal.
In earlier
model airplanes
there is one
control knob
connected
to
a varible resistor
that
controls the
intensity of
the instrument
lights. On
Serial Nos.
7400001
& up
on the 32-260
and Serial
Nos. 7440001
& up on the
32-300 there
is a second
control
knob
connected to
a varible resistor
which
controls the
light intensity
for all the
avionic
equipment. It
may be necessary
to gain access to the
Dimmer Control
Assembly if
so follow
the instructions
given below.
10-68. REMOVAL
OF DIMMER CONTROL
ASSEMBLY.
a. Access to the
Dimmer Control Assembly is from
beneath the instrument panel.
b.
Disconnect the electrical
connection from the assembly.
c.
Remove the two screws securing
the assembly to the instrument
panel.
d. Remove assembly from the airplane.
10-69.
INSTALLATION OF
DIMMER CONTROL ASSEMBLY.
a. Position the assembly in the instrument panel with the control knobs inserted into
their appropriate slots.
b.
Secure the assembly to the instrument
panel with the two screws
previously
removed.
c.
Connect the electrical
connection to the assembly.
d. Check operation
of Dimmer Control
Assembly.
10-70. ANNUNCIATOR PANEL.
ELECTRICAL
SYSTEM
