LANDING GEAR
ACTUATOR
25 AMP
1634
TERMINAL
PIPER CHEROKEE
SIX SERVICE
MANUAL
I GEAR
SHOWN IN DOWN
LOCKED
POSITION WITH
STRUTS COMPRESSED
2 REPLACES
G3S 8 G3H
ON LATER MODELS
3 AUTOMATIC
GEAR
DOWN ACTUATOR
SWITCIH
SHOWN IN LOW AIRSPEED POSITION
4 REPLACES
FLASHER LOCATED
BETWEEN
WIRES G5C & G5D ON S/N 32R-7880C33
TO 32R-7880068
5 WIRE
G3H,G2F, C2D G2H
MOVED TC
TERMINAL
2 ON
LATER
MODELS
PA-32R.300,
SERIAL NOS. 32 R-7680001
TO 3 2 R-7880068

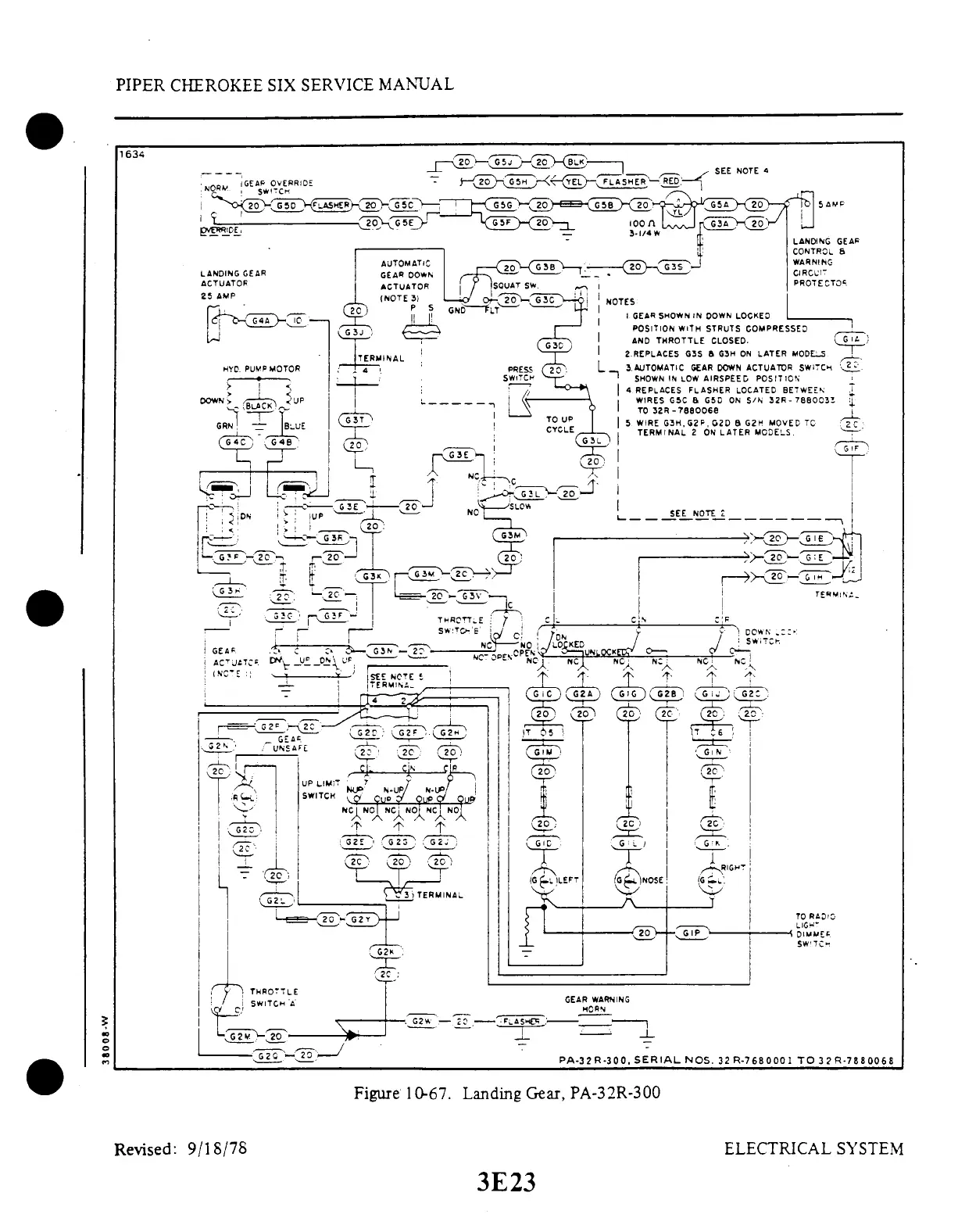

Figure 10-67.
Landing Gear,
PA-32R-300
Revised:
9/18/78
ELECTRICAL SYSTEM
3E23
