Piper Cherokee Six - Page 651

PIPER
CHEROKEE
SIX
SERVICE
MANUAL
LONG
SCREWS
ENSURE
THat
BATTERY
LEADS
ARE
LOCATE
IN VEE
RING
BOARd
END

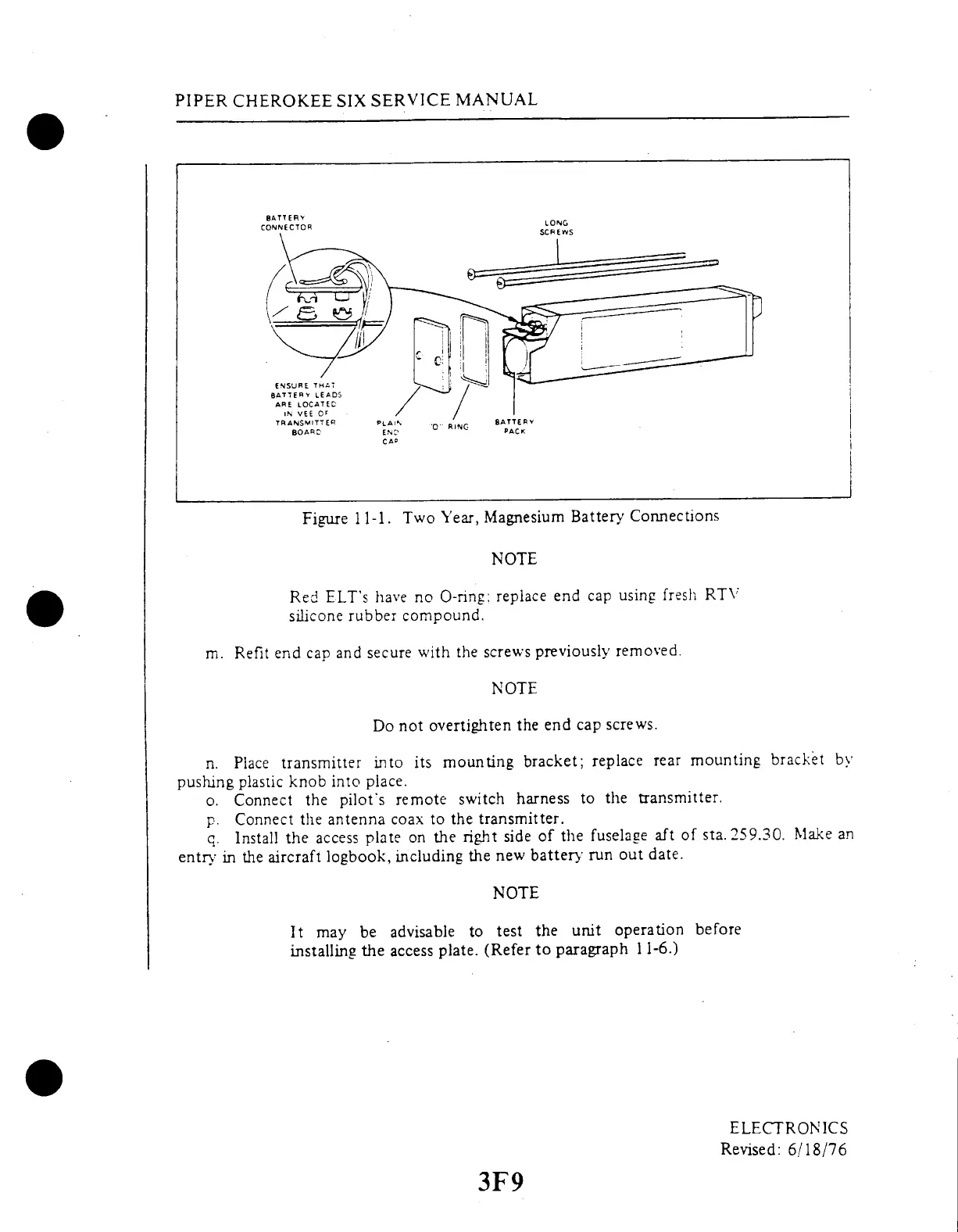

Figure
1
-1.
Two
Year,
Magnesium
Battery
Connections
NOTE
Red
ELT's
have
no
O-ring:
replace
end
cap
using
fresh
RTV
silicone
rubber
compound.
m.
Refit
end
cap
and
secure
with
the
screws
previously
removed.
NOTE
Do
not
overtighten
the
end
cap
screws.
n.
Place
transmitter
into
its
mounting
bracket;
replace
rear
mounting
bracket
by
pushing
plastic
knob
into
place.
o.
Connect
the
pilot's
remote
switch
harness
to
the
transmitter.
p.
Connect
the
antenna
coax
to
the
transmitter.
q.
Install
the
access
plate
on the
right
side
of
the
fuselage
aft
of sta.
259.30.
Make
an
entry
in
the
aircraft
logbook,
including
the
new
battery
run
out
date.
NOTE
It
may
be
advisable
to
test
the
unit
operation
before
installing
the
access
plate.
(Refer
to paragraph
1
1-6.)
ELECTRONICS
Revised: 6/18/76
3F9
