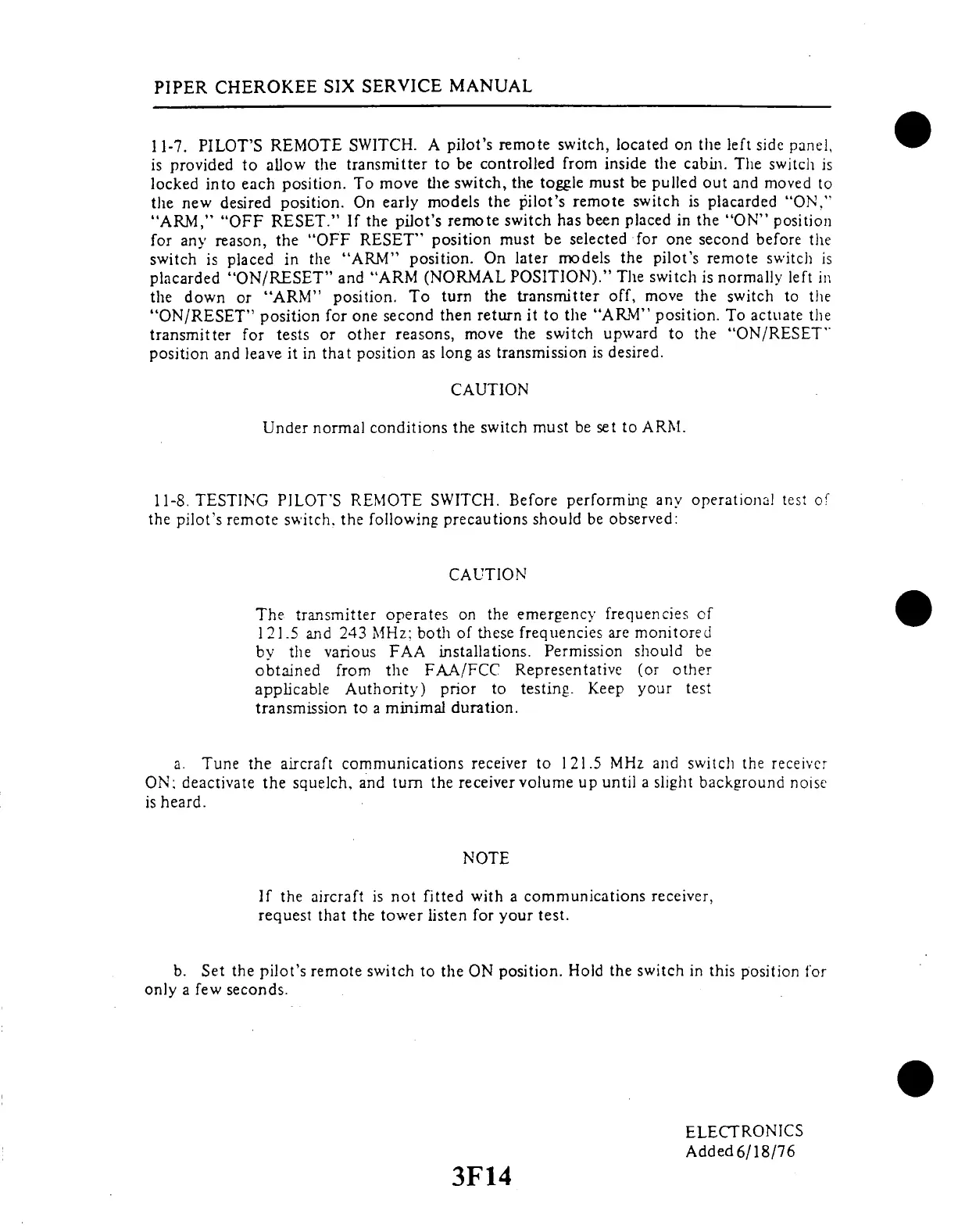

11-7.
PILOT'S REMOTE
SWITCH.
A pilot's
remote
switch, located
on the left
side panel,
is provided to allow
the transmitter
to be controlled
from inside the cabin.
The switch is
locked into
each position.
To move
the switch, the
toggle must
be pulled out
and moved
to
the
new desired
position. On
early models
the pilot's
remote switch
is placarded
"ON,"
"ARM,"
"OFF RESET."
If the pilot's remote
switch has been
placed in the "ON"
position
for
any reason,
the "OFF RESET"
position
must be
selected for
one second
before the
switch is
placed in the
"ARM"
position. On
later models
the pilot's
remote switch
is
placarded
"ON/RESET"
and "ARM
(NORMAL
POSITION)."
The switch
is normally
left in
the down
or "ARM"
position.
To turn the
transmitter
off, move
the switch
to the
"ON/RESET"
position for
one second then
return it
to the "ARM"
position. To
actuate the
transmitter
for tests
or other reasons,
move
the switch
upward to
the "ON/RESET"
position
and leave
it in that
position
as long as
transmission
is desired.
CAUTION
Under normal
conditions the switch
must be set to ARM.
11-8. TESTING
PILOT'S REMOTE
SWITCH.
Before performing
any operational test
of
the
pilot's remote
switch. the following
precautions
should be
observed:
CAUTION
The
transmitter
operates
on the
emergency
frequencies
of
121.5 and
243 MHz: both
of these
frequencies
are monitored
by
the various
FAA installations.
Permission
should
be
obtained
from
the
FAA/FCC
Representative
(or
other
applicable
Authority)
prior
to testing.
Keep
your
test
transmission
to a
minimal
duration.
a.
Tune the aircraft
communications
receiver to 121.5
MHz and switch
the receiver
ON: deactivate the
squelch, and turn the receiver volume
up until a slight background noise
is heard.
NOTE
If the aircraft
is not
fitted with a
communications
receiver,
request that
the tower listen for
your test.
b. Set the pilot's remote switch
to the ON position. Hold the switch
in this position for
only a few seconds.
