DEFROSTER
AIR
0
HEATED
AIR
6
PIPER
CHEROKEE SIX
SERVICE MANUAL
1898
FRESH AIR
3
1. FRESH
AIR INLET
2. DRAIN
TUBE
3. OVERHEAD VENT BLOWER
4.
BULKHEAD
ASSEMBLY
5. OVERHEAD FRESH AIR DUCT
6. CABIN
AIR EXHAUST
7. FRESH
AIR OUTLET
8. DEFROSTER
OUTLET
9. CABIN
HEAT
OUTLET
10. DEFROSTER AIR CONTROL
11. HEATER AIR CONTROL

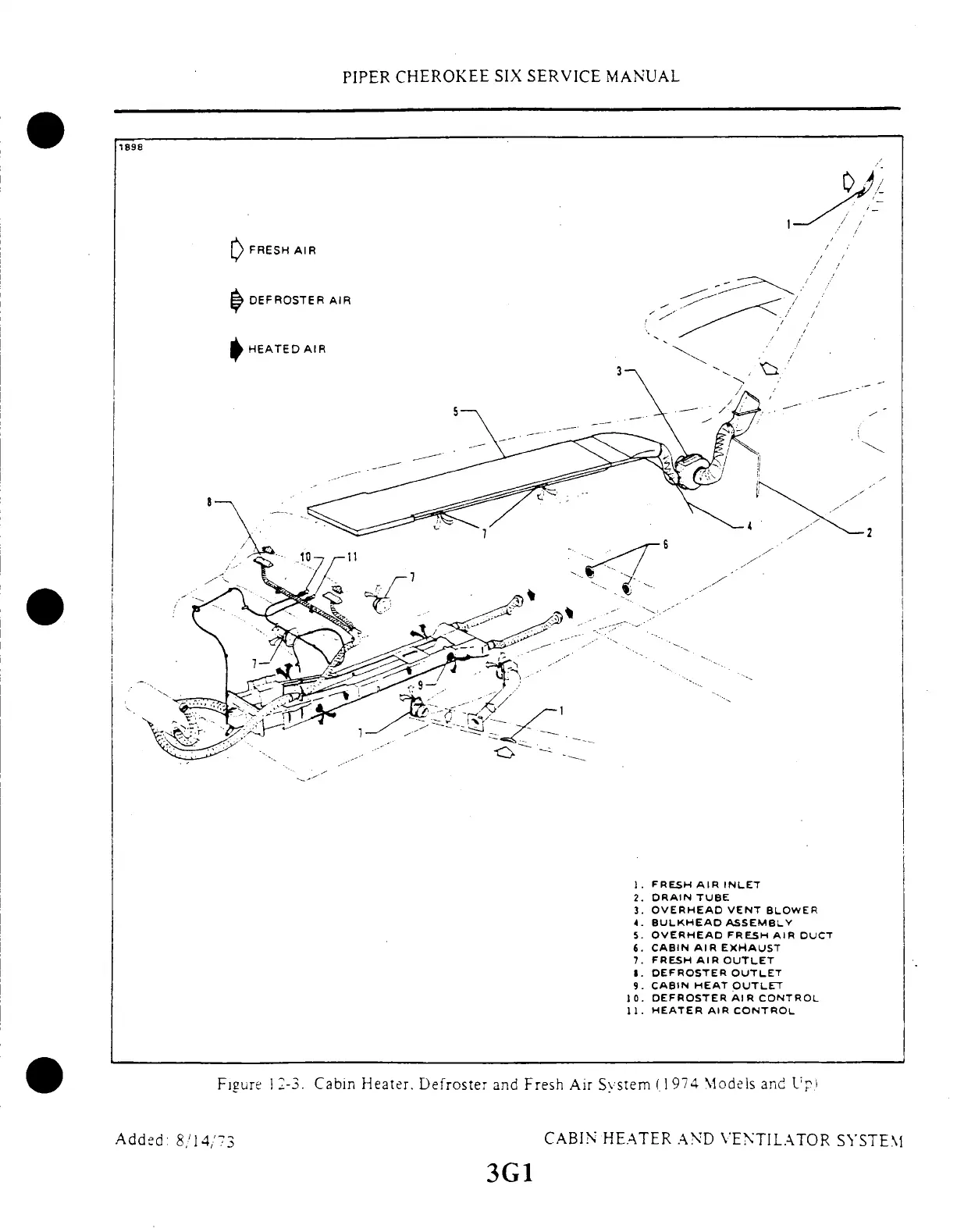

Figure 1 2-3. Cabin Heater.
Defroster and Fresh Air System
(1974 Models and Up
Added
8/'14,'73
CABIN
HEATER
AND
VENTILATOR
SYSTEM
3G1
