4.68
TORQUE-
STARTING
AT
EACH
END.
150
THIS
END
FOR
VERTICAL
OIL CHECK
PLUG
MOUNT
(TYPICAL TWO
SIDES)

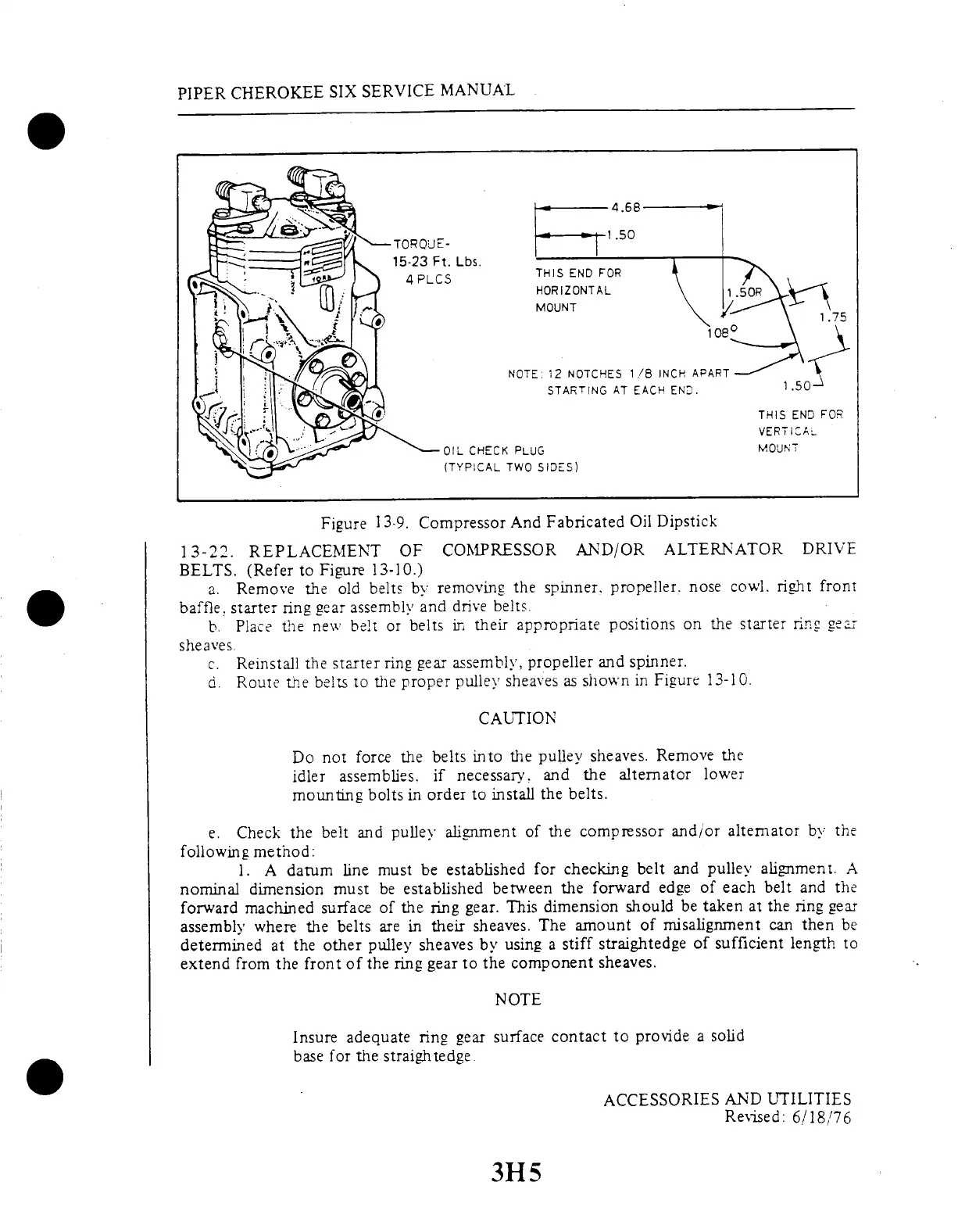

Figure
13-9.
Compressor
And
Fabricated
Oil
Dipstick
13-22.
REPLACEMENT
OF
COMPRESSOR
AND/OR
ALTERNATOR
DRIVE
BELTS.
(Refer
to Figure
13-10.)
a.
Remove
the
old
belts
by removing
the
spinner,
propeller,
nose
cowl.
right
front
baffle,
starter
ring
gear
assembly
and drive
belts.
b.
Place
the
new
belt
or
belts
in, their
appropriate
positions
on the
starter
ring gear
sheaves.
c.
Reinstall
the
starter
ring
gear
assembly,
propeller
and
spinner.
d.
Route
the
belts
to
the
proper
pulley
sheaves
as shown
in
Figure
13-10.
CAUTION
Do
not force
the
belts
into
the pulley
sheaves.
Remove
the
idler
assemblies.
if necessary,
and
the
alternator
lower
mounting
bolts in
order
to install
the
belts.
e.
Check
the belt
and
pulley
alignment
of the
compressor
and/or
alternator
by
the
following
method:
1.
A
datum
line
must
be established
for
checking
belt
and pulley
alignment.
A
nominal
dimension
must be
established
between
the forward
edge
of each
belt
and the
forward
machined
surface
of the ring
gear. This
dimension
should
be taken
at the
ring gear
assembly
where
the belts
are
in
their
sheaves.
The
amount
of misalignment
can
then
be
determined
at
the other
pulley
sheaves
by using
a
stiff straightedge
of
sufficient
length
to
extend
from
the
front
of
the ring
gear
to the
component
sheaves.
NOTE
Insure
adequate
ring
gear
surface
contact
to
provide
a solid
base
for the
straightedge.
ACCESSORIES
AND
UTILITIES
Revised:
6/18/76
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
3H5
