SEAL
ALL
AROUND
FORWARD
AND
AFT
COVERS
WITH
PERMAGUM
BEAD
NO.
576
PURCHASED
FROM
PRESTOLITE
ENGINEERING
COMPANY.
1
ACTUATING
TRNASMISSION
ASSY
2
BELLCRANK
ASSY
(CONDENSER)
3
PUSH
ROD
ASSY
4.
BELLCRANK
ASSY.
(MECHANISM)
5
OPEN
LIMIT
SWITCH
6
CLOSED
LIMIT
SWITCH
7.
CONDENSER
8
CONDENSER
DOOR
9
PUSH
ROD
10
TRANSMISSION
MOTOR
ASSY
944
PIPER
CHEROKEE
SIX
SERVICE
MANUAL
1788
UP
LIMIT
SWITCH
.12
PRIOR
TO
PRELOAD
VIEW
A

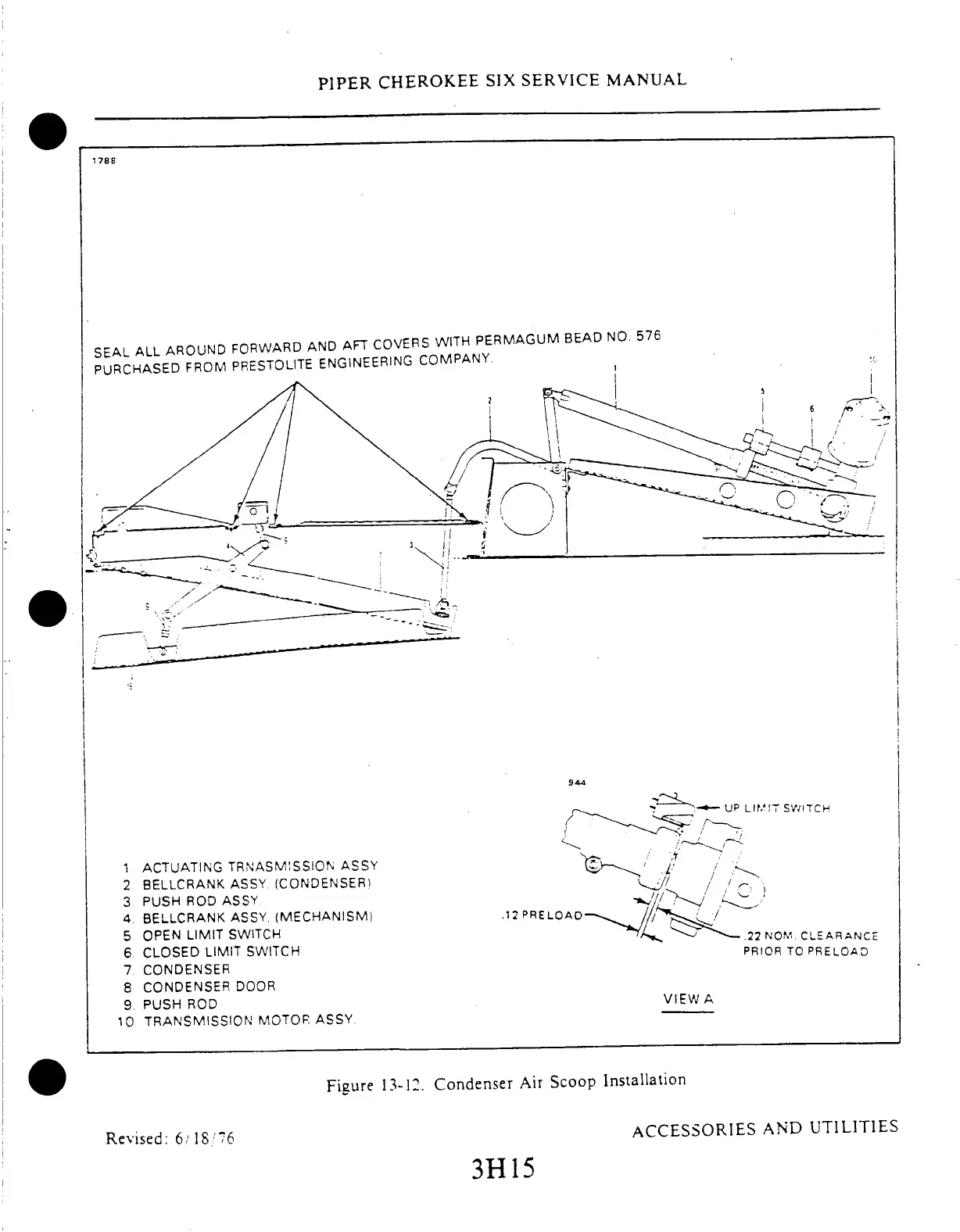

Figure
13-12.
Condenser
Air
Scoop
Installation
ACCESSORIES
AND
UTILITIES
Revised:
6/18/7
6
3H15
