CR8
ABOVE
CR9
BELOW
1N
3659
(2)
DIODE BOARD
--
R
2
R
2
HEAD
ASS.
-
--
R5
OTHER
DIODES
ARE
IN
4001
CR7
MR1120
OR
IN 1200
A

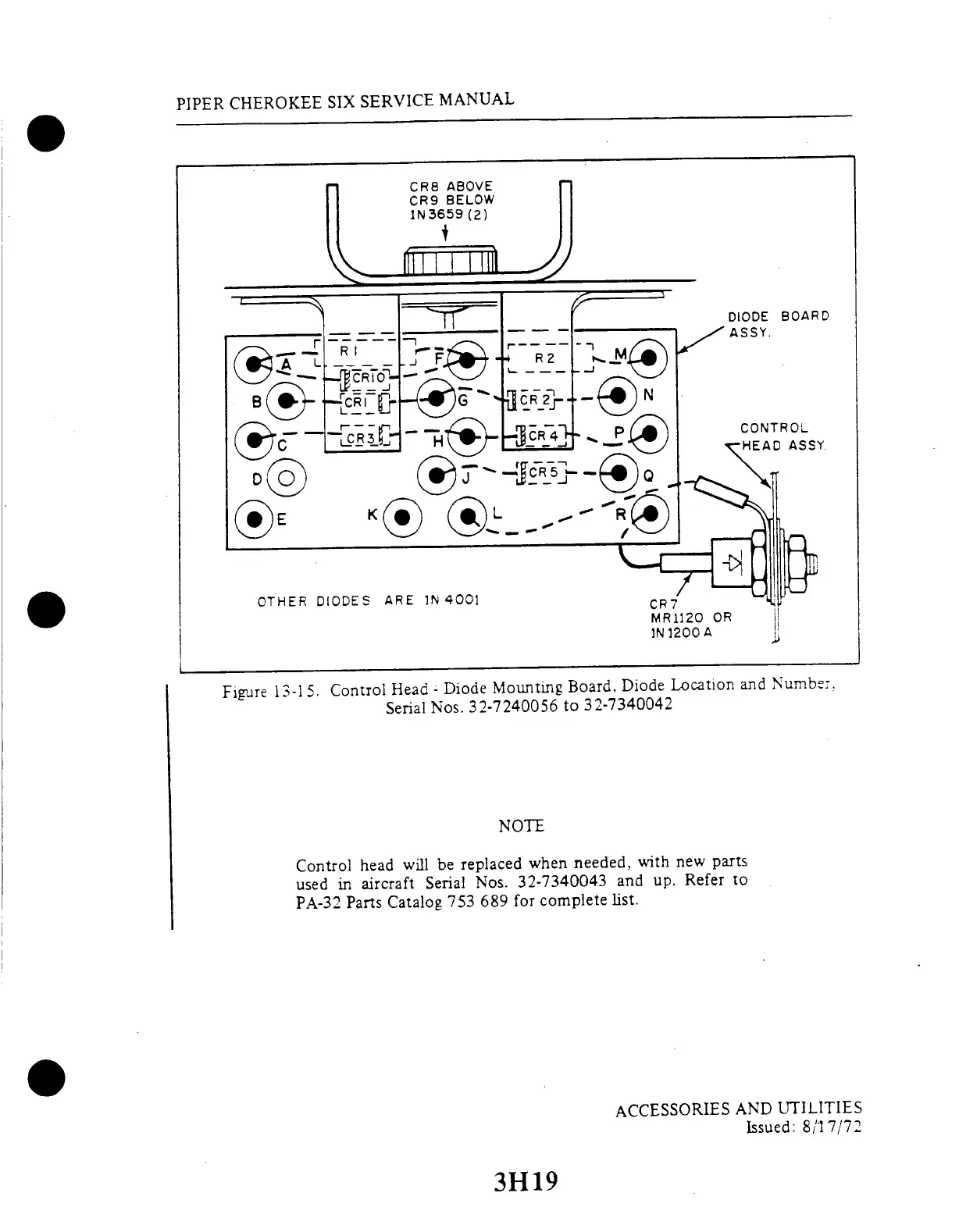

Figure
13-15.
Control
Head
-
Diode
Mounting
Board.
Diode
Location
and
Number.
Serial
Nos.
32-7240056
to
32-7340042
NOTE
Control
head
will
be
replaced
when
needed,
with
new
parts
used
in
aircraft
Serial
Nos.
32-7340043
and
up.
Refer
to
PA-32
Parts
Catalog
753
689
for
complete
list.
