1.
DRIFT
PIN
*PIPER
CHEROKEE
SIX
SERVICE
MANUAL
5.
6.
SMA L L
CENTER
DRILL

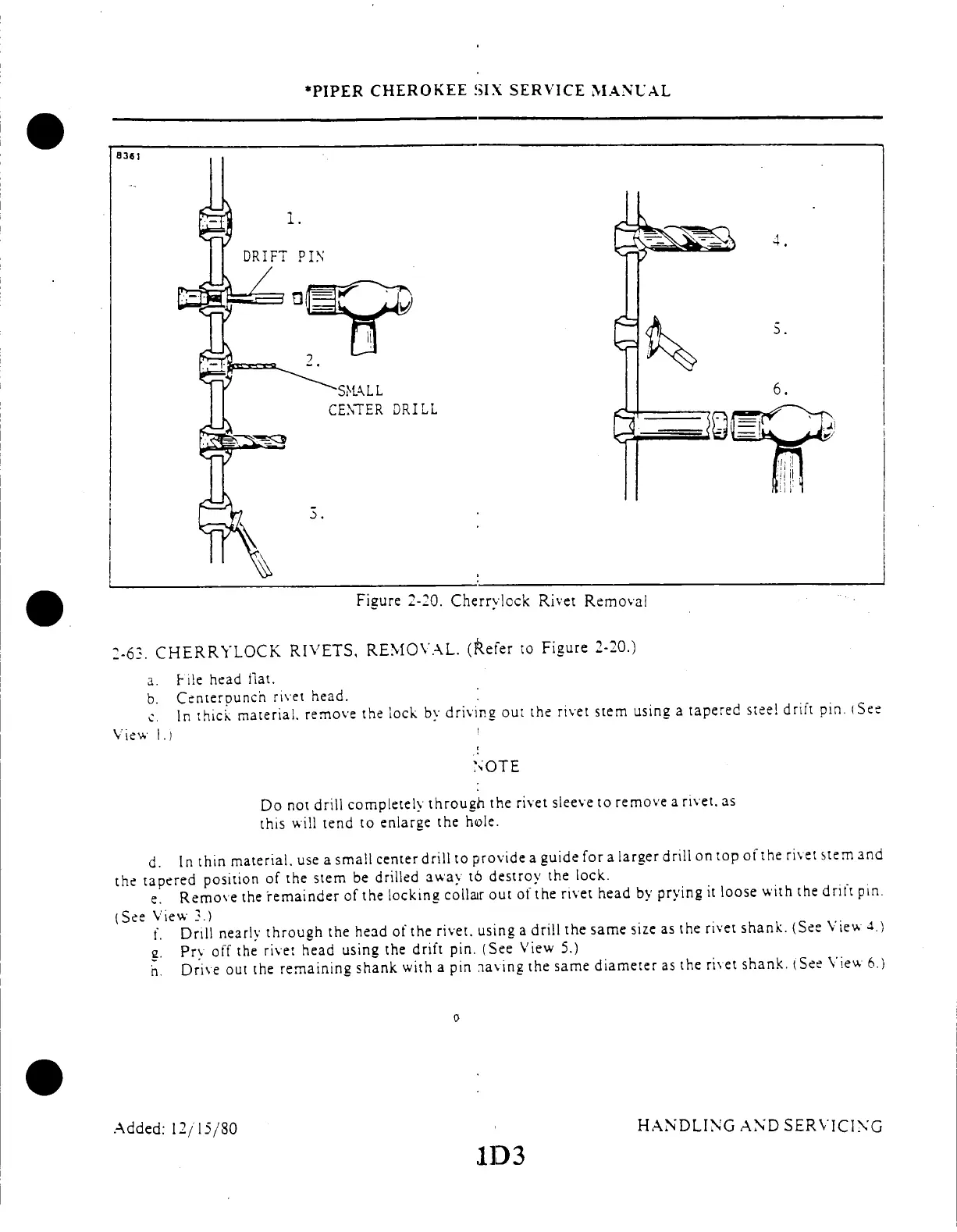

Figure
2-20.
Cherrylock
Rivet
Removal
2-63.
CHERRYLOCK
RIVETS,
REMOVAL.
(kefer
to
Figure
2-20.)
a.
File
head
flat.
b.
CenterDunch
rivet
head.
c.
In
thick
material.
remove
the
lock
by
driving
out
the
rivet
stem
using
a
tapered
steel
drift
pin.
(See
View
1.)
NOTE
Do
not
drill
completely
through
the
rivet
sleeve
to
remove
a
rivet.
as
this
will
tend
to
enlarge
the
hole.
d.
In
thin
material.
use
a
small
center
drill
to
provide
a
guide
for
a
larger
drill
on
top
of
the
rivet
stem
and
the
tapered
position
of
the
stem
be
drilled
away
t6
destroy
the
lock.
e.
Remove
the
remainder
of
the
locking
collair
out
of
the
rivet
head
by
prying
it
loose
with
the
drift
pin.
(See
View
3.)
f.
Drill
nearly
through
the
head
of
the
rivet.
using
a
drill
the
same
size
as
the
rivet
shank.
(See
View
.)
g.
Pry
off
the
rivet
head
using
the
drift
pin.
(See
View
5.)
h.
Drive
out
the
remaining
shank
with
a
pin
having
the
same
diameter
as
the
rivet
shank.
See
View
6.)
