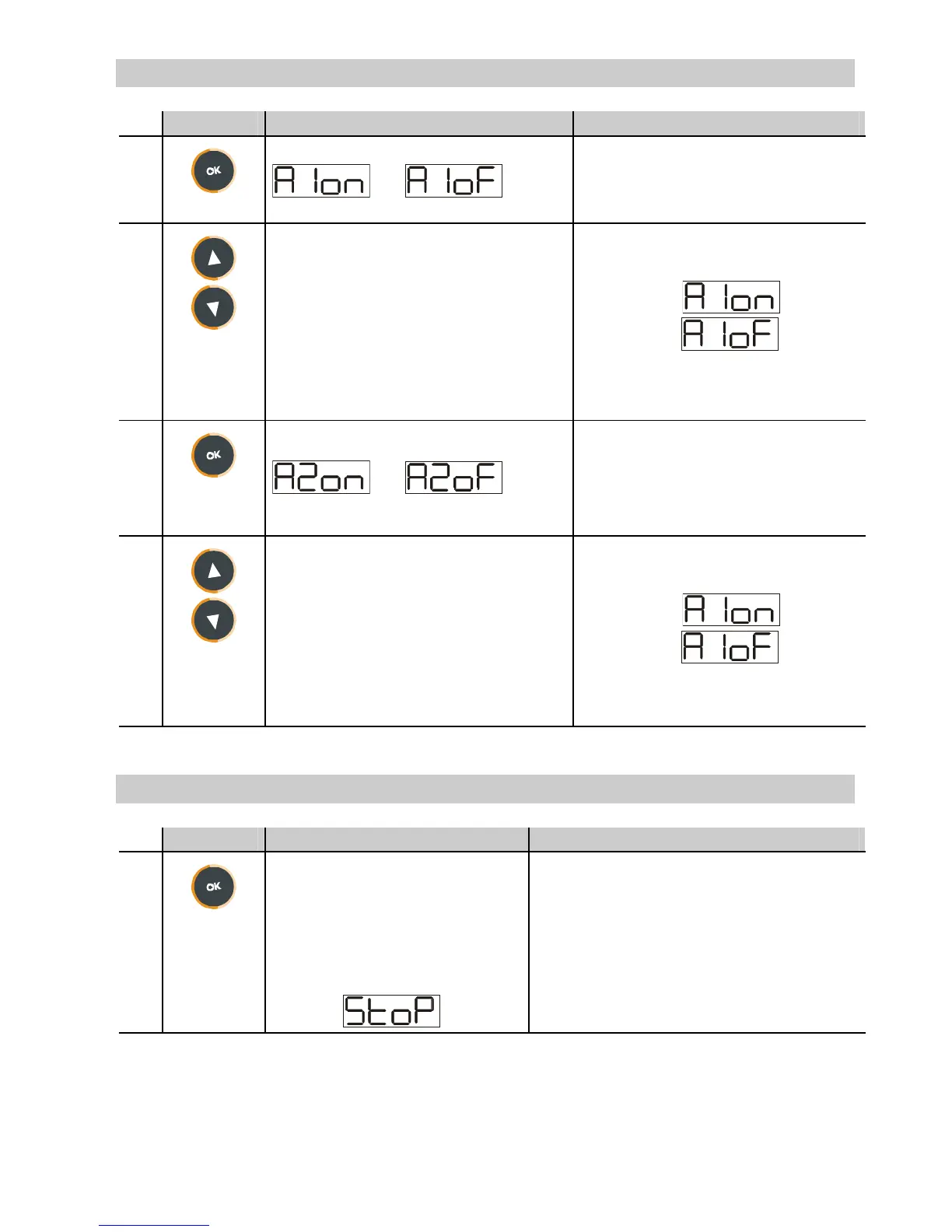

26.1.3 Programming of auxiliary output (if configured)
Press Display Do
8
Green display shows
or .
If output A1 is not
programmed as timed
auxiliary, go to point 10.
9
Select the state of
auxiliary output during
the step: for
active or for not
active
10
Green display shows
or .
If output A2 is not
programmed as timed
auxiliary, go back to
point 5
11
Select the state of
auxiliary output during
the step: for
active or for not
active .
Go back to point 5.
26.1.4 End of programming…
Press Display Do
12
The controller returns
to STOP mode,
storing the
programmed cycle.
Red display
shows .
In case that outputs (A1, A2)
are programmed as
auxiliaries, repeat points 9
and 11 to program the state
of outputs after cycle stop.
