26.1.2 Cycle programming (programming of steps/
segments)…

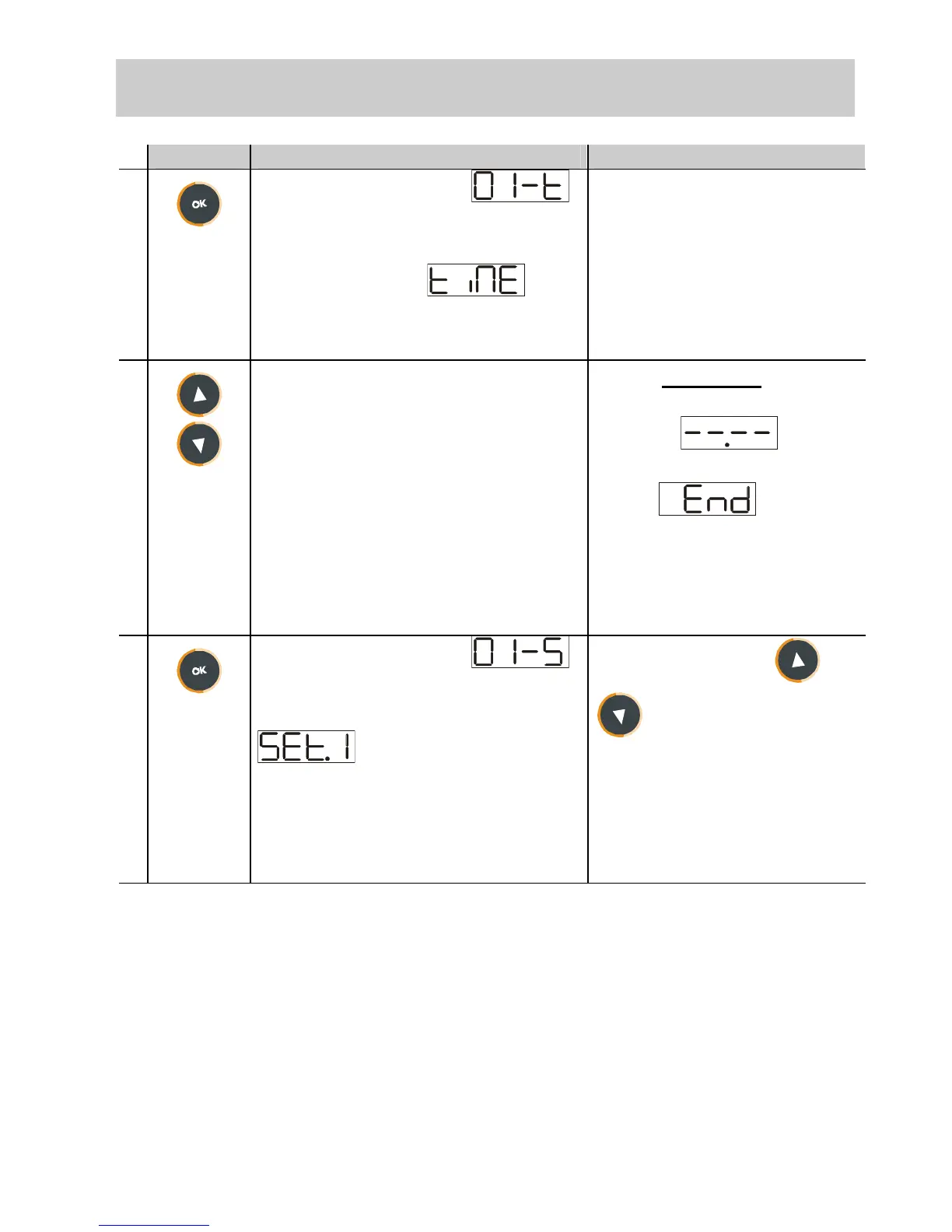

Press Display Do
5
Red display shows
or number of step which is
being modified (for a few
seconds), then .
Red display shows time
value (duration) of step.
6
Increase / decrease the
value on green display
N.B.:Max. 20 steps can be
programmed for each cycle.
Then the controller
automatically goes to point
12.
Enter duration of step
as hours:minutes
** Enter
for endless time or
enter
for cycle end (in case
that not all available
steps are required) and
skip to point 12.
7
Red display shows
or number of step which is
being modified and then
.
Green display shows
setpoint of step
(temperature to reach within
the selected time)
Use arrow keys +
to enter setpoint
value (temperature
required at end of each
step)
