PLANET ECLIPSE LV1.6 - Trigger Adjustment

FIG-1
E
B
C
A
1/16
1/16
1/16
5/64
1/16
+
+
-
-
+
-
-
+
+
-
D
16
INTRODUCTION
TRIGGER ADJUSTMENT

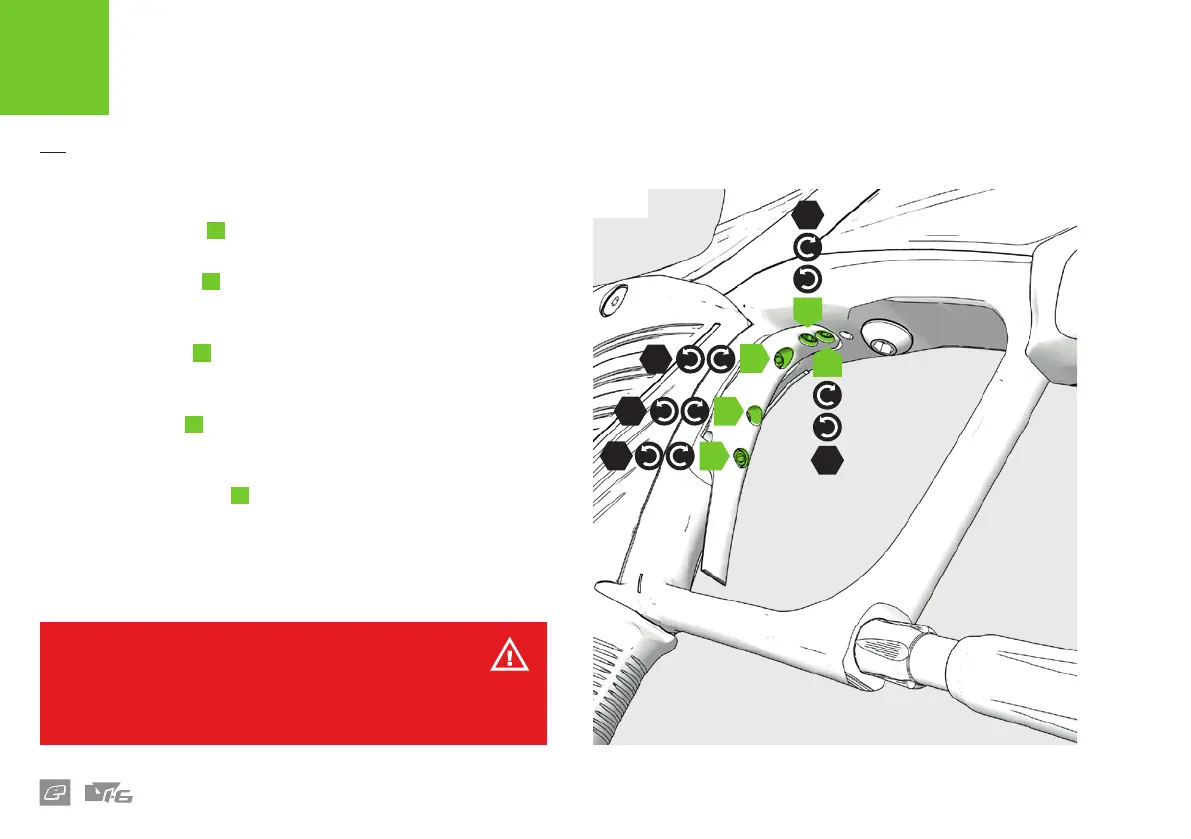

FIG-1
The spring return screw
A
controls the spring strength of the trigger
return. Clockwise increases the strength, counter-clockwise decreases it.
The microswitch screw
B
adjusts the distance between the trigger
and microswitch. Clockwise increases the distance, counter-clockwise
reduces it.
The post-travel screw
C
adjusts the distance the trigger travels once
pulled. Clockwise reduces the amount of travel (shortening the trigger),
counter-clockwise increases the trigger pull distance.
The pre-travel screw
D
adjusts the distance the trigger travels before
being pulled. Clockwise reduces the amount of travel (shortening the
trigger), counter-clockwise increases the trigger pull distance.
The magnet adjuster screw
E
adjusts the strength of the trigger return.
Clockwise increases the strength, counter-clockwise reduces it.
WARNING!
Do not wind the screws in too far as this may prevent the marker from ring or
even damage it. If the pre-travel screw is wound in too far this could cause the
marker to re unintentionally.
WARNING
