PLANET ECLIPSE LV1.6 - Push On Purge System (POPS) Assembly

FIG-1
D
J
E
H
M
C
K
A
I
N
B
G
F
L
53
TECHNICAL INFORMATION

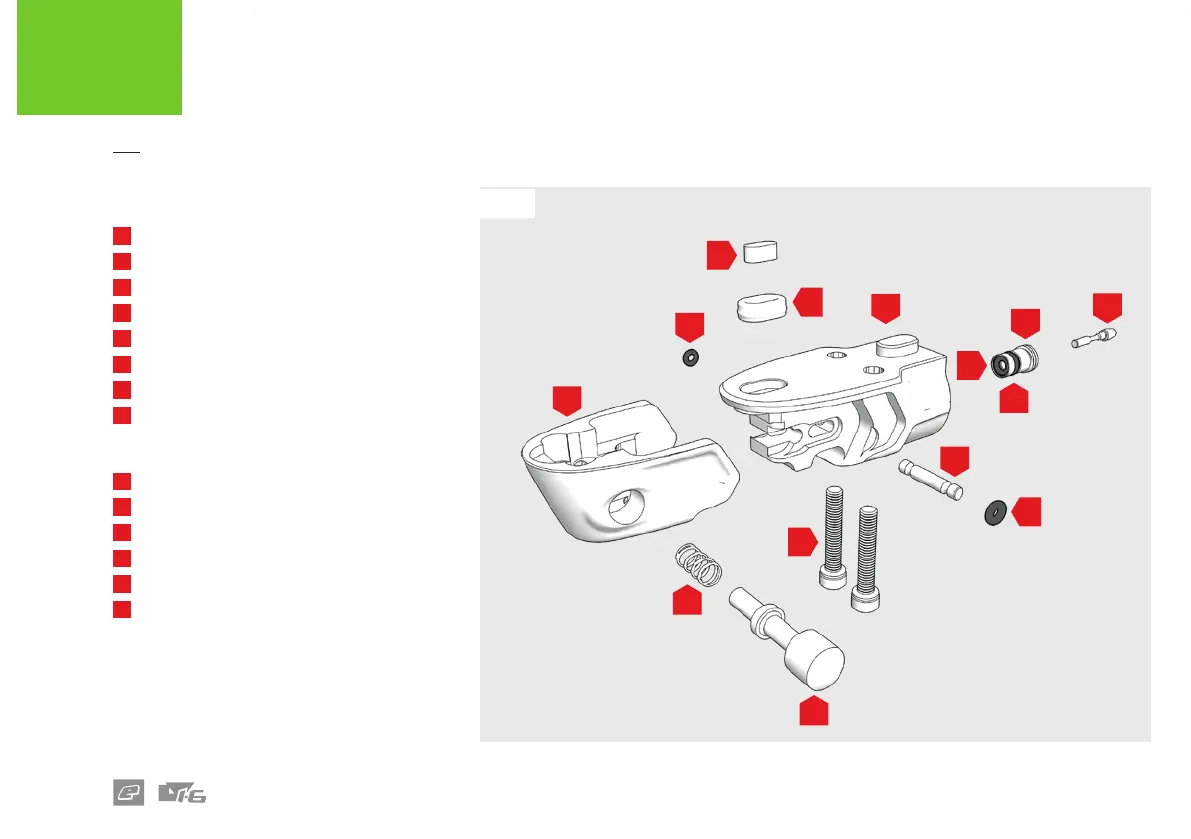

PUSH ON PURGE SYSTEM (POPS) ASSEMBLY
FIG-1
A
POPS body
B
POPS bonnet
C
#004 NBR70
D
POPS gasket
E
Inlet lter
F
Latch button
G
Latch spring
H
POPS screws
10-32 UNF X1"
Cap head socket
I
Push rod
J
#004 NBR70
K
POPS insert
L
#007 NBR70
M
#005 NBR90
N
POPS pin
