WARNING!
If air still leaks make sure the o-rings are present and undamaged.
Always check for dirt inside both sections of the AT Pipe before reinstalling.
A
B
B
+
20
INTRODUCTION
AIR TRANSFER PIPE
The Air Transfer Pipe (AT Pipe) enables air to move through the marker
and allow it to re. To do this consistently, without leaks, you need to
ensure that it is seated correctly.

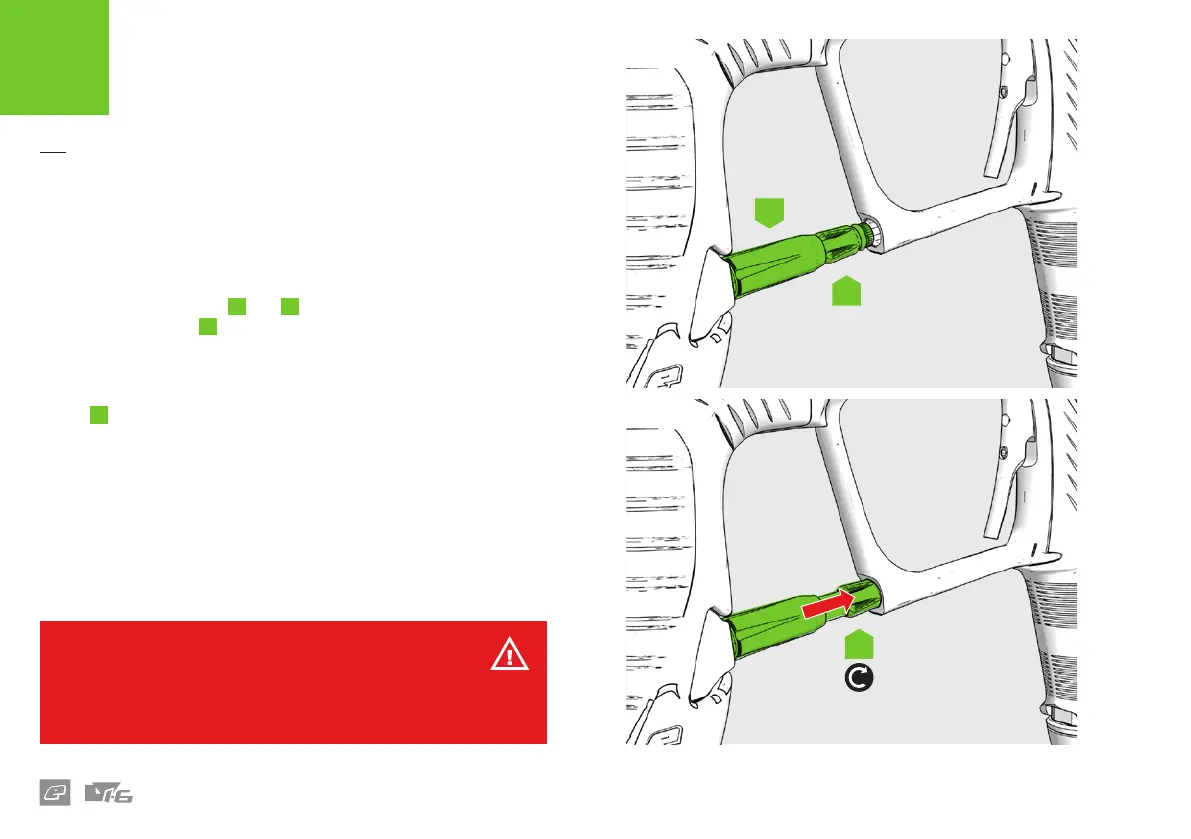

FIG-1
The AT Pipe is in two parts
A
and
B
and both parts screw into
eachother with ease. If
B
is in the open position as shown here (not
seated in the frame) it will not be sealed causing air to leak.
FIG-2
Rotate
B
clockwise towards the frame (using your ngers) until it sits
rmly within the frame seat. This will prevent any leaks and ensure a
consistent transfer of air.
