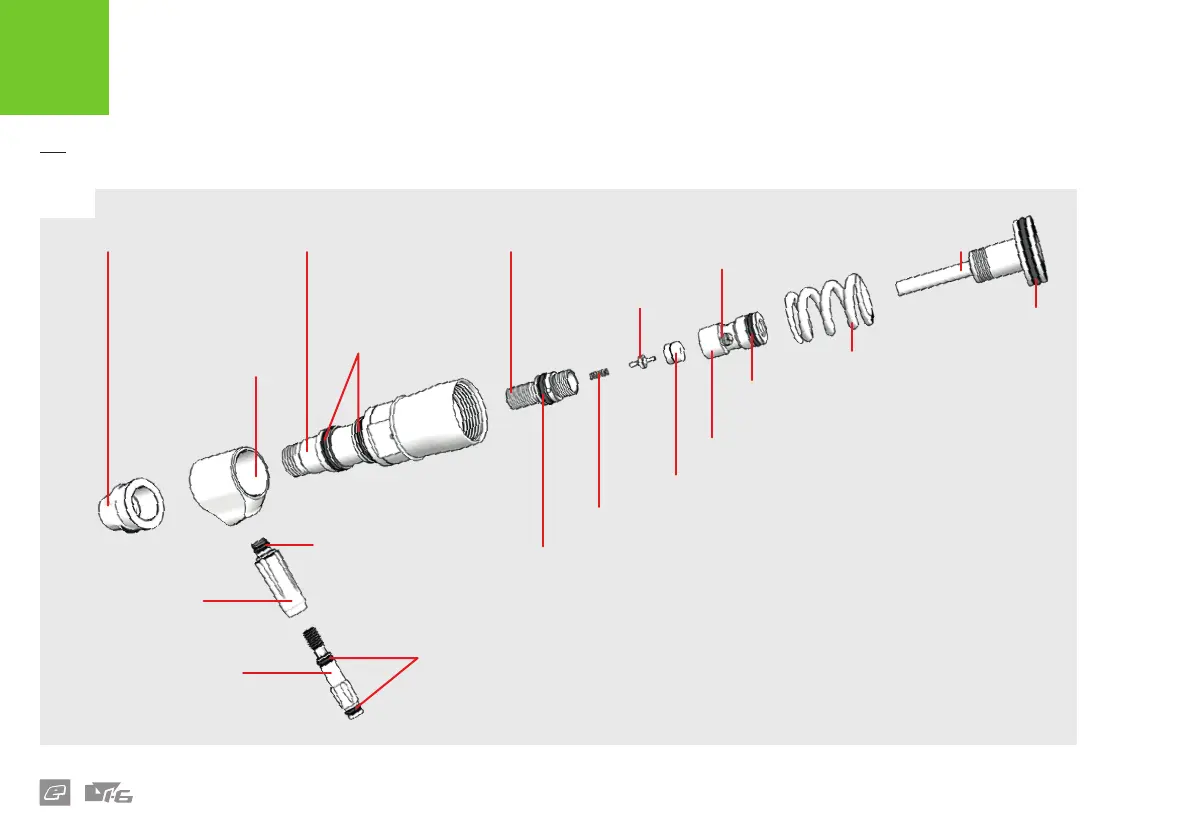

PLANET ECLIPSE LV1.6 - SL4 Inline Regulator

FIG-1
Regulator bottom
AT pipe nut
O-ring
#007 NBR70
O-rings
#007 NBR70
AT pipe
Regulator swivel
Regulator body Adjuster bottom Internal o-ring
#008 NBR70
Regulator piston
Purge poppet
4
Swivel o-rings
#015 NBR60
Adjuster o-ring
#011 NBR70
Purge poppet spring
4
Regulator seal
Adjuster top
External o-ring
#011 NBR70
Regulator spring
3
Piston o-ring
14x2 NBR70
1 Reset the regulator to factory after re-assembly.
2 Only use the SL4 regulator with the LV1.6.
3 Only use the LV1.6 SL4 spring with the SL4 inline regulator.
4 Failure to re-install the Purge Poppet assembly correctly
could seriously damage the LV1.6.
50
TECHNICAL INFORMATION
SL4 INLINE REGULATOR
1,2
