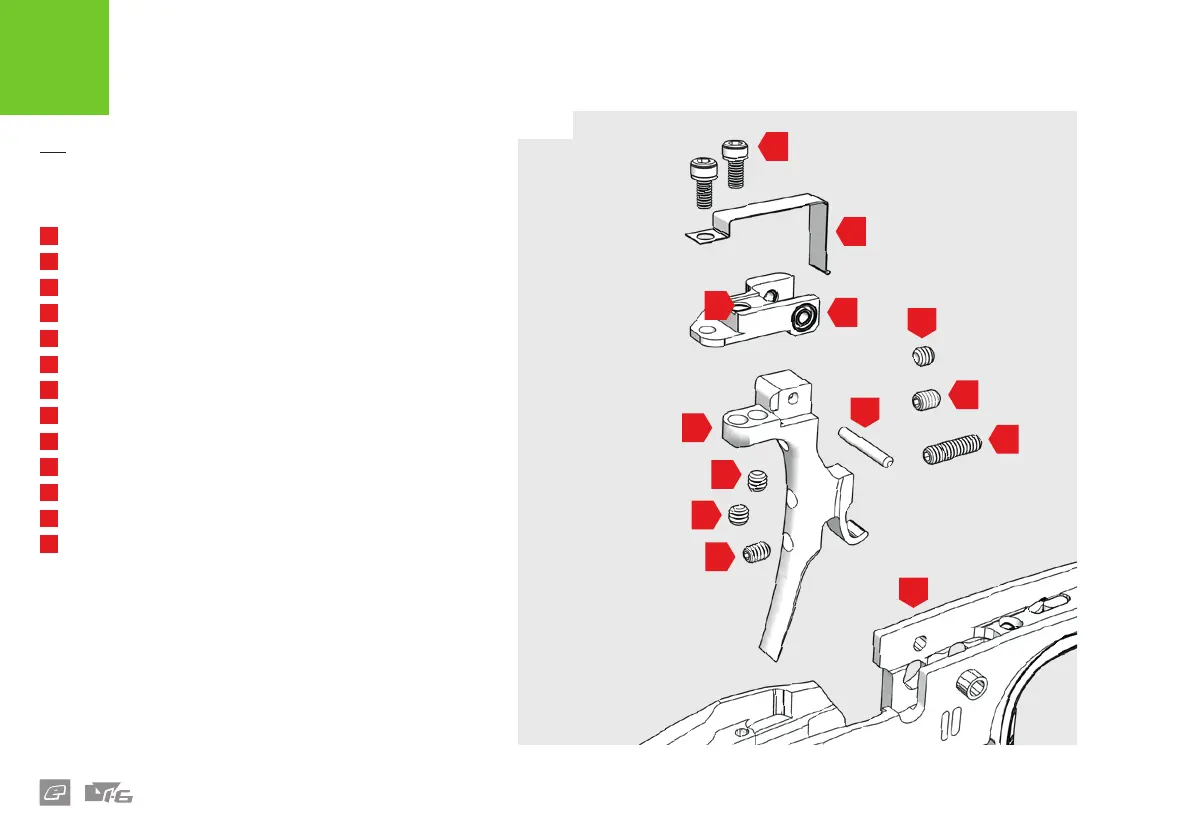

PLANET ECLIPSE LV1.6 - Trigger Assembly

FIG-1
E
F
G
H
D
J
I
M
B
A
K
L
54
FIG-1
A
Bearing carrier screws (M2.5 x 5 cap-head socket)
B
Leaf spring
C
Bearing carrier
D
Magnet
E
Trigger
F
Pre-travel adjuster screw (6-32 UNC x 1/8” socket set)
G
Magnet adjuster screw (6-32 UNC x 1/8” socket set)
H
Post-travel adjuster screw (6-32 UNC x 3/16” socket set)
I
Trigger pin
J
Trigger pin locking screw (6-32 UNC x 1/8” socket set)
K
Spring adjuster screw (6-32 UNC x 3/16” socket set)
L
Micro-switch screw (6-32 UNC x 1/2” socket set)
M
LV1.6 frame
TECHNICAL INFORMATION
TRIGGER ASSEMBLY
C
