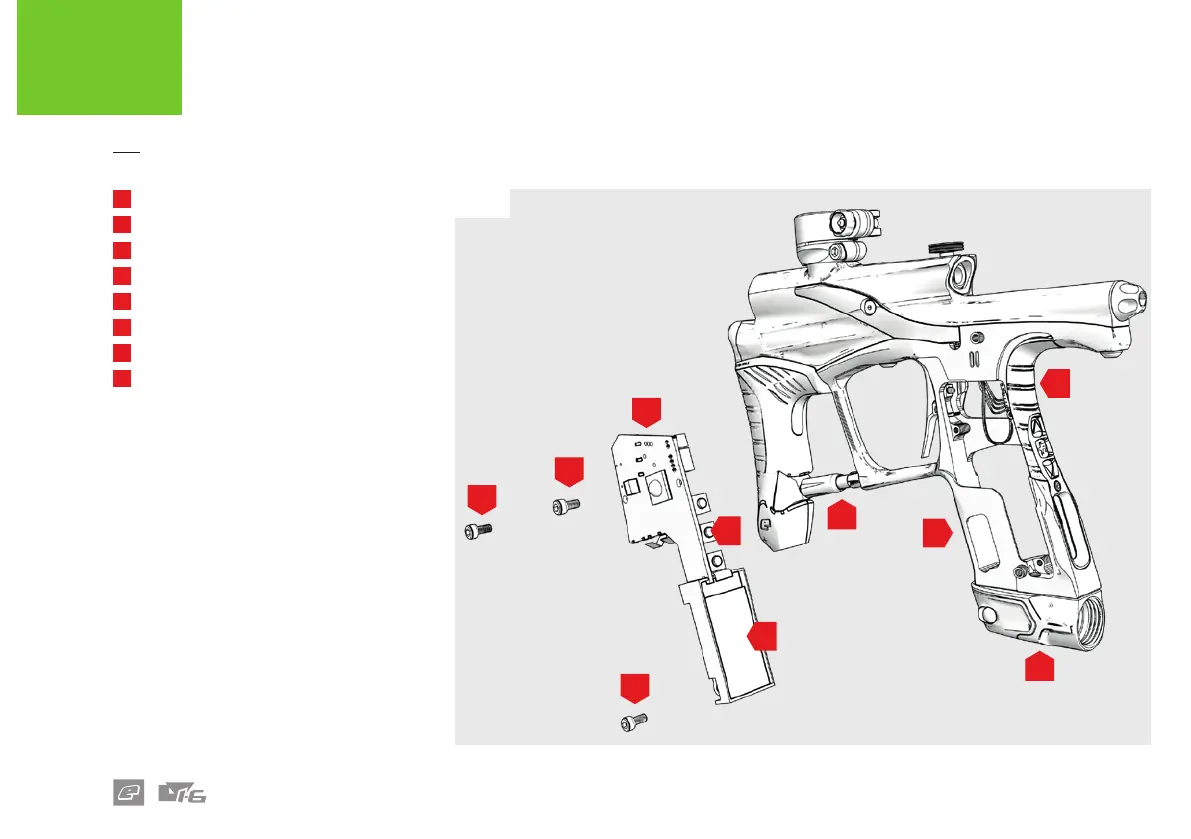

PLANET ECLIPSE LV1.6 - LV1.6 Frame Assembly

FIG-1
C
B
H
H
H
E
D
G
F
A
59
TECHNICAL INFORMATION
LV1.6 FRAME ASSEMBLY
A
LV1.6 frame
B
AT Pipe
C
POPS assembly
D
Rear grip section
E
LV1.6 Circuit board
F
Push button console
G
LCD screen
H
LV1.6 Circuit board screws (x3)
M2.5 x 5 socket cap-head
