PLANET ECLIPSE LV1.6 - Solenoid Assembly

FIG-1
D
E
E
F
B
A
C
E
G
I
H
52
TECHNICAL INFORMATION

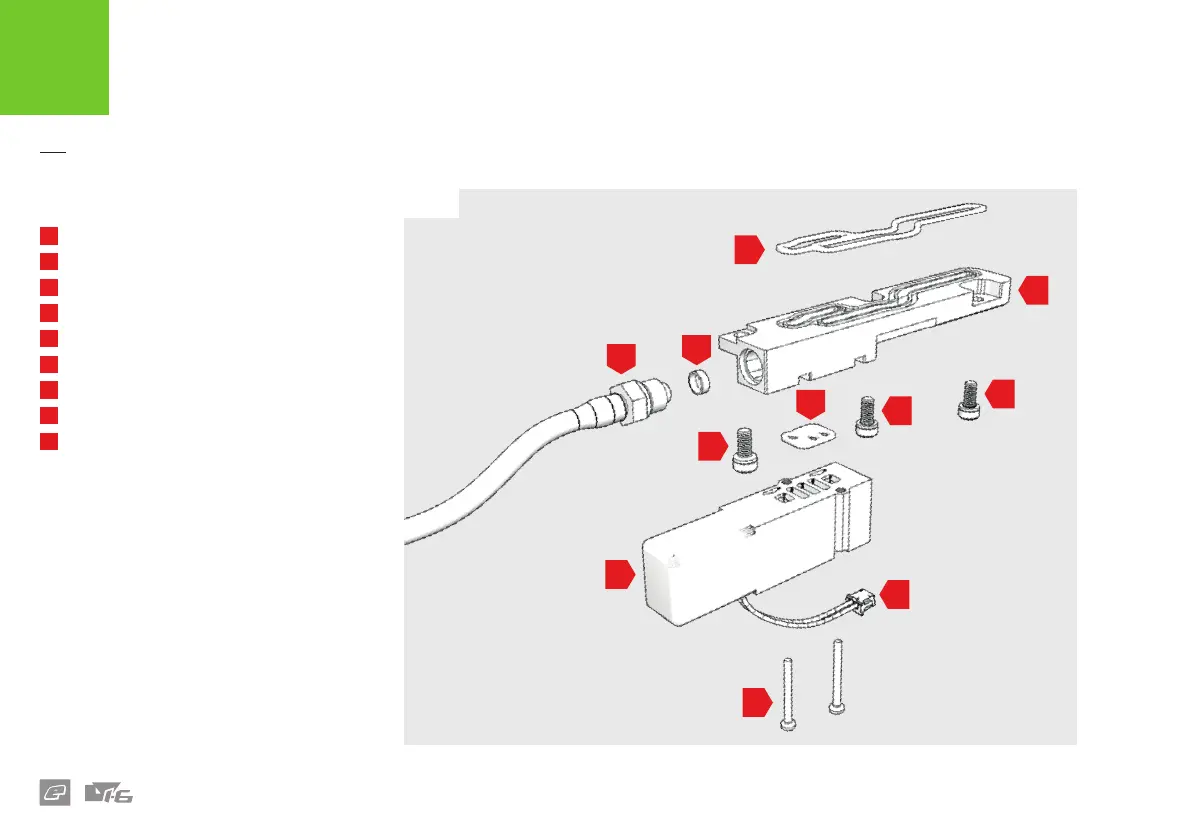

SOLENOID ASSEMBLY
FIG-1
A
Solenoid pilot
B
Solenoid plug
C
M1.7x16 (cross pan-head screws)
D
Solenoid manifold gasket
E
M2.5 x 5 (cap-head socket)
F
Solenoid plate
G
Manifold body gasket
H
Inlet lter
I
Manifold barb and 1/8"
low pressure hose
