#Notice:
ping setting.
Its import to remove the VLAN member port from VLAN 1 group. Or the ports would become overlap-
3. Assign PVID for each port:
Port-1,Port-2 and Port-3 : PVID=2.
Port-4,Port-5 and Port-6 : PVID=3.
Port-7~Port-18: PVID=1.
4. Enable VLAN Tag for specific ports
Link Type: Port-3 (VLAN-2) and Port-6 (VLAN-3).
The Per Port VLAN configuration in Figure 4-34 appears.

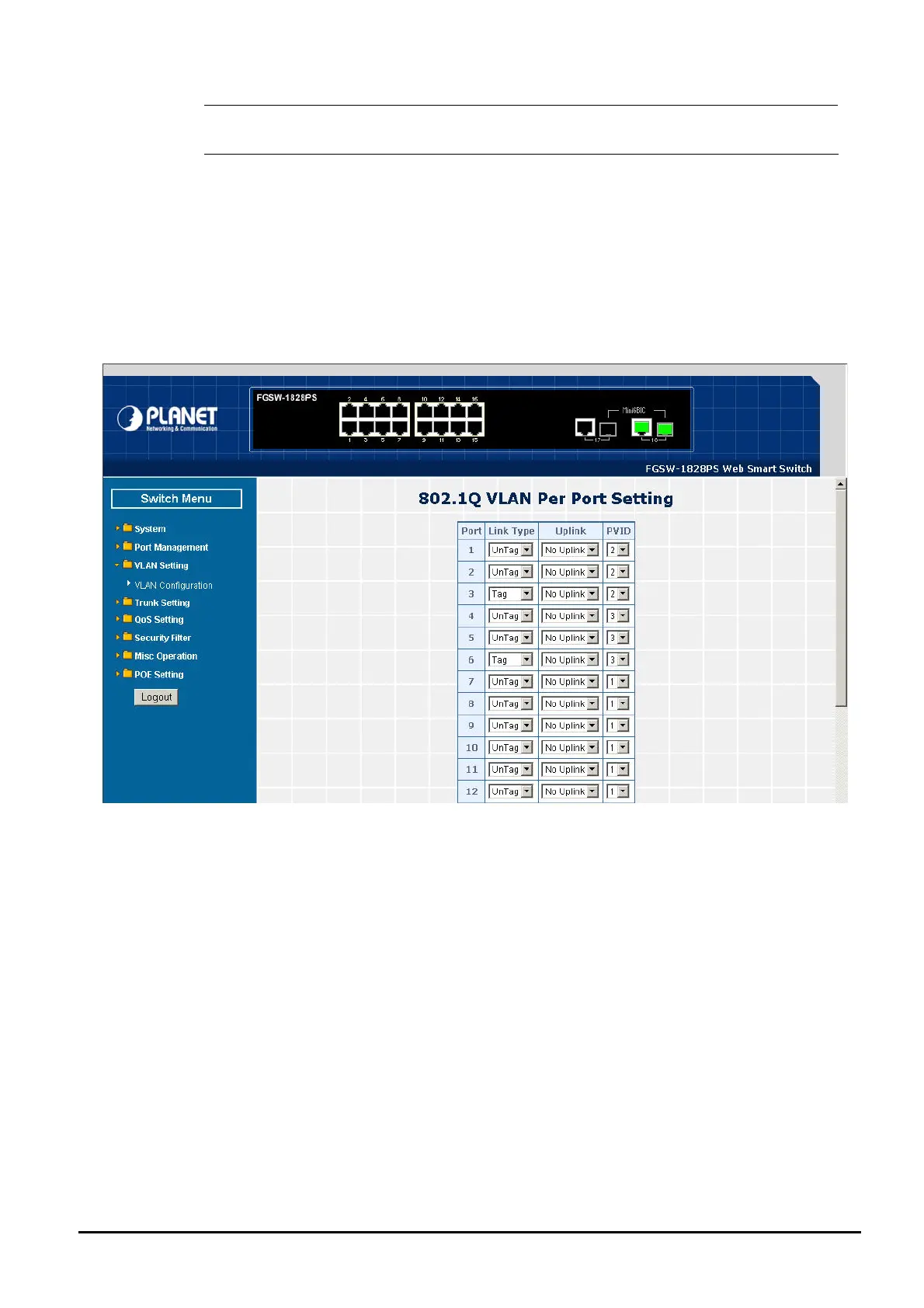

Figure 4-34 Port 1-Port 6 802.1Q VLAN Configuration
