2.2.2 Rack Mounting
To install the PoE+ Managed Injector Hub in a 19-inch standard rack, follow the instructions described below.
Step 1: Place your PoE+ Managed Injector Hub on a hard flat surface, with the front panel positioned towards
your front side.
Step 2: Attach a rack-mount bracket to each side of the PoE+ Managed Injector Hub with supplied screws
attached to the package. Figure 2-2-1 shows how to attach brackets to one side of the PoE+ Managed
Injector Hub.

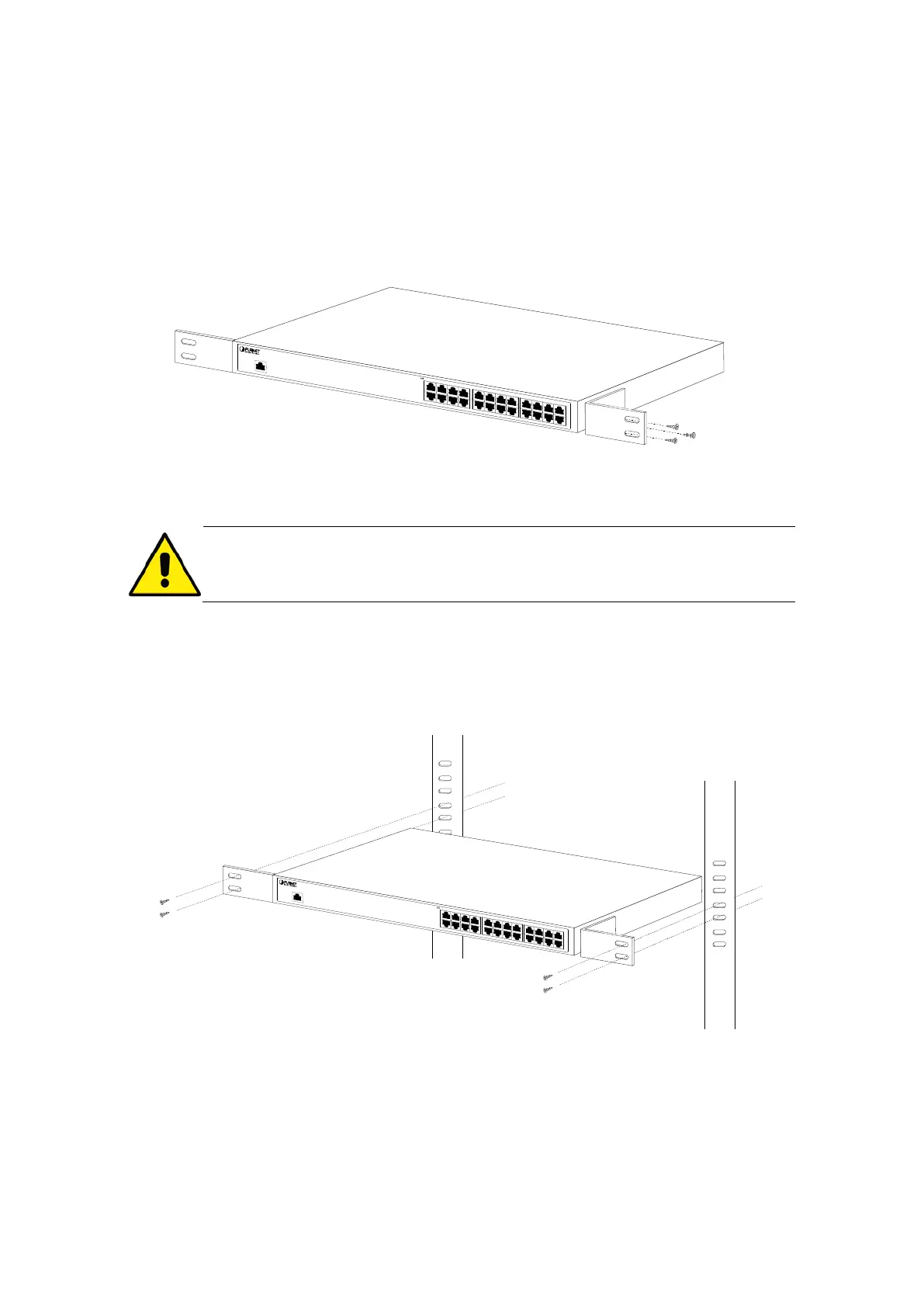

Figure 2-2-1: Brackets attaching to the PoE+ Managed Injector Hub
You must use the screws supplied with the mounting brackets. Damage caused to the
parts by using incorrect screws would invalidate the warranty.
Step 3: Secure the brackets tightly.
Step 4: Follow the same steps to attach the second bracket to the opposite side.
Step 5: After the brackets are attached to the Injector, use suitable screws to securely attach the brackets to
the rack, as shown in Figure 2-2-2.
Figure 2-2-2: Mounting the PoE+ Managed Injector Hub in a Rack
Step 6: Proceed with steps 4 and 5 of session 2.2.1 Desktop Installation to connect the network cabling and
supply power to your PoE+ Managed Injector Hub.
