User Manual of POE-1200G/POE-2400G/HPOE-1200G/HPOE-2400G
- 66 -

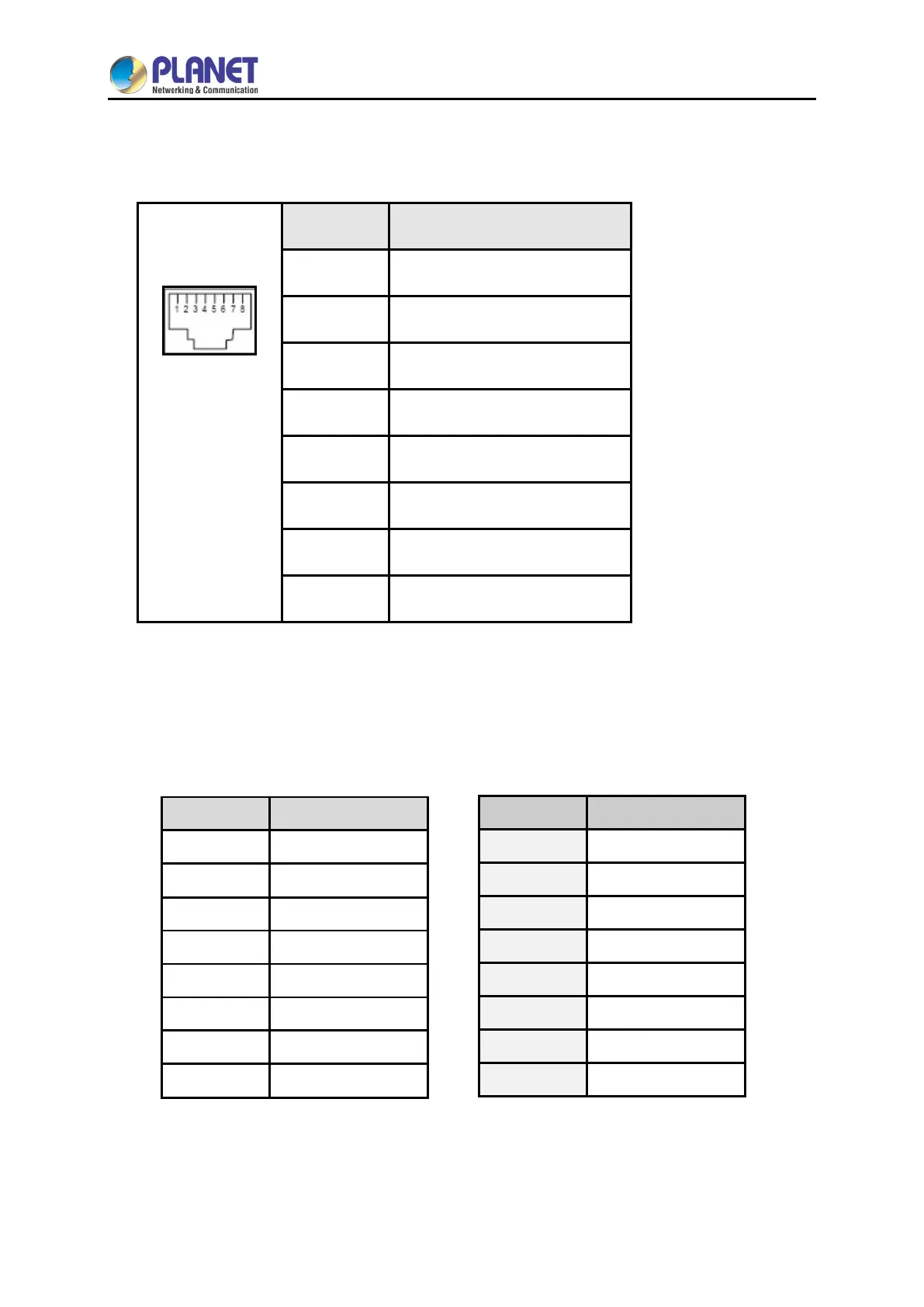

A.3 DATA OUT PoE Injector RJ45 Port Pin Assignments
PIN NO RJ45 SIGNAL ASSIGNMENT
1 Output Transmit Data +
2 Output Transmit Data -
3 Receive Data +
4 Power -
5 Power -
6 Receive Data -
7 Power +
8 Power +
RJ45 pin assignment of non-802.3af / 802.3at standard PD with PD
with Mid-span PoE Mid-span RJ45 assignment
Pin out of Cisco non-802.3af standard
PD
Pin out of POE Mid-span
PIN NO SIGNAL
1 RX+
2 RX-
3 TX+
4 VCC-
5 VCC-
6 TX-
7 VCC+
8 VCC+
PIN NO SIGNAL
1 RX+
2 RX-
3 TX+
4 VCC-
5 VCC-
6 TX-
7 VCC+
8 VCC+
Before you power PD, please check whether the RJ45 connector pin assignment follows IEEE 802.3af /
IEEE 802.3at standard; otherwise, you may need to change one of the RJ45 connector pin
assignments, which is attached with the UTP cable.
