RTU Slave Mode
This function allows the users to use Modbus TCP master device and Modbus RTU device to achieve communication. The
operation mode of the Industrial Modbus Gateway is set to RTU Slave.
Step 1: Choose” RTU Slave” in Channel Type.
Step 2: Press the “Modify” button to input the setting parameters.
Step 3: After setup is completed, press the “Affirm” button to take effect.

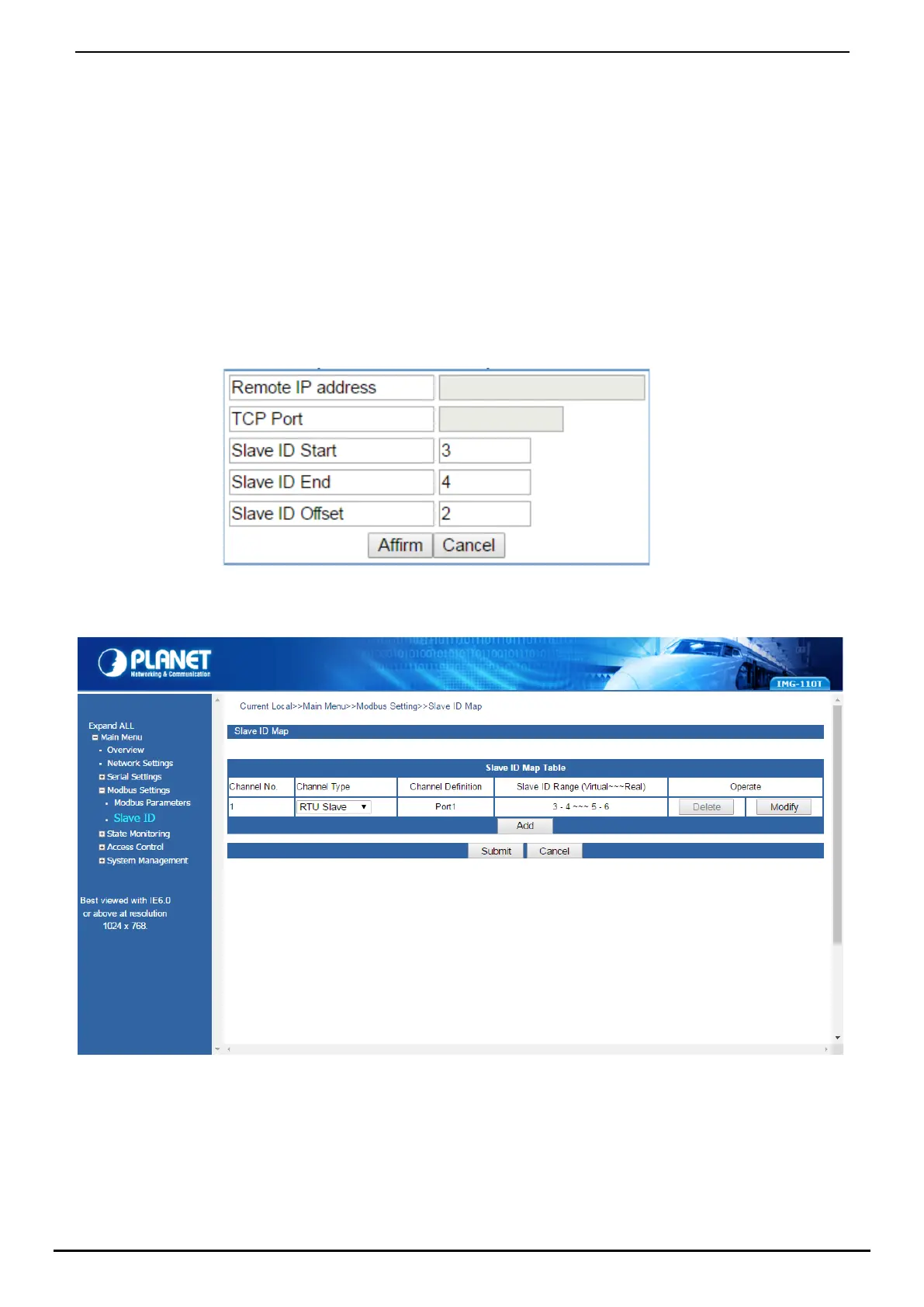

Figure 4-11: Slave ID Parameters Screen
Figure 4-12: Slave ID-RTU Slave Screen
The virtual ID is 3~4. Offset is 2 in Channel No 1.
