ASCII Master Mode
This function allows the users to use Modbus ASCII master device and Modbus TCP device to achieve communication. The
operation mode of the Industrial Modbus Gateway is set to ASCII Master.
Step 1: Choose “ASCII Master” in Channel Type.
Step 2: Press the “Add” button to input the setting parameters.
Step 3: After setup is completed, press the “Affirm” button to take effect.

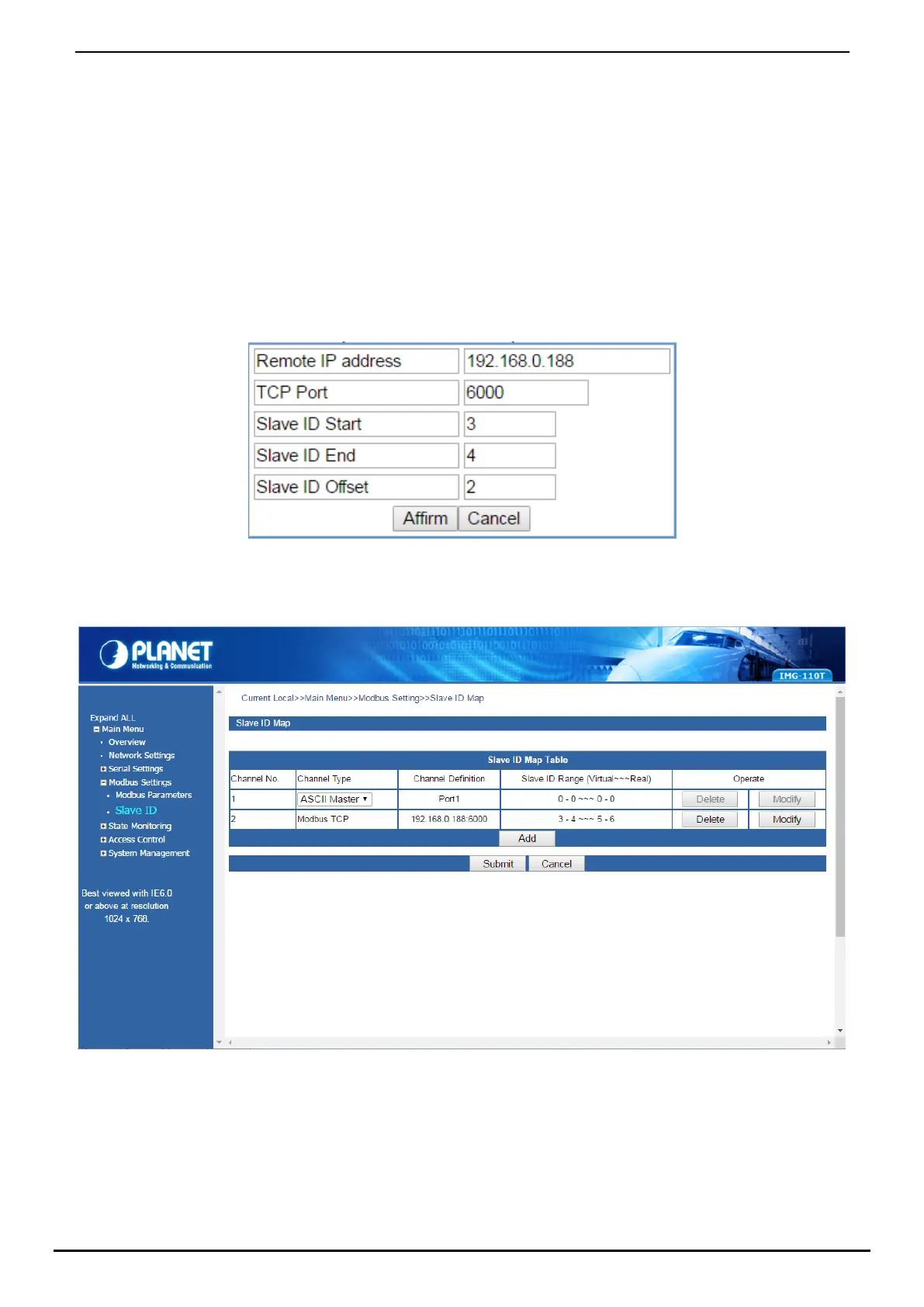

Figure 4-13: Slave ID Parameters Screen
Figure 4-14: Slave ID-ASCII Master Screen
The IP address of the TCP is 192.168.0.188 (For example, the IP address of the local PC), the TCP port number is 6000, and
the virtual ID is 3~4. Offset is 2.
