User’s Manual of IMG-110T
-57-
ASCII Slave Mode
This function allows the users to use Modbus TCP master device and Modbus ASCII device to achieve communication. The
operation mode of the gateway is set to ASCII Slave.
Step 1: Choose “ASCII Slave” in Channel Type.
Step 2: Press the “Modify” button to input the setting parameters.
Step 3: After setup is completed, press the “Affirm” button to take effect.

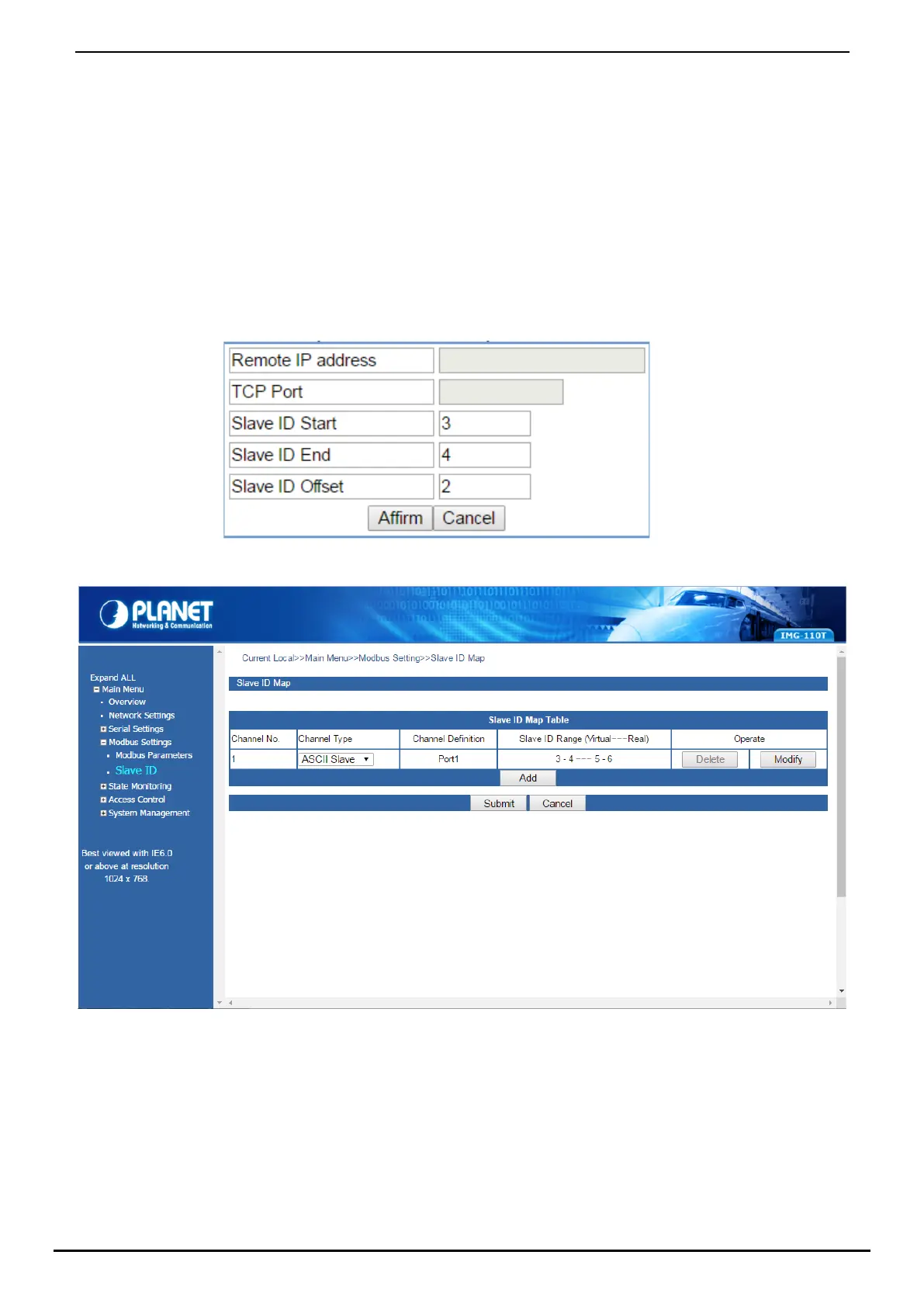

Figure 4-15: Slave ID Parameters Screen
Figure 4-16: Slave ID-ASCII Slave Screen
The virtual ID is 3~4. Offset is 2 in Channel No 1.
