5-6 Configuration Backup

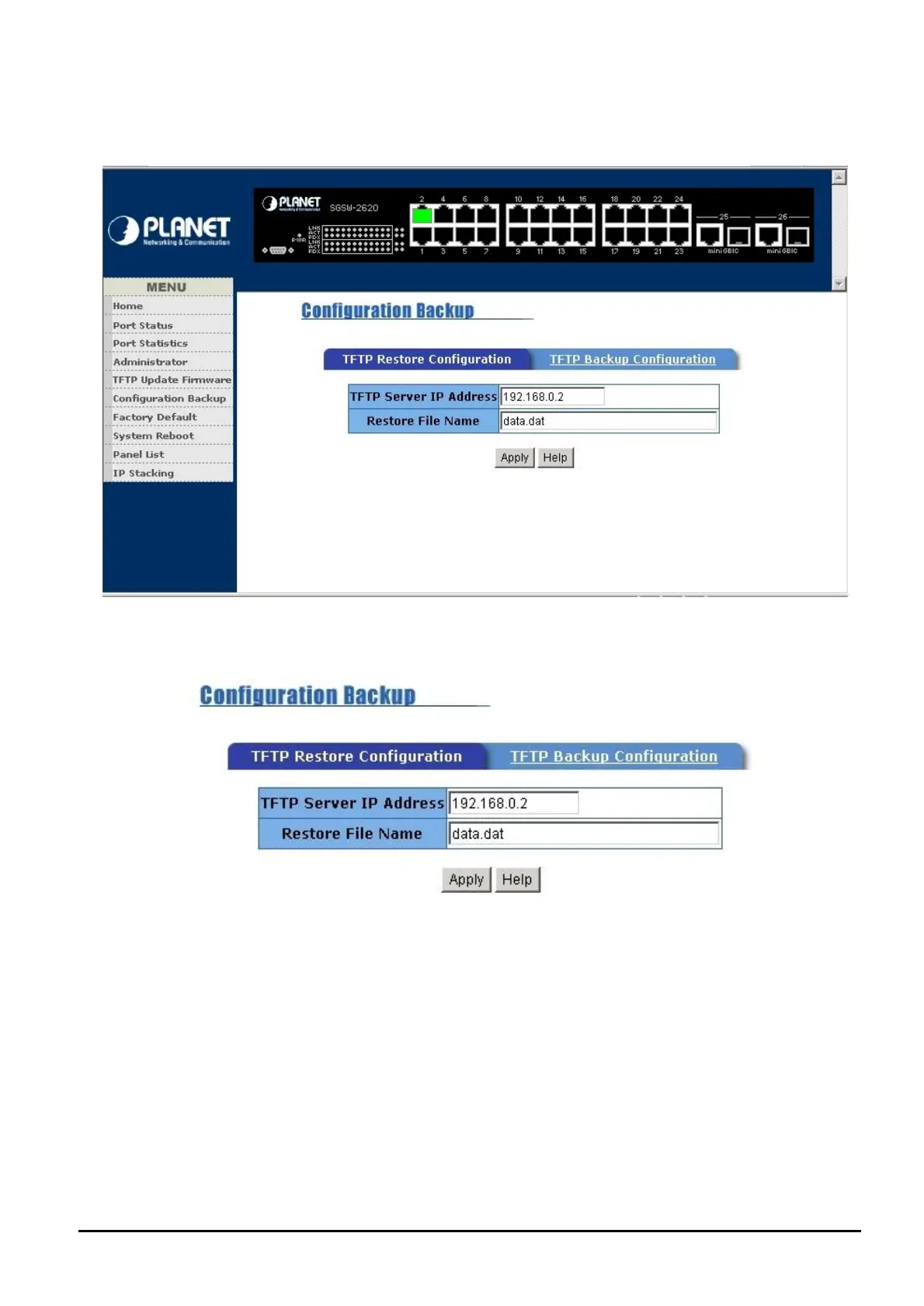

This option allows you to backup the SGSW-2620’s configuration into a file. The screen in Figure 5-54 appears.
Figure 5-54 SGSW-2620 TFTP Configuration Web Page screen
TFTP Restore Configuration:
Figure 5-55 SGSW-2620 TFTP Restore Configuration Web Page screen
Purpose: allow restore the EEPROM value from this function.
Usage: enter the TFTP Server IP Address and Backup File Name. Click “Apply” button to restore EEPROM
value.
Note: you must put the backup image file (backup by TFTP Backup Configuration) in TFTP server
then download the backup image file to the SGSW-2620.
Please click” Help” button; the following screen in Figure 5-53 appears. Click “Close” to close this screen.
