Planet SGSW-2620 User Manual

- 8 -
2. HARDWARE DESCRIPTION
This product provides three different running speeds – 10Mbps, 100Mbps, and 1000Mbps in the same switch
and automatically distinguish the speed of incoming connection.
This section describes the hardware features of SGSW-2620. For easier management and control of the
Switch, familiarize yourself with its display indicators, and ports. Front panel illustrations in this chapter display
the unit LED indicators. Before connecting any network device to the SGSW-2620, read this chapter carefully.
There are following option module for expansion:
l SFP-Port 1000Base-SX Mini-GBIC module
l SFP-Port 1000Base-LX Mini-GBIC module
2.1 Front Panel
The Front Panel of the SGSW-2620 Ethernet stackable Switch consists of 24x Auto-Sensing 10/100Mbps
Ethernet RJ-45 Ports, two Gigabit Switch ports and 2-SFP Mini-GBIC interfaces and one console port. The
LED Indicators are also located on the front panel of the SGSW-2620.

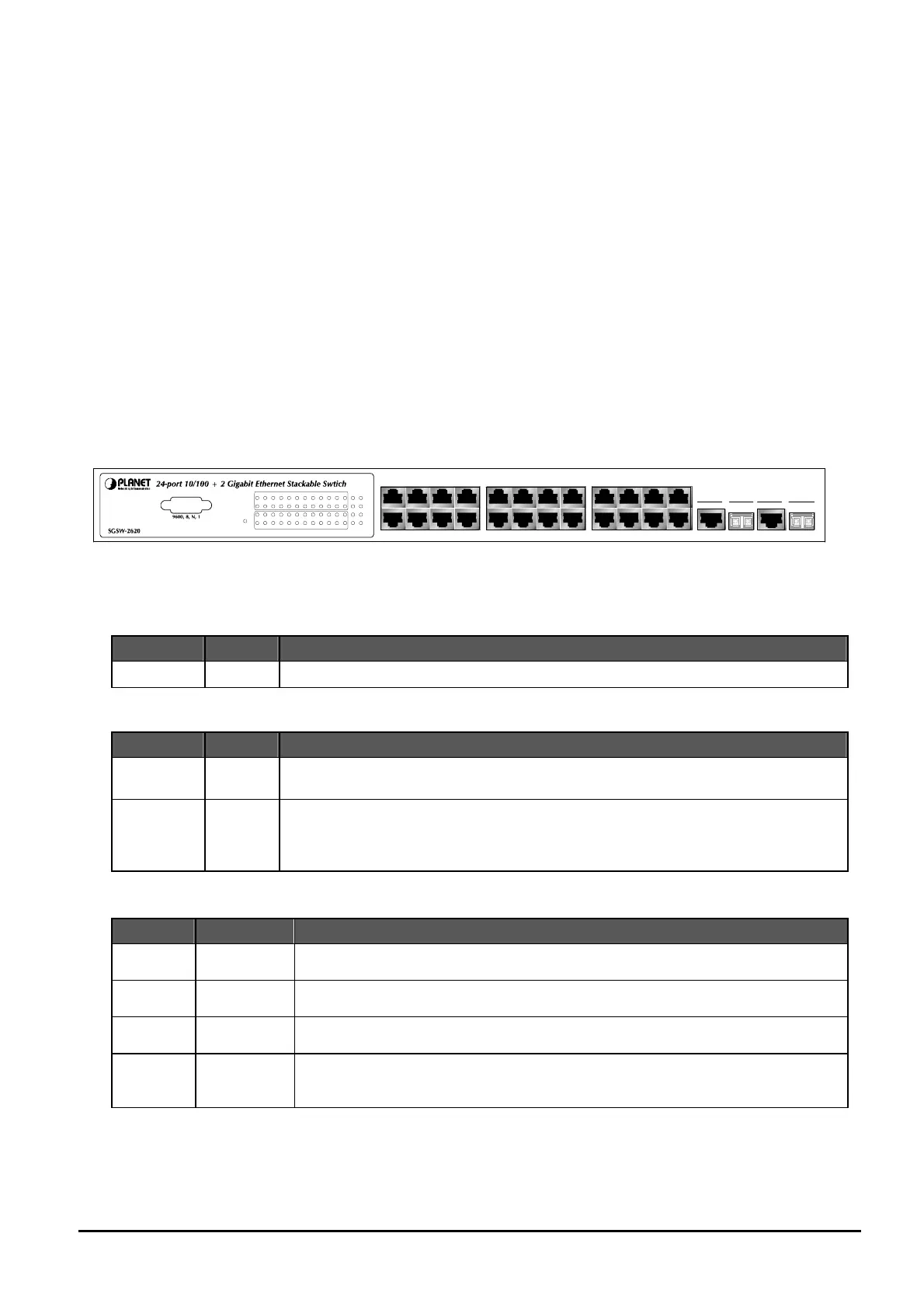

Figure 2-1: SGSW-2620 Switch front panel
2.1.1 LED indicators
System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
Per 10/100Mbps port
LED Color Function
LNK/ACT Green
Lit: indicate the link through that port is successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
FDX Orange
Lit: indicate that the connection made through the corresponding port is running in
Full Duplex mode.
Off: indicate that the connection made through the corresponding port is running in
half duplex mode.
Per 1000Base-T port and SFP-Mini-GBIC interface
LED Color Function
1000 Green
Lit: indicate that the port is operating at 1000Mbps.
Off: indicate that the port is operating at 10Mbps or 100Mbps.
100 Orange
Lit: indicate that the port is operating at 100Mbps.
Off: indicate that the port is operating at 10Mbps or 1000Mbps.
LNK/ACT Green
Lit: indicate the link through that port is successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
FDX/COL Orange
Lit: indicate tha
t the connection made through the corresponding port is running in
full Duplex mode.
Blink: indicate that the connection is experiencing collisions.
Mini GBIC
2625
Mini GBIC
24222018
23211917
16141210
1513119
8642
7531
PWR
FDX/
COL
LNK/
ACT
100
LNK/
ACT
100
LNK/
ACT
1000
100
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
252624
