5-2 Port Status
This section provides detail status of each port from SGSW-2620. The screen in Figure 5-3 appears and Table
5-1 describes the port status object of switch.

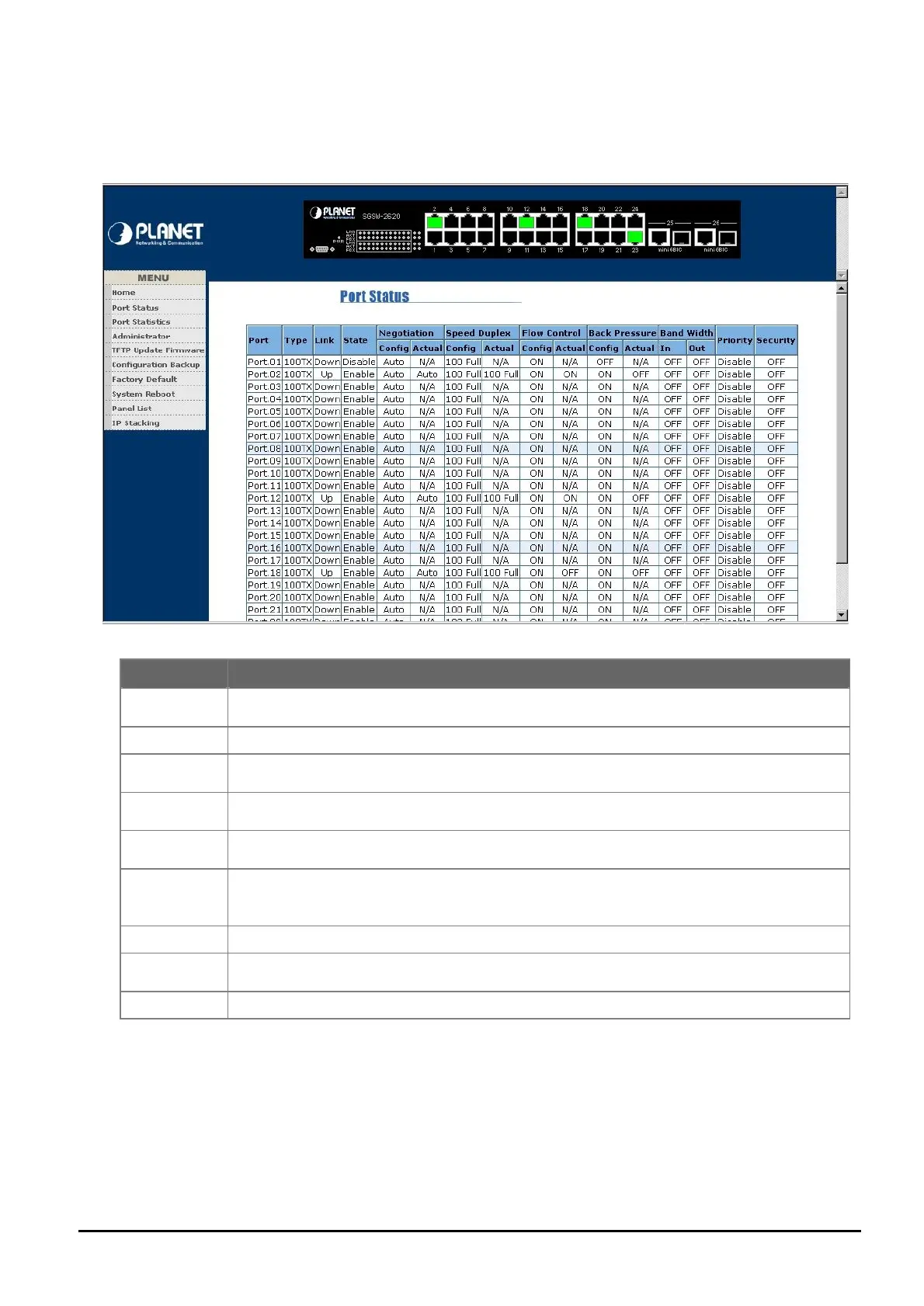

Figure 5-3 SGSW-2620 Port Status Web Page screen
Table 5-1 Descriptions of the Port Status screen Objects
Please also click the port on the Switch figure on the top of web screen, then you will see the per port in-
formation that shown as below.
Description
Link
The state of the link, indicating a valid link partner device. "Up" means a device is suc-
cessful connected to the port. “Down” means no device is connected.
State
Display the state of disable or enable on each port of SGSW-2620.
Negotiation
Auto-negotiation state of each port on SGSW-2620. “Config” means the mode that
user configured. “Actual” means the current mode on each port.
Speed Duplex
Display the speed state of each port on SGSW-2620. “Config” means the duplex mode
that user configured. “Actual” means the current duplex mode on each port.
Flow Control
Display the flow control state of each port on SGSW-2620. “Config” means the mode
that user configured. “Actual” means the current mode on each port.
Back Pressure
Display the back pressure status of each port on SGSW-2620. “Config” means the
duplex mode that user configured. “Actual” means the current duplex mode on each
port.
Bandwidth
Display the incoming and outgoing bandwidth of each port on SGSW-2620.
Priority
Display the priority status of each port on SGSW-2620, the status are “Disable”,”
Low” and “High”.
Security
Display the security state is “disable” or “enable” on each port of SGSW-2620
