Planet SGSW-2620 User Manual

- 104 -
104
After setup completed, please click “Apply” button to take effect.
Please click” Help” button; the following screen in Figure 5-49 appears. Click “Close” to close this screen.
5-5 TFTP Update Firmware
The following menu options provide some system control functions to allow user to update latest firmware and
remotely reboot SGSW-2620 system. The screen in Figure 5-52 appears.

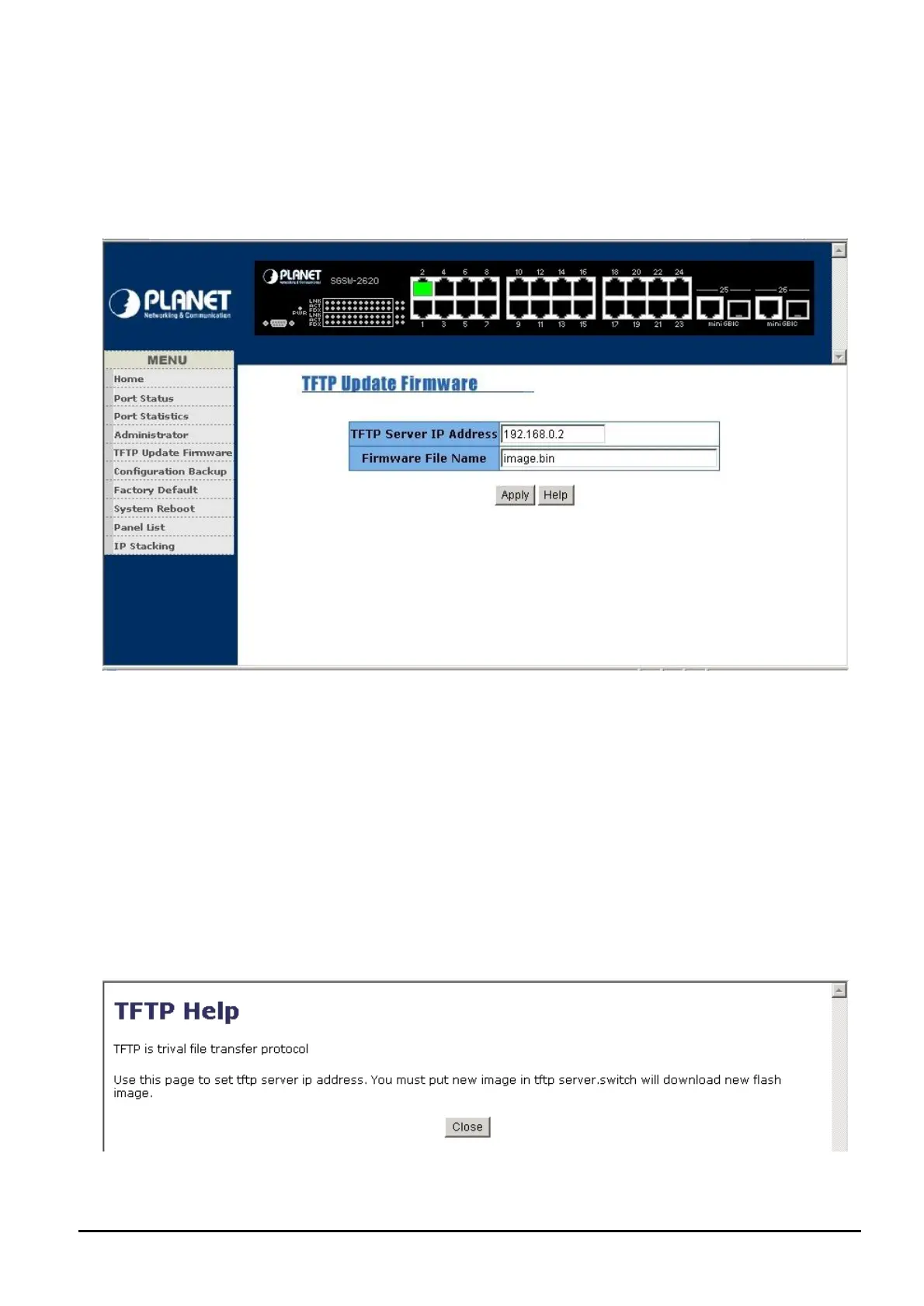

Figure 5-52 SGSW-2620 TFTP Update Firmware Web Page screen
Firmware update requirements:
1. The latest firmware version of SGSW-2620.
2. SGSW-2620.
3. A TFTP server
Firmware update procedure:
1. Install TFTP server in your PC.
2. Download the firmware file and put the file to the TFTP download directory.
3. Enter the IP address of PC with TFTP server and the firmware name.
4. Click “Apply” to update the firmware.
Please click” Help” button; the following screen in Figure 5-53 appears.
Figure 5-53 SGSW-2620 TFTP Help Web Page screen
Click “Close” to close this screen.
