Planet SGSW-2620 User Manual

- 106 -
106
TFTP Backup Configuration:

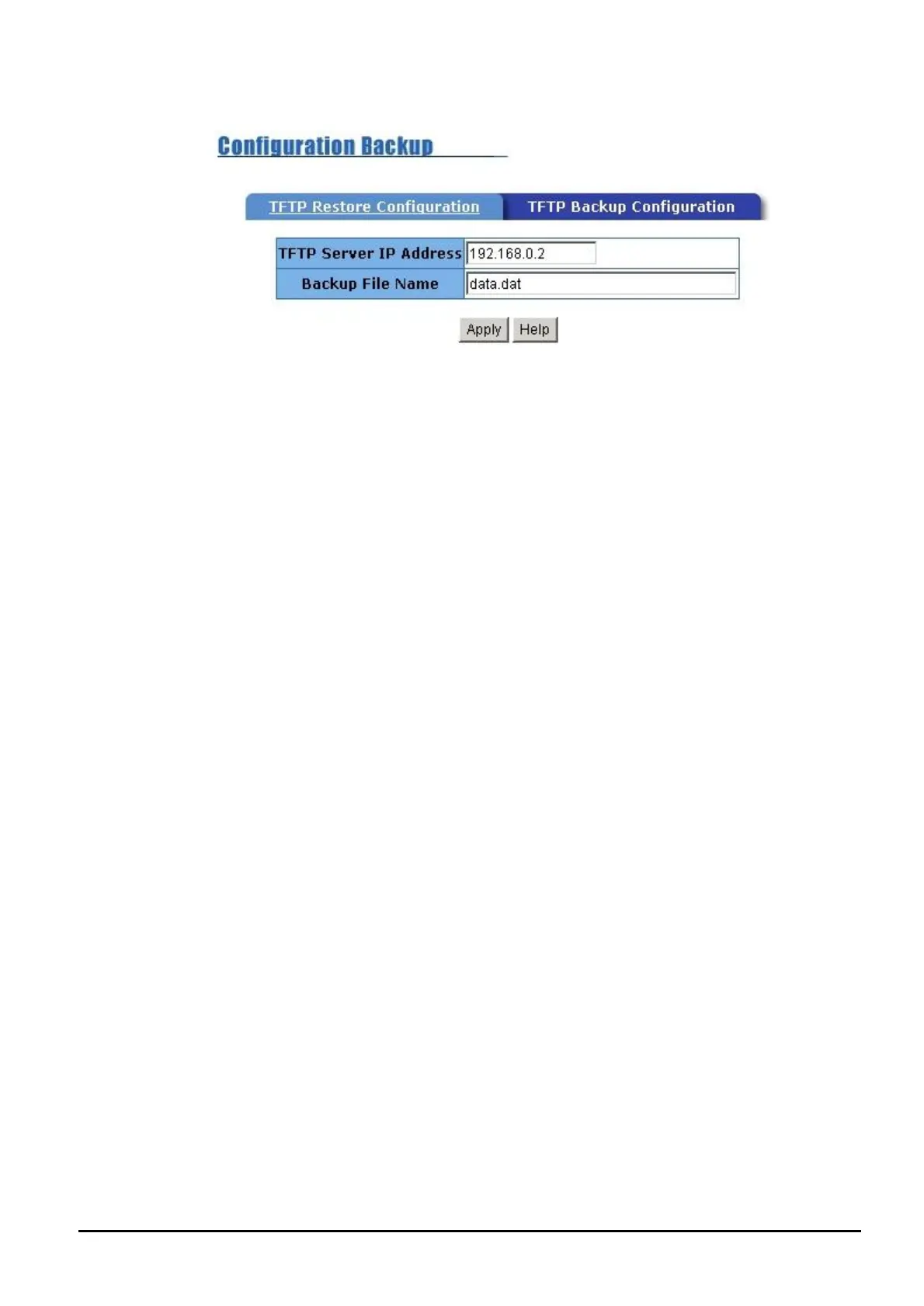

Figure 5-56 SGSW-2620 TFTP Backup Configuration Web Page screen
Purpose: allow user save the EEPROM value from this function.
Usage: Enter the TFTP Server IP Address and Backup File Name.
Click “Apply” button to save current EEPROM value.
Please click” Help” button; the following screen in Figure 5-53 appears. Click “Close” to close this screen.
5-7 Factory Default
This function provides reset the SGSW-2620 to factory default mode. The screen in Figure 5-57 appears.

Planet SGSW-2620 Specifications

General

Brand	Planet
Model	SGSW-2620
Category	Network Router
Language	English
