- 110 -
Group ID (0...65535): Assign a group ID for stacking group. The switches in the same stacking group have
same group ID.
Stacking Mode: select the stacking mode from drag down list.
Disable: it means the switch doesn’t belong to any stacking group or stacking function disable.
Master: it means the switch is the leader (Master) in the stacking group. The master switch can control all the
slave switches in stacking group.
Slave: it means the switch is a slave switch of the stacking group. To configure the slave switch that must
access by the master switch.
System Information: allow input the system information.
After setup completed, please click “Apply” button to take effect. When the master switch has configured, the
following screen in Figure 5-61 appears.

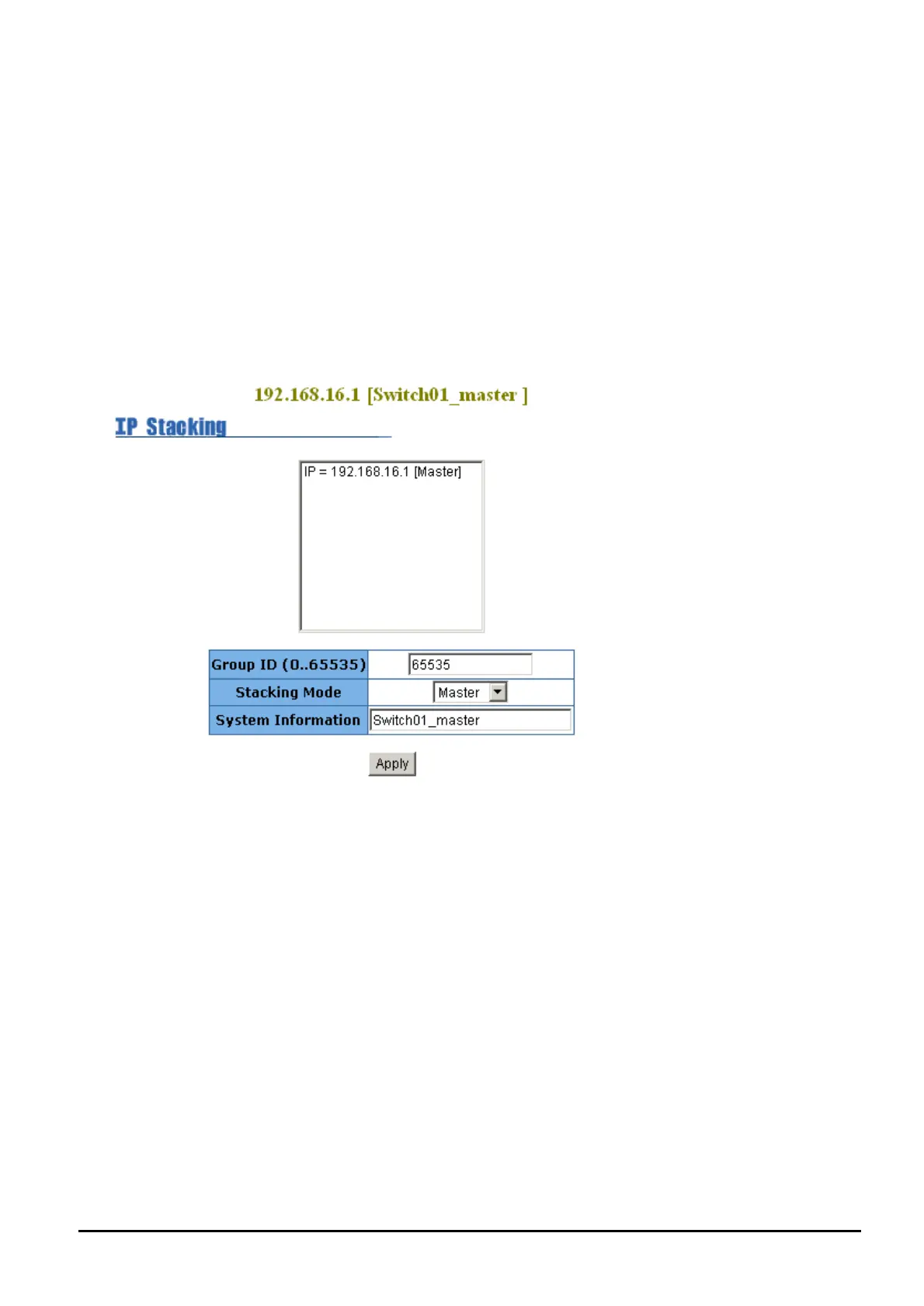

Figure 5-61 SGSW-2620 IP Stacking Web Page screen
After you have configured the stacking function, use Cat. 5 cable to connect each SGSW-2620 in the stacking
group. And wait for few minutes for the master switch to communicate and collect the data from the slave
switches.
Connect to the master switch through the Web. You will see the following screen display.
Click any function in the menu bar of the master switch to configure the switch in the stacking group. The IP of
stacking group list that display the IP and the switch name. The screen in Figure 5-62 appears.
