Planet SGSW-2620 User Manual

- 26 -

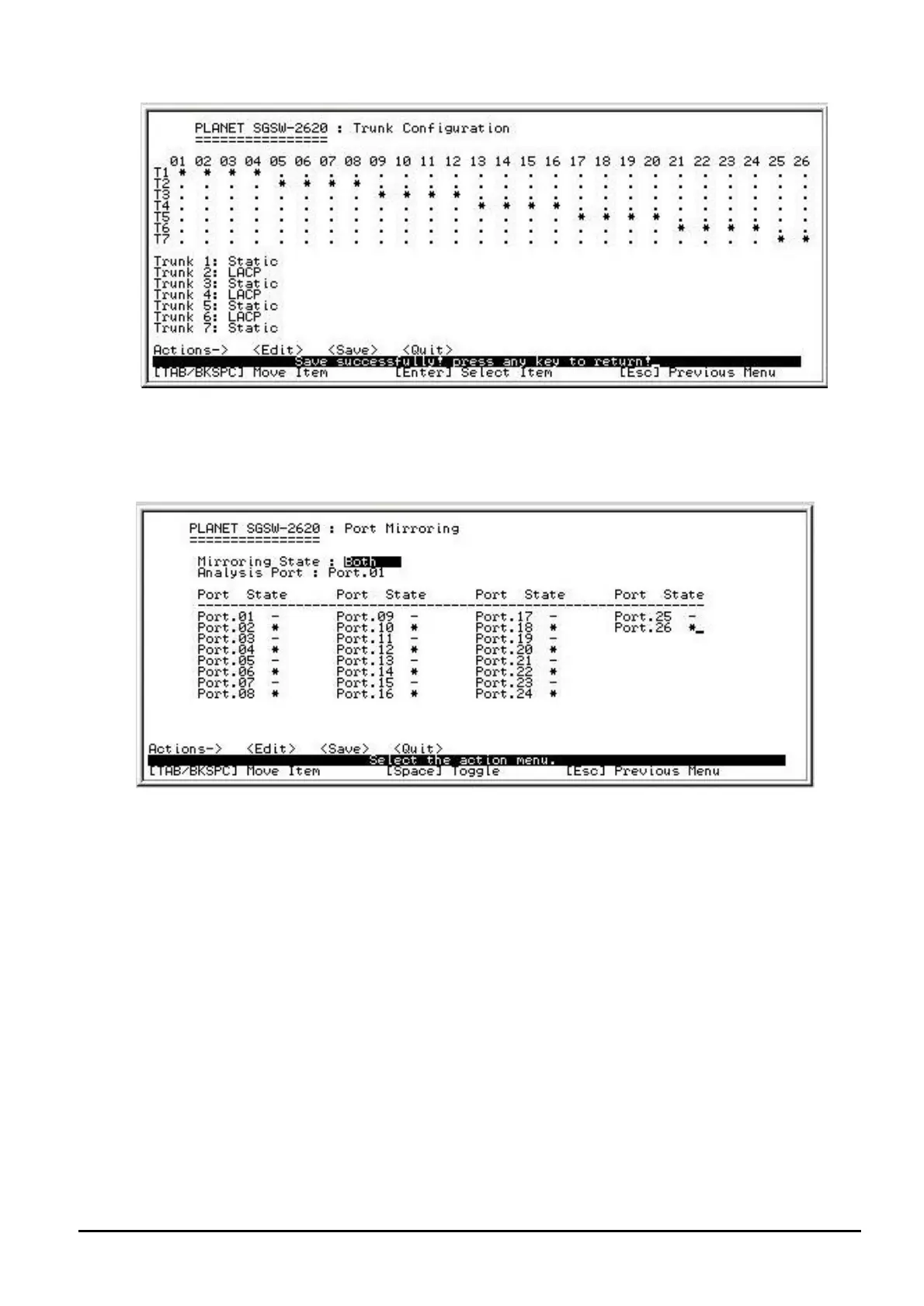

Figure 4-23 Trunk Configuration save successfully screen
4.4.2.4 Port Mirroring Configuration
From the Switch Configuration sub-screen (see Figure 4-9), highlight Port Mirroring
Configuration and press enter. The Port Mirroring Configuration screen in Figure 4-24 appears.
Figure 4-24 Port Mirroring Configuration screen
Press ”Edit” to configure the Port Mirroring function, the descriptions of items from port mirroring are
shown as below:
Mirroring State: provide RX, TX and Both 3 different Mirroring modes for port Mirroring function.
Analysis Port: allow seeing all monitor port traffic; you can connect sniffer port to LAN Explorer, Ses-
sion Wall, Sniffer Pro or Netxray.
Monitor port: choose one specific port for monitor the traffic of RX and TX or both (RX and TX) of
Analysis port
After setup completed, press “ESC” and choose “Save” to save the current configuration. The fol-
lowing screen with “Save successfully! Press any key to return” in Figure 4-25 appears.
