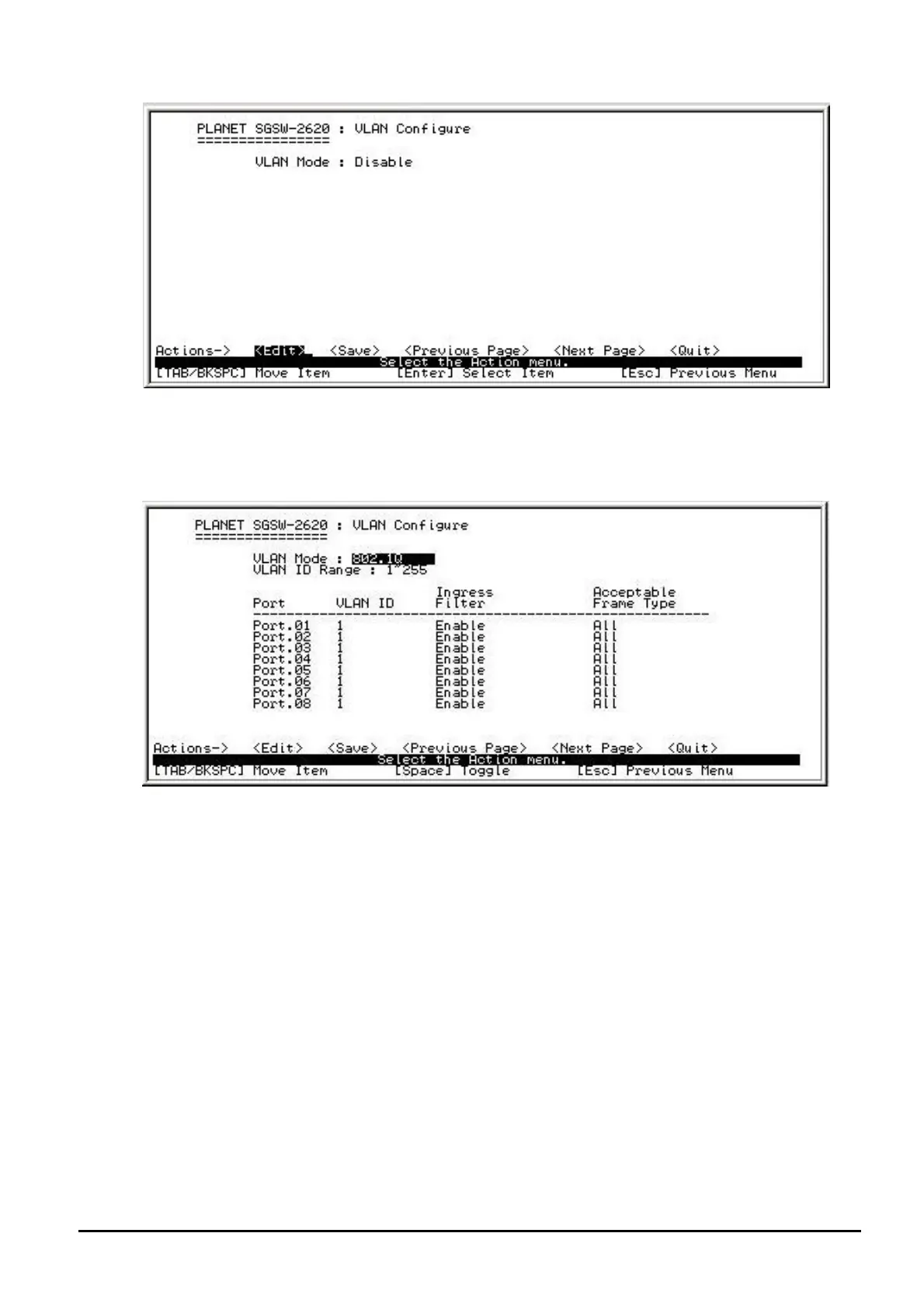

Figure 4-27 VLAN Configure screen
Press “Edit” for enable VLAN function and select the 2 VLAN modes through the space bar. The IEEE
802.1Q VLAN screen in Figure 4-28 appears. The SGSW-2620 supports up to 256 VLAN groups and
maximum PVID is 4094. The setting sequence is choose the VLAN ID Range first then assign the
corresponding Port VLAN ID on each port.
.
Figure 4-28 IEEE 802.1Q VLAN Configure screen
Press space bar switch to various VLAN ID Range in VLAN ID Range. The available VLAN ID Range are
shown as below:
1. 1~255.
2. 256~511.
3. 512~767.
4. 768~1023.
5. 1024~1279.
6. 1280~1535.
7. 1536~1791.
8. 1792~2047.
9. 2048~2303.
To Next Page
