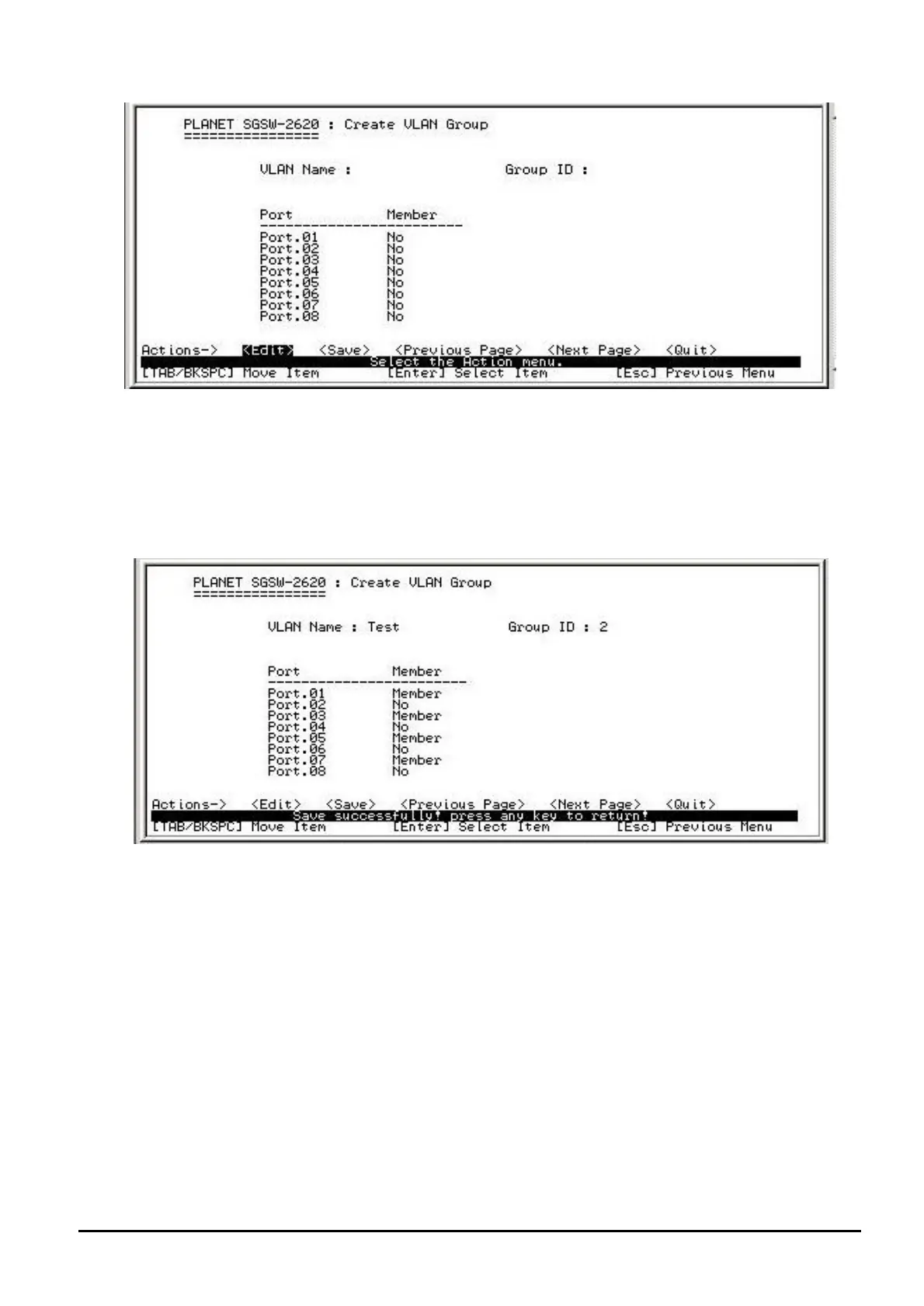

Figure 4-36 Add a Port-based VLAN Group screen
Create a port-based VLAN group procedure:
1. Press “Edit” to input the VLAN name and Group ID.
2. Under Port-based VLAN mode. Set Member or no (not belong to any VLAN group) of each port.
3. After setup completed, press “ESC” and choose “Save” to save the current configuration. The fol-
lowing screen in Figure 4-37 appears.
Figure 4-37 Port-based VLAN Configure save successfully screen
Press any key for return to previous menu.
@Notice: If need to enable the VLAN trunk function, please configure the trunk ports in the same VLAN
group.
4.4.2.5.3 Edit / Delete VLAN Group
Allow editing and deleting the existence VLAN group. The screen in Figure 4-38 appears.
Edit and delete existence VLAN group procedure:
1. Press “Edit” or “Delete” to edit or delete the existence VLAN group.
2. Choose the VLAN group that want to edit or delete, then press “enter”.
3. In “Edit” function, it allow to change or remove the member port from existence port-based /
IEEE 802.1Q VLAN group. The screen in Figure 4-39 appears.
4. In “Delete” function, it allow to delete the existence port-based / IEEE 802.1Q VLAN group
To Next Page
