Group Sorted Mode setting procedure:
1. Press “Edit” to choose the Name or VLAN ID through the space bar.
2. After setup completed, press “ESC” and choose “Save” to save the current configuration. The
following screen in Figure 4-44 appears.

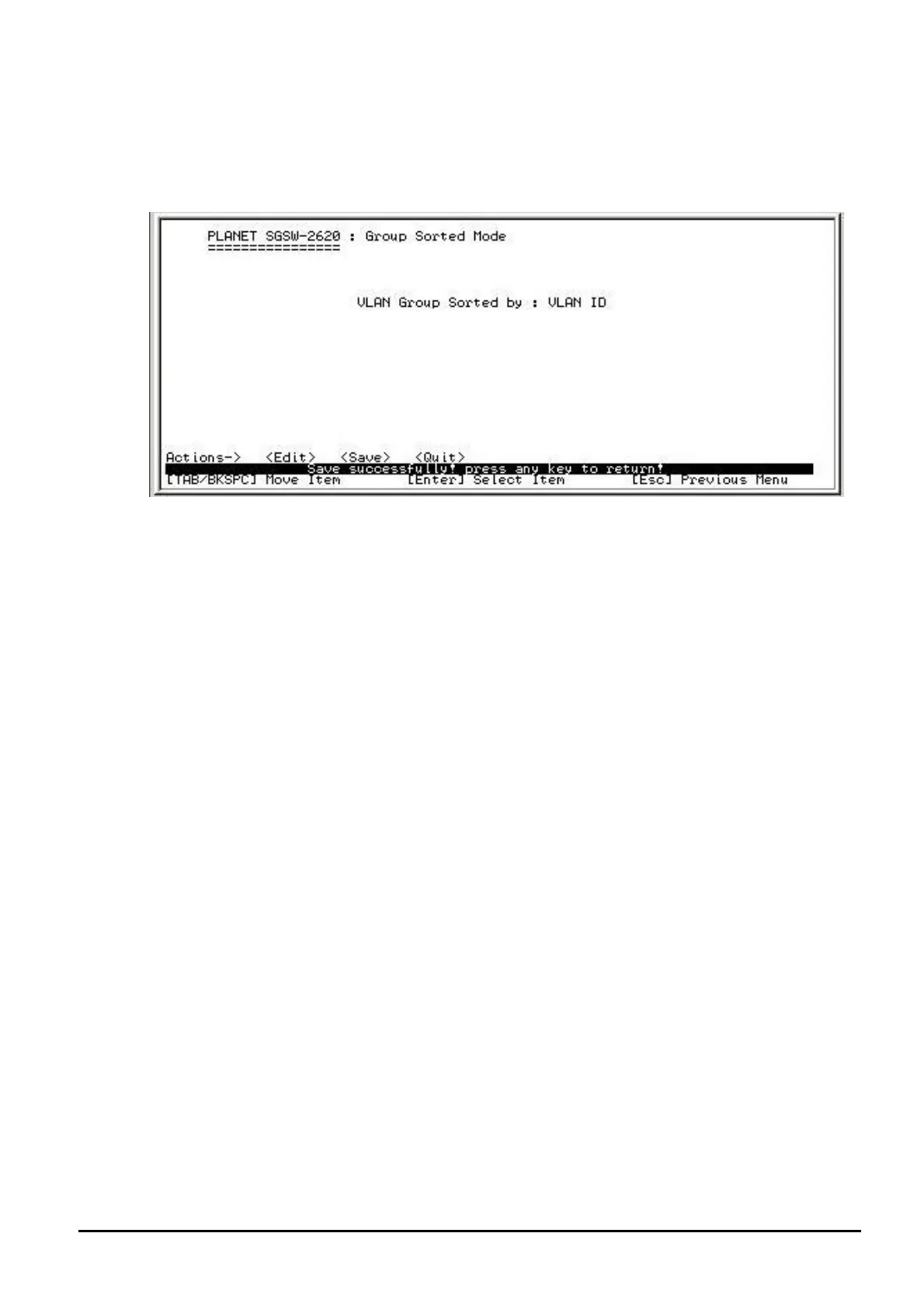

Figure 4-44 Group Sorted Mode save successfully screen
Press any key for return to previous menu.
4.4.2.5.5 Previous Menu
Return to Switch Configuration sub-screen.
4.4.2.6 Priority Configuration
Displays the options available for assigning High and Low priority to each port of SGSW-2620.
From the Switch Configuration sub-screen (see Figure 4-9), highlight Priority Configuration and
press enter. The Priority Configuration screen in Figure 4-45 appears. The description of available items
from Qos mode are shown as below:
Qos Mode: select the mode to process incoming packets.
First Come First Service: process the packet that is coming first.
All High Before low: the packet priority is high will be process before the packet priority is low.
Weight Round Ration 2:1: process 2 high priority packet first, the process 1 low priority packet.
Weight Round Ration 3:1: process 3 high priority packet first, the process 1 low priority packet.
Weight Round Ration 4:1: process 4 high priority packet first, the process 1 low priority packet.
Weight Round Ration 5:1: process 5 high priority packet first, the process 1 low priority packet.
Weight Round Ration 6:1: process 6 high priority packet first, the process 1 low priority packet.
Weight Round Ration 7:1: process 7 high priority packet first, the process 1 low priority packet.
To Next Page
