Planet SGSW-2620 User Manual

- 46 -
Community Strings: please refer to chapter 4.4.3.2.2.
Trap Managers: please refer to chapter 4.4.3.2.3.
Previous Menu: please refer to chapter 4.4.3.2.4.
4.4.3.2.1 System Options
Allow inputting the system name, system contact and system location. The SNMP System Options
screen in Figure 4-63 appears.

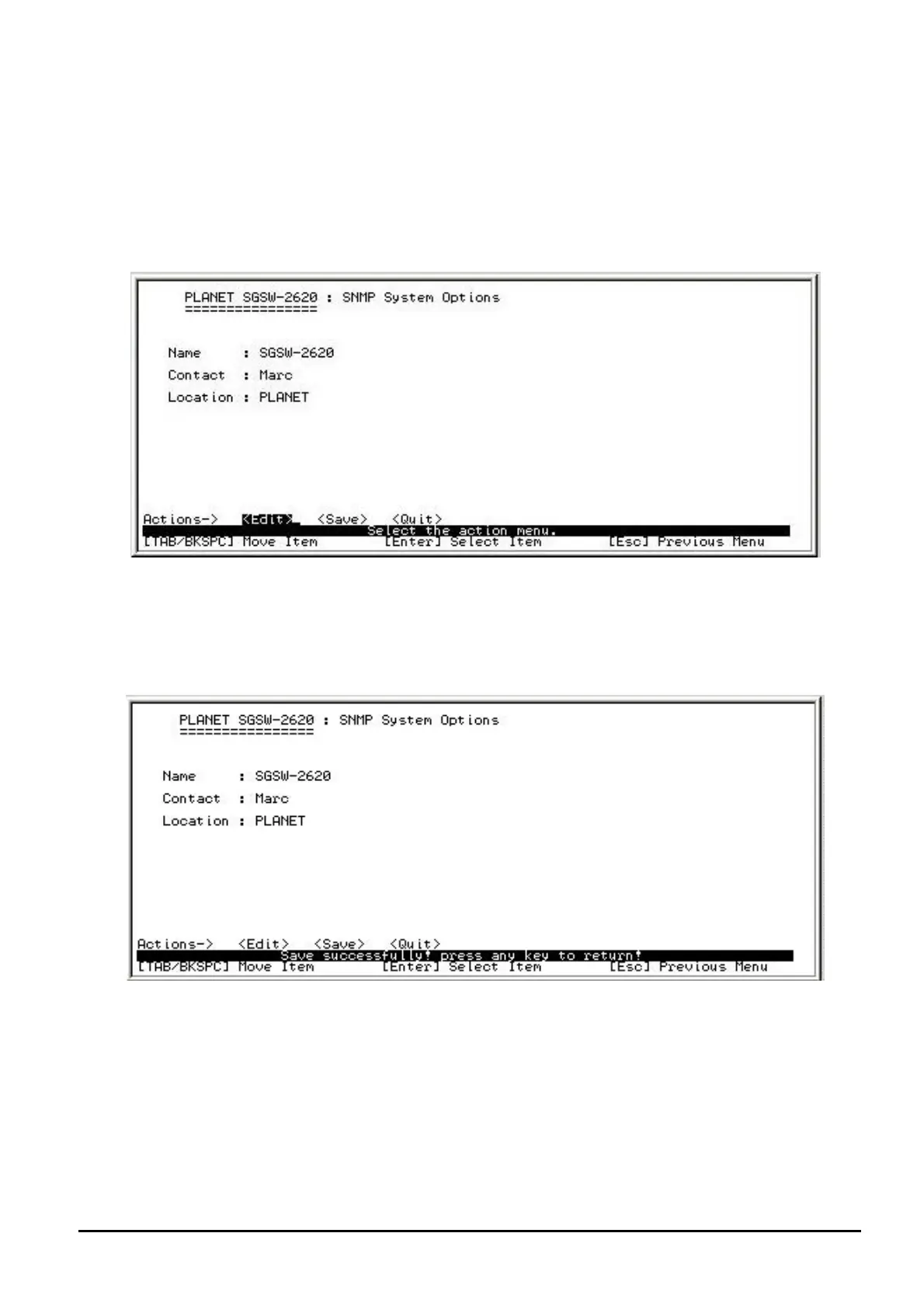

Figure 4-63 SNMP System Options screen
Setup procedure:
1. Press “ Edit” to input the system name, system contact, system location.
2. After setup completed, press” ESC” and choose “Save” to save the current configure. The screen in
Figure 4-64 appears.
Figure 4-64 SNMP System Options save successfully screen
Press any key for return to previous menu.
4.4.3.2.2 Community Strings
Allow adding SNMP community name. The SNMP Community Strings screen in Figure 4-65 appears.
