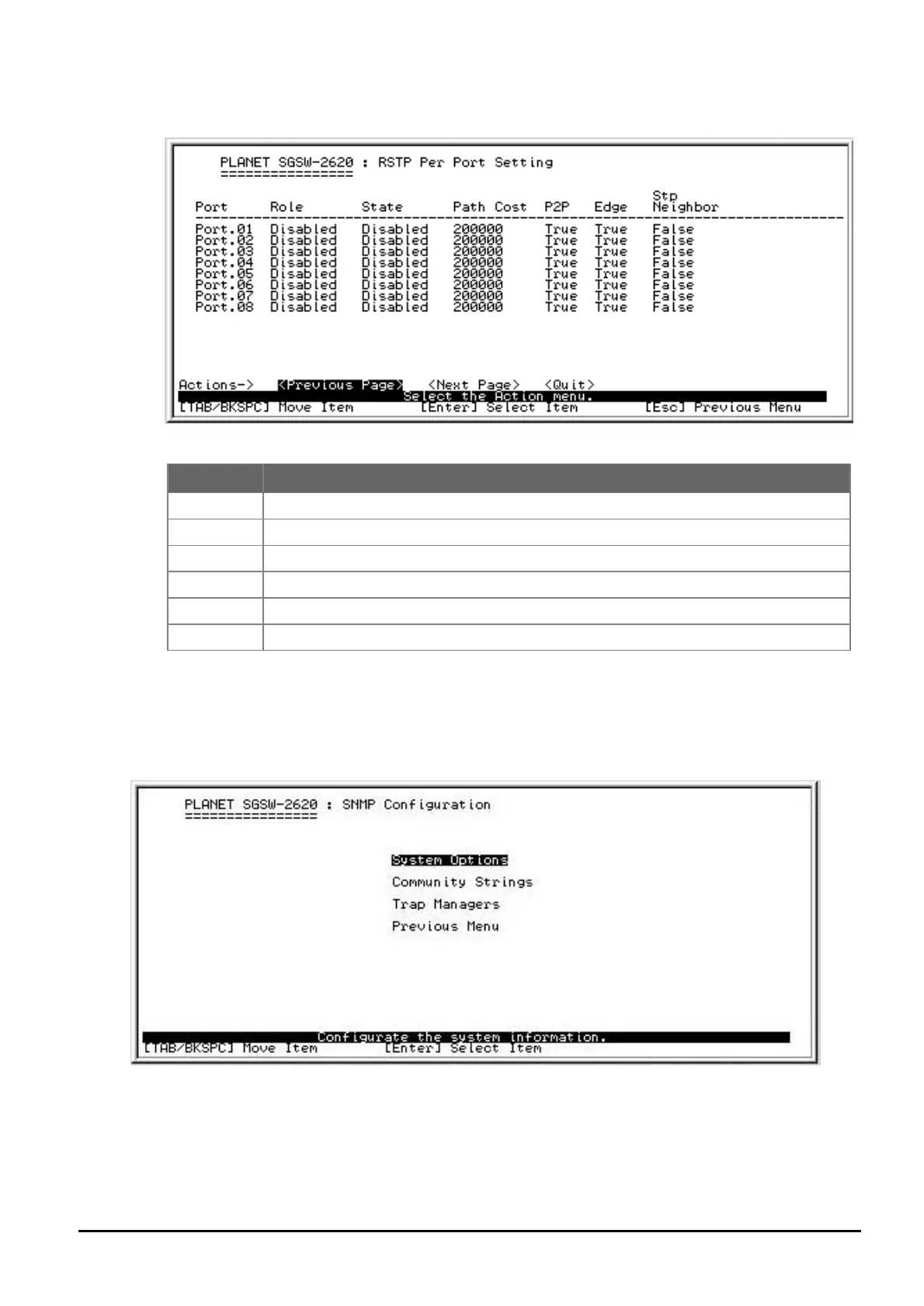

Display the RSTP per port status. The screen in Figure 4-61appears, table 4-4 describes the Per Port
Status
Figure 4-61 RSTP Per Port status screen
Table 4-4 Descriptions of the Per Port Status screen Objects
4.4.3.1.5 Previous Menu
Return to Protocol Related Configuration screen.
4.4.3.2 SNMP
Provide SNMP configuration. The SNMP Configuration screen in Figure 4-62 appears.
Figure 4-62 SNMP configuration screen
This subnet menu contains four items:
System Options: please refer to chapter 4.4.3.2.1.
O
Object Description
Role
Display the port role in the Spanning Tree Protocol.
State
Display the port current status.
Path Cost
Display the port path cost value.
P2P
Display the current status of P2P function.
Edge
Display the port is edge port or non-edge port.
Stp Neighbor
Display the port neighbor is Spanning Tree Protocol or non Spanning Tree protocol.
