Per Port Configuration:
This function allows configuring path cost and priority on each port of SGSW-2620. The screen in Figure 5-38
appears. Table 5-10 describes the Per Port Configuration objects of switch.

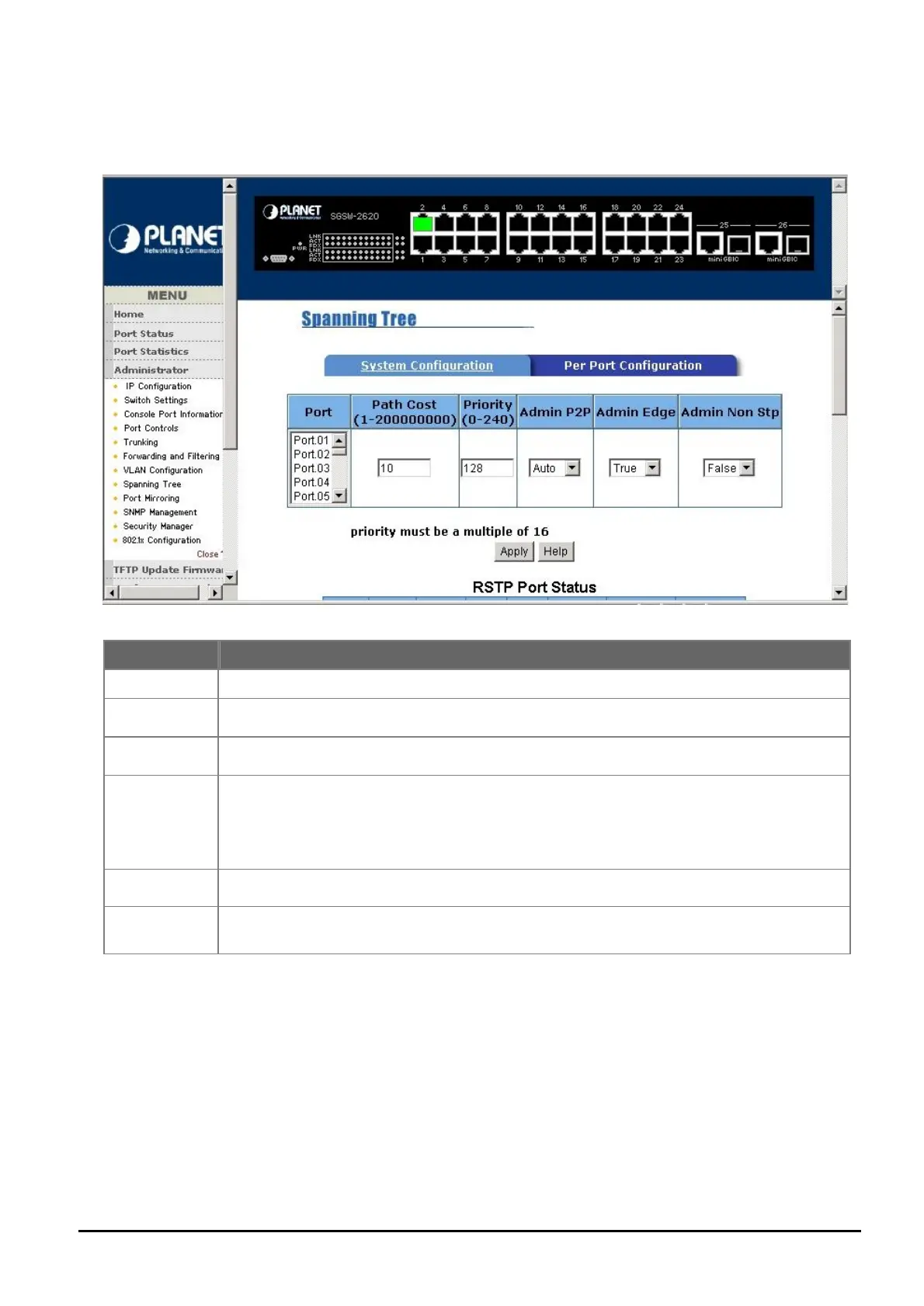

Figure 5-38 SGSW-2620 Spanning Tree Per Port Configuration Web Page screen
Table 5-10 Descriptions of the SGSW-2620 Spanning Tree Per Port Configuration Web Page screen Objects
After setup completed, please click “Apply” button to take effect.
Please click” Help” button; the following screen in Figure 5-39 appears.
Description
Port
Select the port by scroll the list in Port column.
Path Cost
The cost of the path to the other bridge from this transmitting bridge at the specified port.
Enter a number 1 through 200000000.
Priority
Decide which port should be blocked by priority in LAN. Enter a number 0 through 240. The
value of priority must be the multiple of 16.
Admin P2P
Some of the rapid state transactions that are possible within RSTP are dependent upon
whether the port concerned can only be connected to exactly one other b
by a point-to-point LAN segment), or can be connected to two or more b
ridges (i.e. it is served
by a shared medium LAN segment). This function allows the P2P status of the link to be
manipulated administratively. True is P2P enabling. False is P2P disabling.
Admin Edge
The port directly connected to end stations cannot create bridging loop in the network. To
configure the port as an edge port, set the port to “True” status.
Admin Non
Stp
The port includes the STP mathematic calculation. True is not including STP mathematic
calculation. False is including the STP mathematic calculation.
