User’s Manual of WGR-500-4P and WGR-500-4PV
24

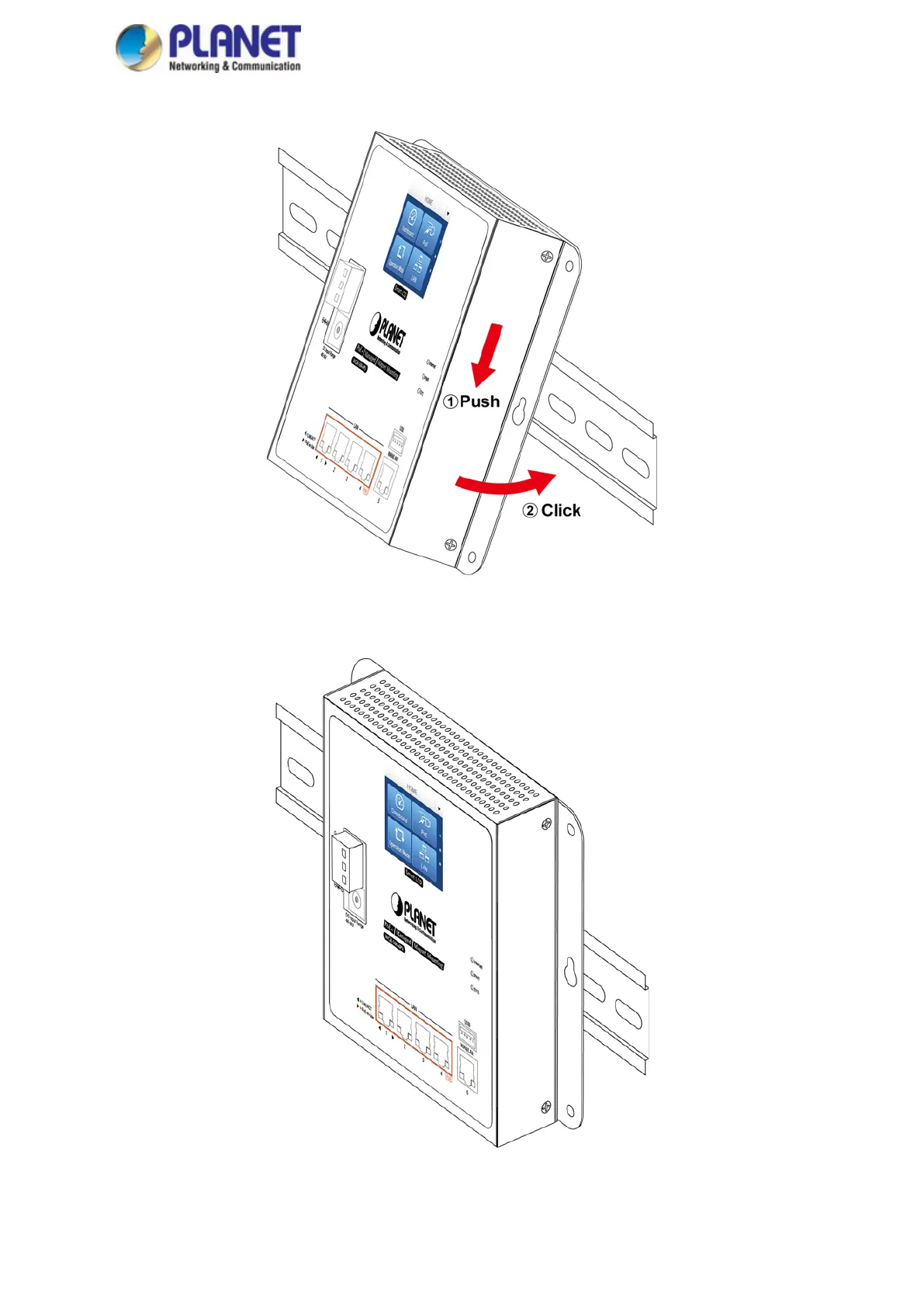

Step 2: Lightly insert the DIN-rail bracket into the track as shown in Figure 2-16.
Figure 2-16: Router is placed on the track
Step 3: Router is placed on the track as shown in Figure 2-17
Figure 2-17: Router is tightly fixed on the track
