4.6.1 Connection Test
The page is allows you to issue ICMP PING packets to troubleshoot IP connectivity issues. After you press “Ping”,
5 ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a
reply. The Page refreshes automatically until responses to all packets are received, or until a timeout occurs. The

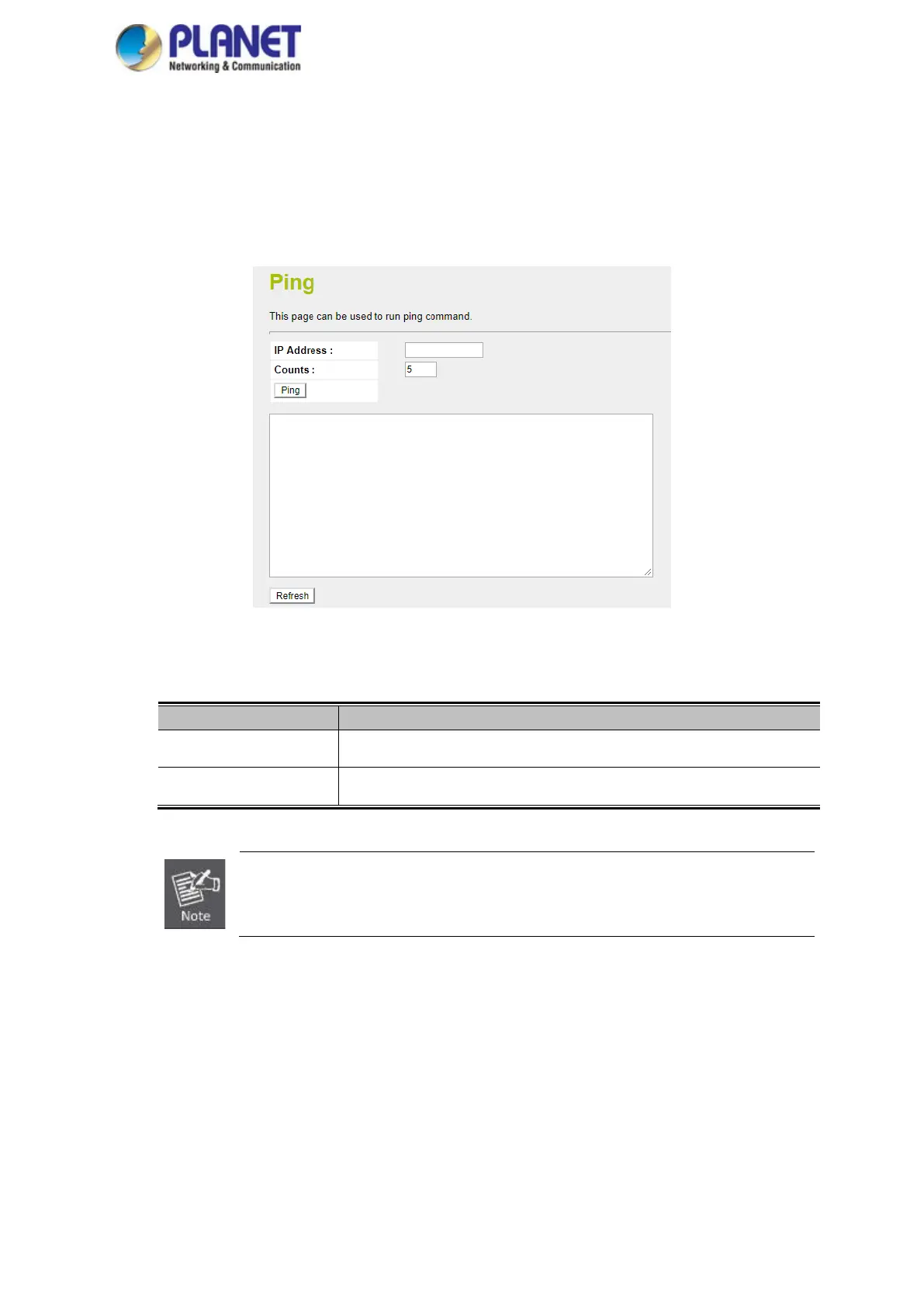

ICMP Ping is shown in Figure 4-53.
Figure 4-53: Ping
Object Description
IP Address The destination IP Address.
Counts The time of ping.
Be sure the target IP address is within the same network subnet of the industrial wall-
Gigabit router, or you have to set up the correct gateway IP address.
